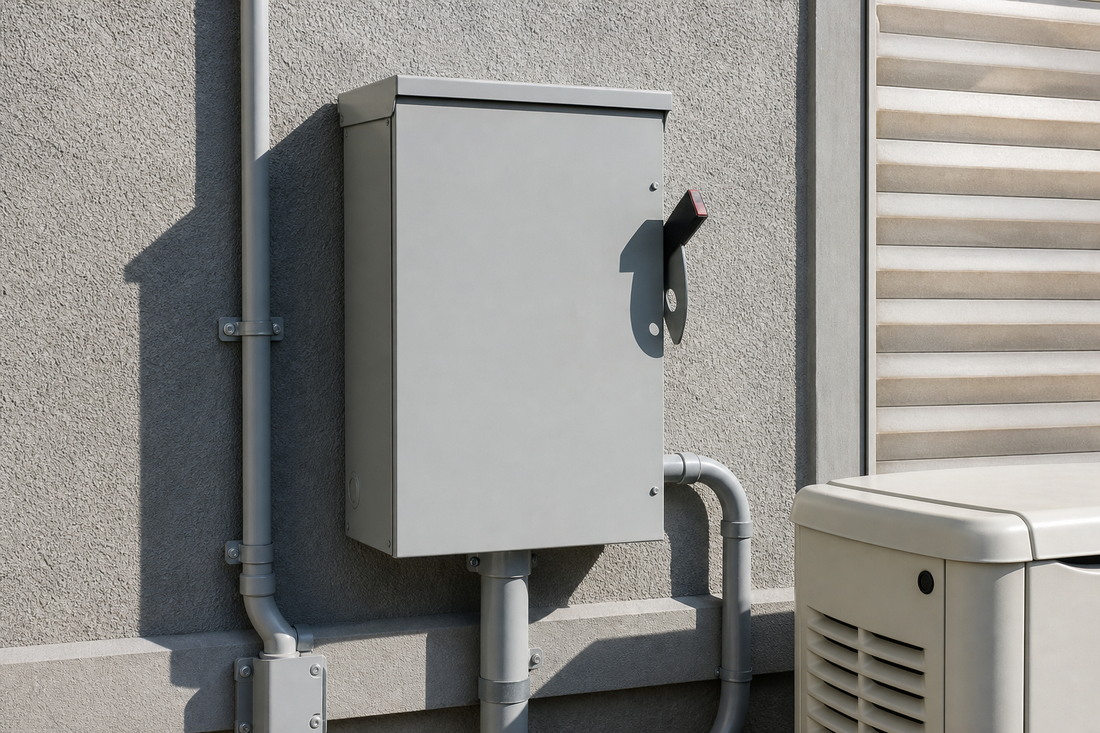

ASCO 400A Transfer Switch: Installation & Performance
When critical infrastructure demands unwavering electrical reliability, a 400 amp automatic transfer switch installation becomes the cornerstone of seamless power continuity. These sophisticated devices serve as sentinels between primary utility feeds and emergency backup generators, orchestrating instantaneous transitions that prevent operational disruptions across mission-critical facilities. Understanding the nuances of proper installation and performance optimization separates routine implementations from exemplary power management systems.
Understanding the Fundamentals of 400A Automatic Transfer Switches
The architecture of a 400-ampere automatic transfer switch represents a confluence of electromechanical precision and digital intelligence. These units continuously monitor voltage parameters from primary power sources, detecting anomalies within milliseconds. When voltage sag, frequency deviation, or complete outage conditions manifest, the controller initiates a predetermined sequence that safely transitions the load to standby generation equipment.
Modern automatic transfer switches incorporate microprocessor-based controls that provide granular adjustability for pickup voltages, time delays, and retransfer parameters. This level of sophistication ensures compatibility with diverse generator configurations while protecting sensitive electronic equipment from harmful transients. The switching mechanism itself—whether mechanical contactors or solid-state components—must withstand thousands of operational cycles while maintaining low contact resistance to minimize heat generation.
Load Compatibility and System Integration
Proper specification requires meticulous load analysis. A 400-ampere rating provides substantial capacity for mid-sized commercial operations, data processing centers, healthcare facilities, and manufacturing environments. Calculating continuous current requirements, accounting for inrush demands from motor loads, and establishing appropriate derating factors for ambient temperatures all influence sizing decisions. Coordination studies with upstream and downstream protective devices prevent nuisance trips during transfer operations.
Featured Solution: ASCO 300 Series Transfer Switch
For applications demanding proven reliability and comprehensive feature sets, the ASCO 300 Series J3NDTSB30400CGXF Automatic Transfer Switch provides an engineered solution tailored for 400-ampere installations. This unit combines ASCO's legacy of transfer switch innovation with contemporary diagnostic capabilities and robust construction suitable for demanding commercial and industrial environments.
The 300 Series incorporates advanced controller technology that simplifies commissioning while providing extensive operational data for preventive maintenance programs. Its compact footprint facilitates installation in space-constrained electrical rooms, while the modular design enables straightforward field servicing without complete unit replacement. For electrical contractors and facility managers tasked with specifying reliable automatic transfer equipment, this model addresses both immediate installation requirements and long-term operational considerations.
Pre-Installation Planning and Site Preparation
Successful 400 amp automatic transfer switch installation begins long before equipment arrival. Comprehensive site surveys identify mounting locations, clearance requirements for ventilation, and accessibility for maintenance procedures. The National Electrical Code stipulates specific workspace dimensions around electrical equipment—typically 36 inches of clearance in front of transfer switches rated above 100 amperes.
Environmental factors profoundly influence performance longevity. Ambient temperatures exceeding manufacturer specifications accelerate insulation degradation and contact wear. Humidity levels warrant attention in coastal installations or facilities with steam processes, necessitating NEMA-rated enclosures with appropriate ingress protection. Seismic considerations in vulnerable regions may mandate additional anchoring provisions beyond standard mounting practices.
Documentation and Permit Acquisition
Regulatory compliance documentation forms the administrative foundation of professional installations. Single-line diagrams illustrating power distribution architecture, equipment specifications, and protection coordination studies satisfy most jurisdictional requirements. Some authorities having jurisdiction mandate factory acceptance testing records or third-party certification documentation. Engineering consultants and design professionals typically coordinate these submissions, but contractors bear responsibility for verification before commencing fieldwork.
Mechanical Installation Procedures
The physical installation sequence demands methodical execution. Wall-mounted configurations require structural analysis to ensure adequate support for equipment mass—a fully-equipped 400A transfer switch with accessories can exceed 200 pounds. Floor-mounted installations offer enhanced stability but consume valuable real estate in electrical rooms.
Proper alignment during mounting prevents mechanical stress on bus connections and switching mechanisms. Torque specifications for mounting hardware prevent both inadequate securement and thread damage from over-tightening. Leveling procedures, verified with precision instruments, ensure uniform contact pressure across electrical connections and proper drainage of any condensation that might accumulate in outdoor installations.
Conduit and Cable Entry Considerations
Cable entry pathways influence both aesthetics and functional performance. Bottom entry configurations facilitate underground feeder routing but require attention to moisture intrusion prevention. Top entry approaches simplify overhead distribution but may complicate future circuit additions. Proper bushing installation and sealing compound application protect conductor insulation from abrasion at entry points where sharp enclosure edges pose risks.
Electrical Connections and Power Circuit Integration
The electrical connection phase represents the most critical installation stage. Conductor sizing calculations must account for ambient temperature correction factors, conduit fill adjustments, and voltage drop limitations across feeder runs. Parallel conductor sets distributing the 400-ampere load require special attention to equal impedance paths, ensuring balanced current sharing across all conductors.
Improper torque application on main bus connections represents the predominant cause of premature transfer switch failures in field installations, leading to localized heating, insulation breakdown, and eventual catastrophic failure.
Calibrated torque wrenches applied according to manufacturer specifications ensure optimal contact pressure without deforming bus bars or terminal lugs. Sequential tightening patterns on multi-bolt connections distribute mechanical stress uniformly. Phase rotation verification prevents equipment damage when energizing three-phase systems—incorrect phasing can destroy motors and create hazardous conditions.
Grounding and Bonding Requirements
Comprehensive grounding establishes both personnel safety and equipment protection. The transfer switch enclosure requires bonding to the premises grounding electrode system via properly sized conductors. Separately derived systems, created when generator neutral configurations differ from utility grounding schemes, mandate specific bonding arrangements at defined locations. Ground fault protection coordination between source overcurrent devices and transfer switch ground fault sensors prevents indiscriminate tripping while maintaining personnel protection.
Control Circuit Wiring and Programming
Low-voltage control circuits orchestrate transfer switch operations. Generator interface connections transmit status signals, remote start commands, and fault indications between devices. Proper shielding and separation from power conductors prevents electromagnetic interference that could cause erratic controller behavior. Terminal identification verification against wiring diagrams eliminates misconnections that compromise operational sequences.
Controller programming establishes operational parameters tailored to specific application requirements. Time delay settings prevent unnecessary transfers during momentary utility disturbances while ensuring prompt response to sustained outages. Engine cool-down periods protect generator longevity. Load shed configurations prioritize critical circuits when generator capacity proves insufficient for total facility load.
Commissioning Tests and Performance Verification
Systematic testing validates proper installation and confirms operational readiness. The testing protocol typically encompasses:
- Insulation resistance measurements verifying conductor and component integrity
- Contact resistance testing ensuring low-impedance current paths
- Operational sequence verification under simulated outage conditions
- Voltage and frequency sensing accuracy confirmation
- Transfer timing measurements validating millisecond-level responsiveness
- Load testing under actual operational conditions
Witnessed testing with facility representatives and authority representatives documents compliance with specifications and code requirements. Comprehensive test reports become permanent facility records, establishing performance baselines for future troubleshooting and maintenance activities.
Performance Monitoring and Preventive Maintenance
Sustained performance requires ongoing vigilance. Modern transfer switches equipped with communications capabilities transmit operational data to building management systems or cloud-based monitoring platforms. Predictive analytics identify performance degradation trends before catastrophic failures occur.
| Maintenance Activity | Recommended Frequency | Critical Focus Areas |
|---|---|---|
| Visual Inspection | Monthly | Indicator lights, enclosure integrity, ambient conditions |
| Connection Torque Verification | Semi-annually | Main bus connections, control terminals, grounding conductors |
| Operational Testing | Quarterly | Transfer sequences, timing accuracy, sensing functionality |
| Comprehensive Inspection | Annually | Contact condition, arc chute integrity, mechanical wear indicators |
Thermographic surveys identify hotspots indicating loose connections or component degradation. Contact resistance measurements trending upward signal impending failure, enabling proactive replacement during scheduled maintenance windows rather than emergency outages.
Common Installation Challenges and Solutions
Real-world installations frequently encounter unforeseen complications. Coordination with generator manufacturers resolves interface discrepancies before equipment arrives on site. Space constraints in retrofit applications may necessitate creative mounting solutions or equipment relocation. Legacy electrical systems lacking adequate fault current capacity require upstream infrastructure upgrades to safely accommodate modern transfer switch protective features.
Addressing Environmental Adversities
Harsh operating environments accelerate wear and reduce equipment lifespan. Coastal installations combat salt-laden atmospheres with conformal coatings and enhanced corrosion resistance. Industrial facilities with airborne particulates benefit from filtered enclosures preventing contamination of switching mechanisms. Temperature extremes necessitate heating elements or cooling provisions maintaining components within operational specifications.
Optimizing Long-Term Reliability and Return on Investment
The substantial capital investment in 400 amp automatic transfer switch installation deserves protection through strategic operational practices. Comprehensive training programs for facility maintenance personnel prevent inadvertent misoperation and enable rapid response to abnormal conditions. Spare parts inventory planning ensures critical components remain available for expedited repairs, minimizing downtime during emergency situations.
Documentation repositories consolidating installation records, testing data, maintenance histories, and operational manuals facilitate knowledge transfer as personnel transitions occur. Digital asset management platforms provide accessibility across facility management teams, engineering consultants, and contractor organizations supporting long-term facility operations.
For electrical contractors, real estate developers, and facility managers navigating the complexities of critical power infrastructure, mastery of automatic transfer switch technology represents competitive differentiation. The intersection of proper specification, meticulous installation practices, and disciplined maintenance protocols transforms these devices from mere electrical components into pillars of operational resilience supporting business continuity across diverse industries.
