ASCO 480V Control Module: Installation Best Practices
Installing an ASCO 480V control module demands meticulous attention to procedural accuracy and safety protocols. These sophisticated assemblies govern the automatic transfer switch operations that safeguard mission-critical power systems across healthcare campuses, data processing centers, and industrial facilities. When executed with precision, proper installation mitigates operational disruptions and extends equipment longevity.
Pre-Installation Assessment and Site Preparation
Before commencing any installation procedures, conducting a comprehensive site evaluation establishes the foundation for successful deployment. The ambient environment must accommodate the thermal dissipation requirements inherent to 480-volt control modules, with adequate ventilation pathways and clearance specifications.
Verify the structural integrity of mounting surfaces, ensuring they can withstand both static loads and vibrational stresses generated during switch activation sequences. Electromagnetic interference patterns within the installation zone require assessment, particularly in proximity to variable frequency drives or high-current conductors that might induce spurious signals into control circuitry.
Documentation review constitutes a critical preparatory step. Cross-reference the existing transfer switch configuration against the replacement module's compatibility matrix. Firmware versions, communication protocols, and voltage ratings must align with the legacy infrastructure to prevent integration conflicts.
Selecting the Appropriate ASCO Control Module Kit
The marketplace offers various control module configurations, each engineered for specific operational parameters and switching requirements. Identifying the precise assembly that corresponds to your existing infrastructure prevents compatibility issues and ensures seamless integration.
For facilities operating 480-volt three-phase systems with automatic transfer switches, the ASCO 480V Control Module Assembly Kit provides a comprehensive solution designed for direct replacement scenarios. This assembly integrates the essential electronic components, protective circuitry, and interface terminals required for reliable transfer switch operation.
This particular module configuration addresses common installation challenges by incorporating pre-wired terminal blocks and factory-calibrated sensing circuits. The assembly reduces field configuration time while minimizing potential wiring errors that could compromise system reliability. For electrical contractors managing tight project timelines, this plug-and-play architecture accelerates commissioning phases without sacrificing installation quality.
Safety Protocols and De-Energization Procedures
Electrical safety supersedes all other considerations during control module installation. Implementing proper lockout-tagout protocols protects personnel from arc flash hazards and inadvertent energization.
Establishing Electrical Isolation
De-energize both normal and emergency power sources feeding the transfer switch. Merely opening the main breakers proves insufficient; physically disconnect or rack out the circuit breakers to establish verifiable isolation points. Apply lockout devices to all energy sources, with each technician applying their personal lock to the isolation points.
Utilize calibrated voltage detection instruments to confirm the absence of voltage at the control module terminals. Test phase-to-phase and phase-to-ground across all three phases, documenting voltage readings below 1 volt AC. The capacitive coupling from adjacent energized conductors can present phantom voltage readings; low-impedance voltage detectors provide accurate verification in these environments.
Dissipating Stored Energy
Control modules contain capacitive components that retain electrical charge following de-energization. Allow a minimum discharge period of five minutes before manipulating any internal components. For modules incorporating large filter capacitors, manually discharge through appropriately rated resistive loads while wearing insulated gloves rated for the system voltage.
Physical Installation and Mounting Procedures

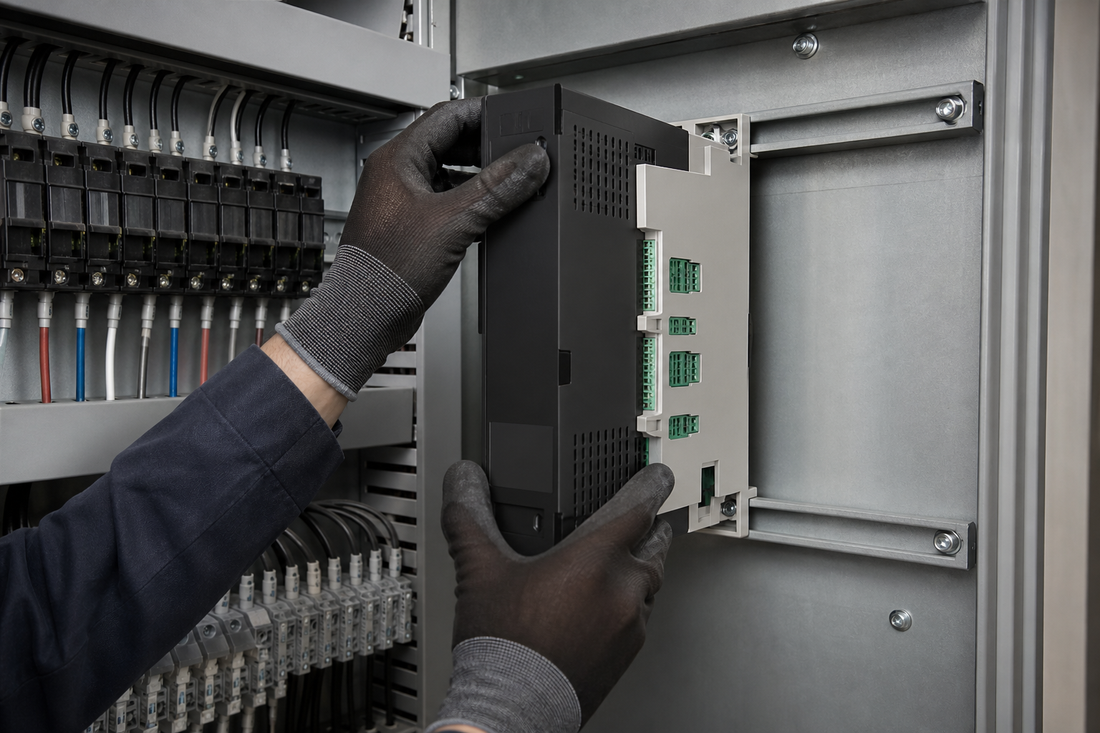

Extract the legacy control module by methodically disconnecting all interface cabling while documenting each connection point. Photographic documentation proves invaluable during reassembly, capturing wire routing patterns and terminal designations that might differ from standard schematics.
Remove mounting fasteners using calibrated torque instruments to prevent damage to threaded inserts in the enclosure. Corrosion or thread-locking compounds may necessitate penetrating lubricants; avoid excessive force that could deform mounting brackets or crack phenolic bases.
Position the replacement control module within the enclosure, aligning mounting holes with existing threaded inserts. Apply anti-seize compound to fastener threads before installation, facilitating future maintenance activities. Torque mounting hardware to manufacturer specifications, typically ranging from 15 to 25 inch-pounds for standard M4 fasteners, ensuring uniform compression across the mounting plane.
Electrical Connection and Terminal Assignments
Systematic wire termination prevents cross-connections that could trigger improper switching sequences or protective relay malfunctions. Reference the terminal identification diagram specific to your control module variant, as pin assignments vary across different ASCO product lines.
- Verify wire gauge compatibility with terminal block specifications, typically accommodating 14 to 22 AWG conductors for control circuits
- Strip conductor insulation to expose the precise length indicated by the terminal block's strip gauge, preventing exposed copper beyond the connector body
- Insert conductors fully into terminal receptacles until mechanical resistance confirms proper seating
- Apply terminal torque per specifications, generally 5 to 7 inch-pounds for control terminals, using a properly calibrated torque screwdriver
- Tug-test each terminated conductor to validate mechanical retention
Sensing circuits demand particular attention during connection procedures. Voltage-sensing inputs monitor both utility and generator sources, requiring accurate phase-rotation alignment. Incorrect phase sequencing may cause the module to misinterpret source quality, preventing transfer operations despite adequate voltage presence.
Communication Interface Configuration
Modern ASCO control modules incorporate digital communication capabilities for remote monitoring and building management system integration. These interfaces utilize various protocols including Modbus RTU, BACnet, or proprietary ASCO communication standards.
Configure communication parameters through the module's programming interface or DIP switch banks, matching baud rate, parity, and address settings to the existing network infrastructure. Shielded twisted-pair cabling provides optimal signal integrity for RS-485 communication links, with shield termination at a single point to prevent ground loops.
Proper communication configuration enables predictive maintenance strategies by capturing operational data such as transfer cycle counts, source quality metrics, and alarm histories that inform proactive service interventions.
Functional Testing and Commissioning Verification
Systematic testing validates proper installation before returning the system to operational status. Energize control power circuits while maintaining main power sources in the isolated state, allowing preliminary functional checks without load transfer risks.
Control Power Verification
Measure control circuit voltages at designated test points, confirming proper transformer output and rectifier operation. Control voltage typically ranges from 24 to 48 VDC depending on module specifications. Ripple voltage should remain below 5% of nominal DC voltage, indicating adequate filtering capacity.
Sensing Circuit Validation
Simulate source voltage conditions using variable autotransformers to verify proper voltage detection thresholds. The control module should recognize acceptable voltage typically within 85% to 110% of nominal voltage. Time-delay parameters require verification, ensuring the module respects programmed delay intervals before initiating transfer sequences.
Transfer Operation Testing
Conduct no-load transfer operations between normal and emergency positions, observing switching sequence timing and mechanical operation. Transfer completion times generally range from 100 milliseconds for open-transition switches to several seconds for closed-transition configurations. Audible indicators and visual status displays should correlate with actual switch position.
Post-Installation Documentation and Training
Comprehensive documentation preserves institutional knowledge and facilitates future maintenance activities. Generate an as-built wiring diagram reflecting any field modifications implemented during installation. Record all configuration parameters including voltage thresholds, time delays, and communication settings.
Training facility personnel on basic operational procedures and alarm interpretation enhances system reliability. Demonstrate manual transfer operation procedures, alarm acknowledgment protocols, and routine inspection requirements.
Common Installation Challenges and Remediation Strategies
Even experienced contractors encounter obstacles during control module installations. Phase rotation discrepancies between existing wiring and replacement module expectations frequently cause commissioning delays. Employ phase rotation meters to verify proper sequence before energization, correcting misalignments at the source terminals rather than within the control module.
Nuisance tripping during initial energization often results from oversensitive voltage detection thresholds or inadequate time-delay settings. Gradually adjust detection parameters while monitoring source voltage quality with recording instruments to establish optimal sensitivity levels.
| Installation Issue | Probable Cause | Resolution Approach |
|---|---|---|
| Module fails to power up | Control transformer fault or blown fuses | Verify control power continuity and replace protective devices |
| Erratic voltage readings | Sensing circuit open or incorrect scaling | Confirm sensing transformer connections and calibration parameters |
| Communication timeout errors | Incorrect protocol settings or wiring | Verify baud rate, address, and cable shield grounding |
| Delayed transfer operation | Excessive time-delay programming | Adjust delay parameters to application-appropriate values |
Maintenance Considerations for Optimal Longevity
Establishing preventive maintenance schedules extends control module operational lifespan and prevents unexpected failures. Quarterly visual inspections identify environmental degradation such as dust accumulation, corrosion evidence, or thermal discoloration indicating overheating conditions.
Annual functional testing validates continued operational integrity, repeating commissioning-level verification procedures to detect performance degradation. Electrolytic capacitors within power supply circuits exhibit predictable aging characteristics; proactive replacement at manufacturer-recommended intervals prevents sudden failures during critical operations.
Environmental monitoring proves particularly valuable in harsh installations. Temperature and humidity extremes accelerate component aging, while corrosive atmospheres attack terminal connections and printed circuit board traces. Implementing environmental controls or upgraded enclosure ratings mitigates these degradation mechanisms.
