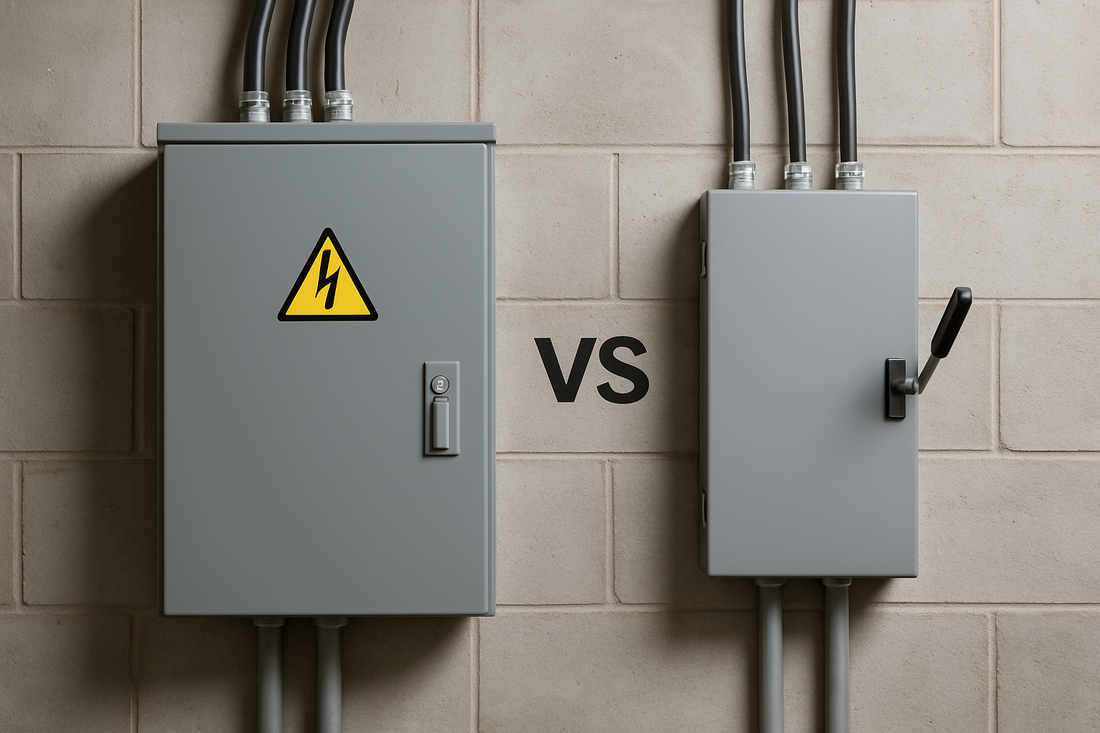

ATS Power System Vs Manual Transfer Switch Which Wins
Understanding Power Transfer Systems: The Foundation of Reliable Electrical Infrastructure
Power continuity represents the cornerstone of modern electrical infrastructure, particularly in mission-critical environments where even momentary outages can result in catastrophic consequences. The dichotomy between automated and manual power transfer methodologies presents facility managers, electrical contractors, and engineering professionals with fundamental decisions that impact operational resilience, cost-effectiveness, and regulatory compliance.
An ATS power system embodies sophisticated electromechanical switching apparatus designed to seamlessly transition electrical loads between primary utility feeds and backup generator sources. These systems operate through intricate sensing circuits, microprocessor-controlled logic, and robust switching mechanisms that execute power transfers without human intervention. Conversely, manual transfer switches require direct operator engagement, utilizing mechanical interlocks and visual indicators to facilitate safe power source transitions.
The proliferation of data centers, healthcare facilities, and industrial manufacturing environments has intensified scrutiny regarding transfer switch selection criteria. Engineering consultants and facility managers must evaluate numerous variables including load characteristics, switching speed requirements, maintenance protocols, and total cost of ownership when specifying these critical components.
ATS Power System Architecture and Operational Mechanics
Contemporary ATS power systems integrate sophisticated monitoring capabilities with rapid switching mechanisms to ensure uninterrupted power delivery. These units continuously monitor voltage parameters, frequency stability, and phase relationships across both normal and emergency power sources.
Sensing and Control Technologies
Advanced sensing circuitry within modern ATS units employs digital signal processing to detect voltage anomalies, frequency deviations, and phase rotation discrepancies. Microprocessor-based controllers execute predetermined algorithms that evaluate power quality parameters against configurable thresholds. When utility power degradation exceeds acceptable limits, the controller initiates generator start sequences while simultaneously preparing the transfer mechanism for switching operations.
Time delay functions prevent nuisance switching during momentary utility disturbances, while programmable logic accommodates facility-specific operational requirements. Load shed capabilities enable selective disconnection of non-critical circuits during emergency conditions, preserving generator capacity for essential systems.
Switching Mechanisms and Performance Characteristics
The heart of any ATS power system resides in its switching mechanism, typically employing either electromechanical contactors or solid-state switching devices. Electromechanical designs utilize heavy-duty contactors with silver-tungsten contact materials optimized for high inrush current applications. These mechanisms deliver exceptional reliability while accommodating substantial overload conditions common in motor starting applications.
Transfer times vary considerably based on switching technology and control algorithms. Standard electromechanical units typically achieve transfer times between 8-12 seconds, while fast-acting variants can complete transitions within 100 milliseconds. Solid-state transfer switches offer sub-cycle switching capabilities but impose higher procurement costs and thermal management requirements.
Manual Transfer Switch Implementation and Operational Considerations
Manual transfer switches represent the most fundamental approach to emergency power switching, relying on operator intervention to execute power source transitions. These devices incorporate mechanical interlocking mechanisms that prevent simultaneous connection to both power sources, ensuring electrical safety during switching operations.
Manual transfer switches excel in applications where transfer frequency remains minimal and qualified operators maintain constant facility presence during emergency conditions.
The simplicity of manual systems translates to enhanced reliability in harsh environmental conditions while minimizing electronic component dependencies. Maintenance requirements focus primarily on mechanical lubrication and contact inspection rather than complex diagnostic procedures required by automated systems.
Mechanical Interlocking Systems
Sophisticated mechanical interlocks prevent inadvertent paralleling of power sources through positive engagement mechanisms. These systems employ cam-operated switches that physically prohibit simultaneous closure of normal and emergency contactors. Visual position indicators provide immediate feedback regarding switch position and power source connectivity.
Load break capabilities vary significantly among manual transfer switch designs. Basic units require generator synchronization before switching, while more advanced variants incorporate load break mechanisms that safely interrupt energized circuits during transfer operations.
Comprehensive Transfer Switch Solutions for Critical Applications
Selecting appropriate transfer switching solutions requires careful evaluation of facility requirements, operational constraints, and regulatory mandates. Our comprehensive transfer switch collection encompasses both automatic and manual variants designed to meet diverse application needs across healthcare, data center, industrial, and commercial environments.
These solutions address common challenges faced by electrical contractors and facility managers including compatibility with existing generator systems, integration with building automation platforms, and compliance with evolving electrical codes. Each transfer switch undergoes rigorous testing to ensure reliable operation under extreme environmental conditions while maintaining compatibility with modern generator control systems.
Performance Comparison: Speed, Reliability, and Operational Efficiency
The performance differential between ATS power systems and manual transfer switches manifests across multiple operational parameters that directly impact facility resilience and maintenance overhead.
Transfer Speed and Load Continuity
Transfer speed represents perhaps the most critical differentiation factor between automated and manual systems. ATS power systems execute transfers within predetermined timeframes regardless of operator availability, while manual systems depend entirely on human response times and procedural compliance.
| Transfer Type | Typical Transfer Time | Operator Dependency | Load Interruption |
|---|---|---|---|
| Standard ATS | 8-12 seconds | None | Minimal |
| Fast ATS | 100ms - 1 second | None | Negligible |
| Manual Switch | 2-15 minutes | Complete | Extended |
Critical facilities such as data centers and healthcare environments cannot tolerate extended power interruptions associated with manual switching operations. UPS systems may bridge brief ATS transfer periods but lack capacity for extended manual switching intervals.
Reliability Metrics and Failure Modes
Reliability assessment encompasses both mechanical longevity and operational availability under emergency conditions. Manual transfer switches demonstrate exceptional mechanical reliability due to simplified construction and minimal electronic dependencies. However, human factors introduce significant variability in emergency response effectiveness.
ATS power systems incorporate redundant sensing circuits and backup control power sources to enhance operational reliability. Self-diagnostic capabilities continuously monitor system health while providing predictive maintenance alerts. Nevertheless, increased complexity introduces additional failure modes requiring specialized troubleshooting expertise.
Cost Analysis: Initial Investment Versus Lifecycle Economics
Economic evaluation of transfer switch alternatives must encompass procurement costs, installation expenses, maintenance overhead, and operational risk mitigation benefits throughout the equipment lifecycle.
Capital Expenditure Considerations
Manual transfer switches typically require 40-60% lower initial investment compared to equivalent ATS power systems. This cost advantage stems from simplified construction, reduced electronic content, and minimal factory commissioning requirements. However, installation costs may offset procurement savings due to additional control wiring and operator interface requirements.
ATS systems command premium pricing reflecting sophisticated control electronics, factory testing protocols, and extended warranty coverage. Advanced features including remote monitoring capabilities, load management functions, and building automation integration justify higher procurement costs in many applications.
Operational Cost Implications
Maintenance expenses vary considerably between manual and automatic systems. Manual switches require periodic mechanical lubrication, contact inspection, and operational testing but minimal electronic servicing. Conversely, ATS units demand comprehensive diagnostic testing, firmware updates, and electronic component replacement over their service life.
- Manual switch annual maintenance: $200-500 per unit
- ATS system annual maintenance: $800-1,500 per unit
- Emergency response availability: 24/7 for ATS versus business hours for manual
- Training requirements: minimal for manual versus extensive for ATS
Risk mitigation benefits significantly favor automated systems in revenue-critical applications. The cost of extended outages during manual switching operations often exceeds ATS procurement premiums within the first emergency event.
Application-Specific Selection Criteria and Best Practices
Optimal transfer switch selection requires comprehensive evaluation of facility characteristics, operational patterns, and regulatory requirements specific to each installation environment.
Healthcare facilities must comply with stringent life safety codes mandating rapid power restoration for essential systems. ATS power systems align naturally with these requirements while providing documentation capabilities required for regulatory compliance. Data centers similarly demand sub-second transfer capabilities to maintain server operation and prevent costly service interruptions.
Industrial applications present unique challenges including high inrush currents, harmonic distortion, and harsh environmental conditions. Motor starting loads require transfer switches with exceptional short-circuit withstand ratings and contact erosion resistance. Cold storage facilities and manufacturing environments may benefit from manual systems where transfer frequency remains low and maintenance staff possess appropriate technical expertise.
Real estate developers and engineering consultants must balance initial construction costs against long-term operational expenses when specifying transfer equipment. Tenant requirements, building classification, and local electrical codes significantly influence selection criteria and installation standards.
