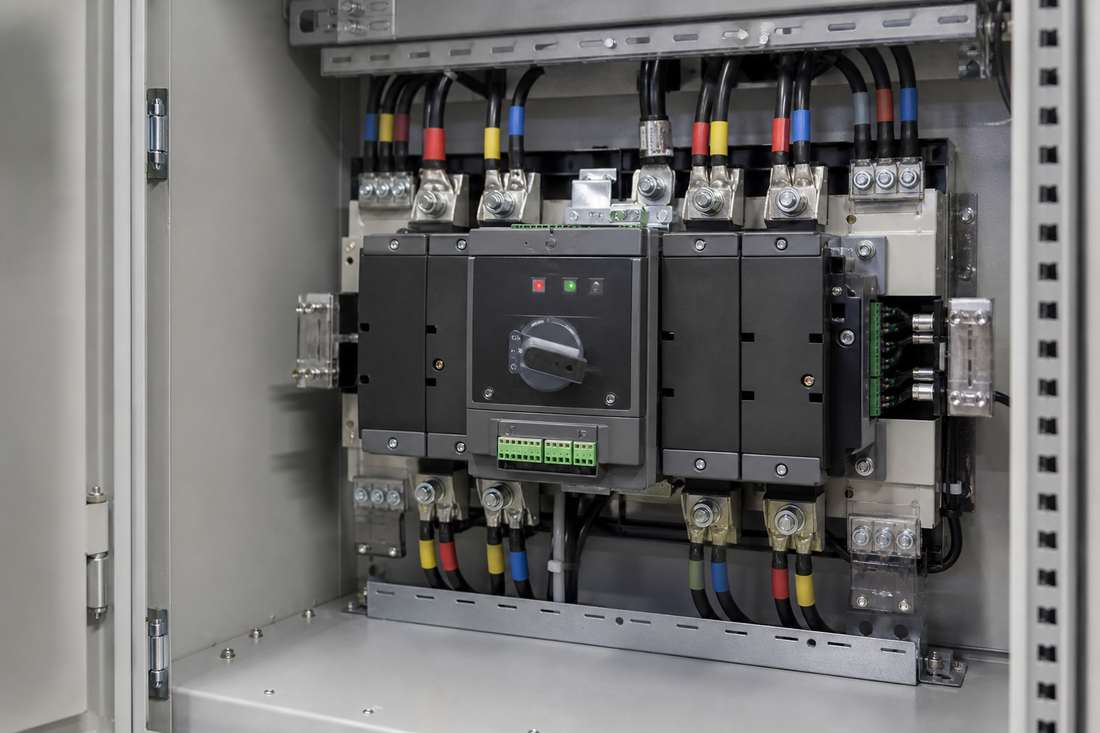

Automatic Transfer Switch Explained: Complete Technical Guide
In mission-critical power systems, the automatic transfer switch (ATS) serves as the cerebral cortex of electrical continuity. This sophisticated apparatus orchestrates the seamless transition between primary utility power and backup generation, ensuring uninterrupted operations when grid voltage falters. Understanding the intricacies of ATS technology empowers facility managers and electrical contractors to specify, install, and maintain these pivotal devices with precision.
The functionality of an automatic transfer switch transcends simple circuit switching. Modern units incorporate microprocessor-based intelligence, sensing mechanisms, and fail-safe protocols that collectively safeguard equipment while maintaining power delivery integrity. For healthcare facilities, data centers, and industrial operations where downtime translates directly to financial hemorrhaging or safety compromises, the ATS represents an indispensable component of infrastructure resilience.
Fundamental Operating Principles of Automatic Transfer Switches
At its essence, an automatic transfer switch monitors incoming utility power through voltage and frequency detection circuitry. When parameters deviate beyond predetermined thresholds—typically voltage sags below 85% or surges above 110% of nominal values—the ATS initiates a coordinated sequence. The controller simultaneously signals the standby generator's starting system while preparing the transfer mechanism for load migration.
The transfer mechanism itself employs either electrically operated contactors or motor-driven switching assemblies. Contactor-based designs utilize electromagnetic coils to actuate heavy-duty contacts capable of interrupting substantial amperage flows. Motor-driven configurations offer enhanced reliability through mechanical advantage, particularly in higher amperage ratings exceeding 400 amperes. The transition occurs within milliseconds to several seconds, depending on the specified transfer mode and application requirements.
Sensing circuitry continuously evaluates both power sources, employing sophisticated algorithms to distinguish between momentary perturbations and sustained outages. This discrimination prevents nuisance transfers during transient voltage fluctuations that utility systems naturally experience. Premium ATS units incorporate adjustable time delays, allowing customization based on generator warm-up characteristics and load sensitivity thresholds.
Essential Components and Their Functions
Control Module Architecture
The control module constitutes the intelligent nerve center of the automatic transfer switch. Contemporary units feature digital displays, programmable logic controllers, and communication interfaces that facilitate integration with building management systems. These modules execute complex decision trees, evaluating voltage amplitude, frequency stability, phase rotation, and waveform quality before authorizing transfers.
Diagnostic capabilities embedded within advanced controllers provide real-time status monitoring and historical event logging. Maintenance personnel can interrogate these systems to identify incipient failures, calibration drift, or operational anomalies before they precipitate service interruptions. Ethernet connectivity and SNMP protocols enable remote monitoring, particularly valuable for distributed infrastructure spanning multiple geographic locations.
Power Transfer Mechanism Configuration
The physical switching apparatus represents the muscular component of the ATS assembly. Industrial-grade contacts fabricated from silver-tungsten alloys withstand the thermal stress of arc interruption during load transfers. Contact pressure mechanisms maintain consistent electrical interface, minimizing resistance and associated heat generation during normal conduction.
Mechanical interlocking prevents simultaneous closure of both utility and generator contacts—a catastrophic scenario that would attempt to parallel non-synchronized sources. This fail-safe design incorporates redundant blocking mechanisms, ensuring that even control system malfunctions cannot compromise source isolation.
Selecting the Right Transfer Switch for Your Application
Specification of an appropriate automatic transfer switch demands comprehensive analysis of electrical parameters, operational requirements, and environmental conditions. Amperage rating must accommodate not only steady-state loads but also inrush currents associated with motor starting and transformer energization. Undersized transfer switches experience accelerated contact erosion and premature failure.
For facilities requiring genuine OEM replacement components or complete transfer switch assemblies, specialized suppliers maintain extensive inventories configured for diverse generator brands and electrical specifications. These curated selections ensure compatibility with existing infrastructure while meeting stringent performance criteria demanded by critical applications. Access to knowledgeable technical support further streamlines the specification process, particularly when navigating complex retrofit scenarios or custom integration challenges.
Voltage classification—whether 120/240V single-phase, 208Y/120V three-phase, or 480Y/277V three-phase—must align precisely with both utility service and generator output characteristics. Phase configuration mismatches create hazardous situations and equipment damage. Neutral switching requirements vary by electrical code jurisdiction and system grounding methodology, necessitating careful evaluation during design phases.
Transfer Modes and Timing Considerations
Automatic transfer switches operate in distinct modes tailored to application sensitivity and regulatory requirements. Open-transition (break-before-make) switching momentarily interrupts power flow during the transfer sequence, typically for 100 milliseconds or less. This approach provides absolute source isolation, preventing any possibility of backfeed or paralleling.
Closed-transition (make-before-break) configurations maintain continuous load connection during transfers, achieving true zero-interruption transitions. However, this methodology demands precise synchronization between utility and generator sources, requiring sophisticated controls and paralleling equipment. Healthcare facilities with ultra-sensitive medical equipment frequently specify closed-transition designs despite their increased complexity and cost.
Delayed-transition modes incorporate programmable neutral positions where loads remain de-energized for adjustable intervals, allowing motor rotation to cease before re-energization from the alternate source. This prevents the destructive mechanical stress of reconnecting motors spinning out-of-phase with incoming voltage.
Time delay parameters govern transfer initiation and retransfer execution. Transfer-to-emergency delays typically range from instantaneous to 30 seconds, providing generator stabilization time before load application. Retransfer-to-normal delays extend from 5 to 30 minutes, ensuring utility restoration stability and allowing controlled generator cooldown before disconnection.
Installation Considerations for Optimal Performance
Proper installation profoundly influences automatic transfer switch reliability and longevity. Ambient temperature parameters specified by manufacturers must be observed, as excessive heat accelerates insulation degradation and contact oxidation. Ventilation requirements ensure adequate convective cooling, particularly in enclosures housing multiple switches or associated distribution equipment.
Mounting orientation affects mechanical operation in motor-driven designs. Manufacturers specify acceptable deviation from vertical, beyond which gravity may impair actuator function. Torque specifications for electrical terminations demand strict adherence—insufficient tightening creates high-resistance connections that generate heat, while excessive torque damages conductor strands or terminal hardware.
Wire sizing must accommodate both continuous current ratings and voltage drop considerations across cable runs extending to distant generators. Grounding and bonding configurations require meticulous attention to prevent ground loops while maintaining fault current paths. Conduit systems should incorporate expansion provisions accommodating thermal cycling without imposing mechanical stress on terminal connections.
Maintenance Protocols and Testing Procedures
Systematic maintenance extends ATS service life while ensuring operational readiness during actual outages. Quarterly inspections should verify control power supply voltage, examine connections for signs of overheating, and assess contact surfaces for erosion or contamination. Annual procedures include contact resistance measurements, insulation resistance testing, and operational cycling under load conditions.
Exercise regimens that periodically transfer loads to standby power prevent contact oxidation and verify complete system functionality. Many jurisdictions mandate monthly testing for life-safety systems, while less critical applications may extend intervals to quarterly schedules. Documentation of test results establishes baseline parameters for trend analysis, revealing gradual degradation before catastrophic failures occur.
| Maintenance Task | Frequency | Critical Parameters |
|---|---|---|
| Visual Inspection | Quarterly | Connection integrity, indicator status |
| Contact Resistance | Annually | Microhm measurements per phase |
| Operational Testing | Monthly | Transfer timing, voltage parameters |
| Control Calibration | Biannually | Pickup/dropout voltage accuracy |
Common Failure Modes and Troubleshooting Approaches
Understanding prevalent failure mechanisms accelerates diagnostic processes when malfunctions occur. Contact welding—where arc energy fuses switching contacts together—prevents proper operation and typically results from excessive inrush currents or aging contact surfaces. This condition manifests as inability to transfer between sources or stuck contacts requiring manual intervention.
Control power supply failures create scenarios where monitoring circuits cease functioning despite adequate utility voltage. Battery backup systems within ATS controllers require periodic replacement, typically every three to five years. Capacitor degradation in power supplies produces similar symptoms, often preceded by intermittent operation or display anomalies.
Sensing circuit calibration drift causes nuisance transfers or failure to recognize legitimate outage conditions. Voltage detection thresholds that deviate from specification may initiate transfers during normal utility fluctuations or fail to respond when power quality genuinely deteriorates. Recalibration procedures restore proper operation, though persistent drift indicates component degradation necessitating replacement.
Frequently Asked Questions About Automatic Transfer Switches
What differentiates automatic transfer switches from manual transfer switches?
Automatic transfer switches incorporate sensing and control circuitry that autonomously detects power anomalies and executes transitions without human intervention. Manual transfer switches require physical operator action to reposition switching mechanisms, introducing delays and dependency on personnel availability during emergencies.
Can automatic transfer switches handle unbalanced loads across phases?
Quality ATS designs accommodate reasonable load imbalances typical in three-phase systems. However, severe imbalances exceeding 20% between phases may cause overheating in specific contact poles and should be addressed through load redistribution rather than relying solely on switch tolerance.
How do bypass isolation features enhance maintenance flexibility?
Bypass-isolation ATS configurations incorporate additional switching mechanisms allowing the transfer switch to be electrically isolated while maintaining power through a bypass circuit. This arrangement permits complete servicing, testing, or replacement without facility shutdown—crucial for operations intolerant of scheduled maintenance windows.
The automatic transfer switch represents far more than a simple electrical component. It embodies the convergence of power engineering, control theory, and materials science into a singular apparatus defending against the modern world's intolerance for power interruption. For electrical contractors specifying systems, facility managers maintaining infrastructure, or engineering consultants designing resilient installations, comprehensive ATS knowledge translates directly to enhanced reliability and operational confidence.
