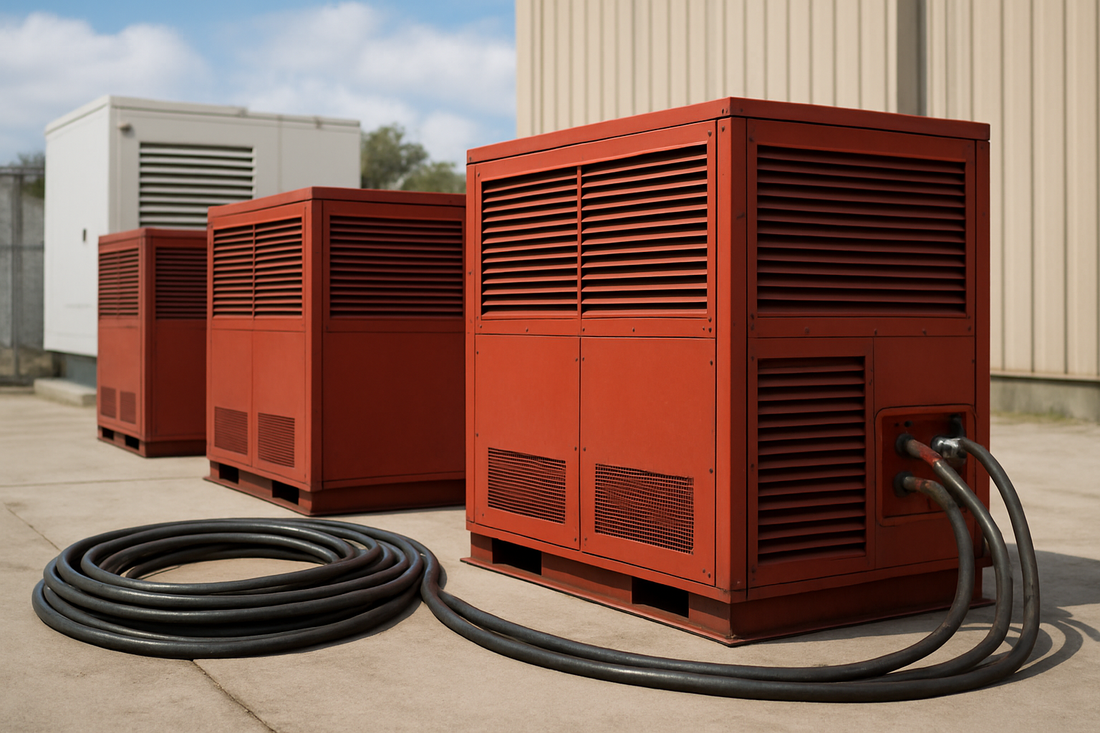

Choosing Load Banks: Performance Testing Solutions
Understanding Load Bank Fundamentals
Load banks serve as critical electrical testing apparatus designed to simulate electrical loads for comprehensive power system evaluation. These sophisticated devices enable engineers and technicians to verify generator performance, uninterruptible power supply (UPS) functionality, and overall electrical infrastructure resilience under controlled conditions.
The primary purpose of load bank testing involves creating artificial electrical loads that mimic real-world power consumption patterns. This methodology allows for precise assessment of power generation equipment without risking damage to actual connected loads or compromising operational systems.
Modern load banks incorporate advanced circuitry and monitoring capabilities, featuring microprocessor-based controls, digital displays, and remote monitoring interfaces. These technological enhancements provide unprecedented accuracy in load simulation and data collection during testing procedures.
Essential Load Bank Types and Applications
Resistive Load Banks
Resistive load banks represent the most fundamental category, converting electrical energy into thermal energy through resistive elements. These units excel in testing applications requiring pure resistive loads, making them ideal for basic generator commissioning and routine maintenance verification.
The simplicity of resistive load banks translates to enhanced reliability and reduced maintenance requirements. However, their limitation lies in simulating only resistive loads, which may not accurately represent complex electrical systems incorporating reactive components.
Reactive Load Banks
Reactive load banks introduce inductive or capacitive elements to simulate lagging or leading power factor conditions respectively. These specialized units prove invaluable when testing power systems that support motors, transformers, or other reactive equipment.
Inductive reactive load banks create lagging power factor conditions typical of motor loads, while capacitive variants generate leading power factor scenarios. This versatility enables comprehensive testing of power generation equipment under various operational conditions.
Resistive-Reactive Combination Units
Combined resistive-reactive load banks offer maximum testing flexibility by incorporating both resistive and reactive elements within a single chassis. These sophisticated units allow simultaneous or independent operation of resistive and reactive circuits, providing comprehensive load simulation capabilities.
Critical Performance Parameters
Power rating constitutes the fundamental specification determining load bank capacity, typically expressed in kilowatts (kW) for resistive loads and kilovolt-amperes reactive (kVAR) for reactive components. Proper power rating selection ensures adequate testing coverage without exceeding equipment limitations.
Voltage compatibility represents another crucial parameter, as load banks must operate safely within the electrical system's voltage parameters while maintaining accurate load simulation characteristics across the specified voltage range.
Current handling capability directly correlates with power rating and voltage specifications, determining the maximum amperage the load bank can safely conduct during testing operations. Insufficient current capacity may result in equipment damage or inaccurate test results.
Professional Load Bank Solutions
For electrical contractors, engineering consultants, and facility managers seeking reliable load bank solutions, specialized equipment suppliers offer comprehensive product lines designed for diverse testing applications. High-quality load banks feature robust construction, precise control systems, and extensive safety features to ensure reliable operation in demanding environments.
Professional-grade load banks incorporate advanced cooling systems, comprehensive protection circuits, and intuitive control interfaces that streamline testing procedures while maintaining operator safety. These features prove particularly valuable for data center installations, healthcare facilities, and critical infrastructure applications where testing accuracy and reliability remain paramount.
Technical Specifications and Standards
Load bank selection requires careful consideration of applicable industry standards and certification requirements. IEEE, NEMA, and UL standards establish performance criteria, safety requirements, and testing protocols that ensure equipment reliability and operator protection.
Environmental considerations significantly impact load bank performance, particularly regarding ambient temperature, altitude, and humidity conditions. Derating factors may apply when operating load banks outside standard environmental parameters, necessitating careful specification review.
| Parameter | Consideration | Impact |
|---|---|---|
| Ambient Temperature | Operating range limits | Power derating requirements |
| Altitude | Air density effects | Cooling efficiency reduction |
| Humidity | Insulation performance | Safety and reliability concerns |
Control System Requirements
Modern load banks incorporate sophisticated control systems enabling precise load adjustment, automated testing sequences, and comprehensive data logging capabilities. These systems enhance testing efficiency while providing detailed documentation for compliance and maintenance records.
Remote monitoring capabilities allow operators to conduct testing procedures from safe distances, particularly beneficial when testing high-power equipment or operating in hazardous environments. Ethernet connectivity, wireless communication, and cloud-based monitoring platforms extend operational flexibility.
Installation and Safety Considerations
Proper load bank installation requires adequate ventilation, structural support, and electrical connections capable of handling full-rated current safely. Cooling airflow requirements often necessitate specific spacing and ventilation provisions to ensure reliable operation and prevent overheating.
Safety protocols encompass multiple aspects including proper grounding, emergency shutdown procedures, and personal protective equipment requirements. Load banks generate significant heat during operation, creating potential burn hazards that require appropriate safety measures and operator training.
Maintenance and Lifecycle Management
Regular maintenance programs ensure sustained load bank performance and extend equipment lifespan. Maintenance activities typically include resistor element inspection, control system calibration, cooling system cleaning, and connection integrity verification.
- Quarterly visual inspections of resistor elements and cooling components
- Annual calibration of control systems and monitoring instrumentation
- Bi-annual comprehensive electrical connection audits
- Periodic thermal imaging surveys to identify potential hot spots
Proactive maintenance strategies minimize unexpected failures and ensure reliable testing capabilities when critical power systems require verification. Documentation of maintenance activities supports warranty compliance and provides valuable performance trending data.
Cost-Benefit Analysis and ROI
Load bank investments require comprehensive cost-benefit analysis considering initial acquisition costs, operational expenses, and potential savings from prevented downtime. Quality load banks provide decades of reliable service when properly maintained, justifying higher initial investments through reduced lifecycle costs.
Return on investment calculations should incorporate avoided costs from power system failures, regulatory compliance benefits, and enhanced system reliability. For critical facilities such as hospitals, data centers, and manufacturing plants, load bank testing prevents catastrophic failures that could result in substantial financial losses.
The ability to conduct regular testing without disrupting facility operations provides additional value through improved system reliability and reduced insurance premiums. Many insurance providers offer reduced rates for facilities implementing comprehensive preventive maintenance programs including regular load bank testing.
