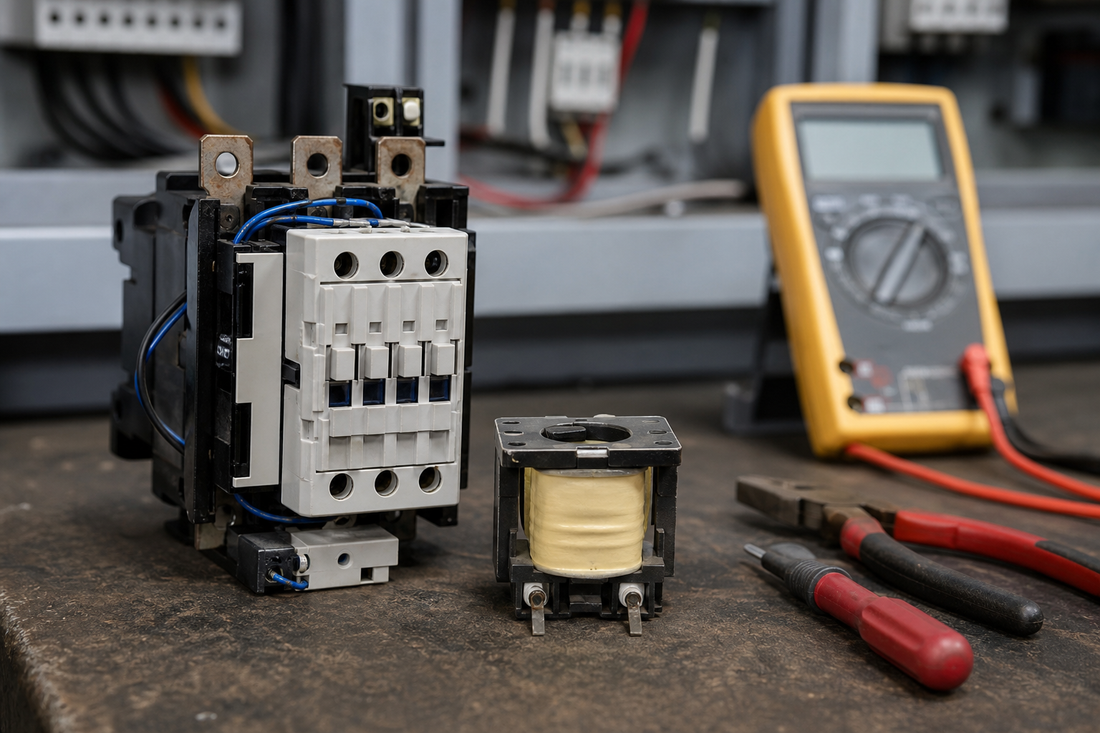

Contactor Coil Kit Troubleshooting: Fix Common Failures Fast
When critical power systems falter, the culprit often lies within a seemingly insignificant component: the contactor coil. These electromagnetic actuators serve as the gatekeepers of electrical current flow, and their malfunction can cascade into catastrophic equipment downtime. Understanding the nuances of contactor coil troubleshooting electrical systems empowers maintenance professionals to swiftly diagnose and rectify failures before they escalate into costly operational interruptions.
The contactor coil operates through electromagnetic induction, energizing to close electrical contacts and establishing circuit continuity. When this fundamental mechanism deteriorates, entire power distribution architectures can grind to a halt. Facility managers, electrical contractors, and maintenance technicians must develop proficiency in identifying and addressing these failures with surgical precision.
Understanding Contactor Coil Fundamentals
The contactor coil functions as an electromagnet that, when energized, generates sufficient magnetic flux to overcome spring tension and close the contactor's main contacts. This electromagnetic assembly typically comprises copper wire wound around a laminated steel core, with insulation materials protecting against thermal degradation and electrical breakdown.
Voltage specifications matter tremendously. Coils designed for 120VAC operation will fail catastrophically if subjected to 240VAC, while undervoltage conditions create chattering phenomena that accelerates mechanical wear. The coil's impedance characteristics must match the control circuit parameters precisely, ensuring adequate pull-in current while maintaining economical holding current during sustained operation.
Primary Failure Modes and Diagnostic Indicators
Contactor coil failures manifest through distinct symptomatology that trained technicians can rapidly identify. Thermal degradation represents the most prevalent failure mechanism, occurring when ambient temperatures exceed the coil's insulation class rating or when sustained overvoltage conditions generate excessive heat dissipation.
Thermal Breakdown Characteristics
Insulation systems deteriorate exponentially with temperature increases. A coil rated for Class F insulation (155°C) will experience accelerated aging when operating environments consistently exceed this threshold. Visual inspection often reveals discoloration, brittleness, or carbonization of the coil housing. The olfactory detection of burnt insulation provides unmistakable evidence of thermal stress.
Resistance measurements using a calibrated digital multimeter reveal deviations from manufacturer specifications. A coil exhibiting infinite resistance indicates complete winding discontinuity, while significantly reduced resistance suggests inter-turn short circuits that compromise electromagnetic efficiency.
Mechanical Degradation Patterns
Contactor coils endure millions of energization cycles throughout their operational lifetime. Mechanical vibration, improper mounting, and misalignment gradually compromise structural integrity. Chattering behavior—characterized by rapid, repetitive contact closure and opening—generates acoustic signatures and accelerates both coil and contact deterioration.
Professional-Grade Replacement Solutions
When diagnostic procedures confirm coil failure, procurement of premium OEM replacement components becomes paramount. Generic aftermarket alternatives frequently exhibit dimensional inconsistencies, substandard materials, and abbreviated service lives that ultimately increase total cost of ownership.
The J-Frame 150A-600A Coil Kit represents an engineered solution for high-amperage contactor applications prevalent in generator automatic transfer switches, emergency power systems, and industrial machinery installations. This comprehensive kit provides the precise electromagnetic characteristics required for reliable operation across demanding duty cycles. For electrical contractors managing data center infrastructure or facility managers overseeing healthcare critical power systems, maintaining inventory of properly specified coil kits minimizes mean time to repair during unexpected failures.
The availability of rapid-ship replacement components from specialized suppliers ensures that critical power systems return to operational status within hours rather than days, a consideration that healthcare facilities, cold storage operations, and manufacturing environments cannot afford to overlook.
Systematic Troubleshooting Methodology
Effective contactor coil diagnosis requires methodical progression through established testing protocols. Haphazard approaches consume valuable time and risk misdiagnosis that compounds the original failure.
Initial Visual Assessment
Commence troubleshooting with comprehensive visual examination before energizing any circuits. Inspect for obvious physical damage, corrosion on terminal connections, moisture ingress, and contaminant accumulation. Loose mounting hardware permits excessive vibration that fatigues coil windings and electrical terminations.
Documentation of nameplate data—voltage rating, current draw, duty cycle classification—provides essential reference parameters for subsequent electrical testing. Photographic documentation establishes baseline conditions for post-repair comparison.
Electrical Testing Procedures
De-energize all circuits and implement lockout-tagout protocols before conducting electrical measurements. Verify complete absence of voltage using a properly rated test instrument. Disconnect coil leads from control circuitry to eliminate parallel paths that skew resistance readings.
Measure coil resistance and compare against manufacturer specifications, typically ranging from 10 to 200 ohms depending on voltage rating and physical size. Deviations exceeding 10% warrant coil replacement. Perform insulation resistance testing between coil terminals and ground using a megohmmeter, with acceptable values typically exceeding 10 megohms for new installations.
Voltage Supply Verification
Coil failures frequently stem from control circuit anomalies rather than coil defects. Measure actual voltage at the coil terminals during attempted energization. Supply voltage should fall within 90-110% of nameplate rating for AC coils.
Voltage sag during motor starting or other high-inrush loads can prevent adequate coil energization, creating nuisance trips that mimic coil failure symptoms while the component itself remains functional.
Examine control transformers for proper sizing and regulation characteristics. Inadequately sized transformers exhibit excessive voltage drop under load, particularly problematic in installations with multiple contactors energizing simultaneously.
Environmental Considerations and Protective Measures
Operating environment profoundly influences contactor coil longevity. Installations in high-temperature machinery rooms, corrosive chemical processing facilities, or high-humidity coastal environments require enhanced protection strategies.
| Environmental Factor | Impact on Coil Life | Mitigation Strategy |
|---|---|---|
| Ambient Temperature >40°C | Accelerated insulation aging | Specify higher insulation class, improve ventilation |
| Humidity >85% RH | Moisture absorption, tracking | NEMA 4X enclosures, desiccant breathers |
| Contaminant Exposure | Reduced cooling, tracking paths | Regular cleaning, filtered enclosures |
Common Questions About Contactor Coil Failures
Can Coils Be Repaired or Must They Be Replaced?
While theoretically possible to rewind coils, this practice proves economically unviable for standard industrial contactors. The labor costs associated with precision rewinding exceed replacement component costs, and rewound coils rarely achieve original performance specifications. Critical applications demand OEM replacement components with documented quality assurance.
How Do Harmonic Distortion and Power Quality Affect Coil Performance?
Non-linear loads proliferating in modern facilities generate harmonic currents that distort supply voltage waveforms. AC coils designed for sinusoidal excitation exhibit reduced pull-in force and increased heating when subjected to distorted waveforms. Facilities with significant variable frequency drive populations or large rectifier loads should implement harmonic mitigation strategies and potentially specify DC coil contactors for critical applications.
Preventive Maintenance Protocols
Proactive maintenance programs substantially extend contactor coil service life and reduce unplanned downtime. Quarterly thermographic surveys identify coils operating with elevated temperatures before catastrophic failure occurs. Temperature rises exceeding 10°C above adjacent identical equipment warrant investigation.
Annual contact resistance measurements detect deteriorating connections that increase circuit resistance and impose additional thermal stress on coils. Torque verification of all electrical terminations per manufacturer specifications prevents loose connections that generate localized heating.
- Maintain detailed equipment logs documenting energization cycles and operating hours
- Establish baseline electrical measurements for comparison during future assessments
- Implement dust and contaminant removal procedures appropriate to environmental classification
- Verify proper enclosure sealing and gasket integrity in harsh environments
- Schedule replacement before reaching manufacturer-recommended duty cycle limits
Selecting Appropriate Replacement Components
Specification precision determines replacement component longevity and reliability. Voltage rating must match exactly—a 120VAC coil cannot substitute for a 110VAC specification despite apparent similarity. Frequency sensitivity matters; 50Hz coils draw excessive current when operated at 60Hz.
Duty cycle classification—continuous, intermittent, or special—reflects thermal design margins. Continuous-duty coils feature enhanced cooling provisions unsuitable for cost-reduction through intermittent-rated substitutions in applications requiring sustained energization.
Engineering consultants and mechanical contractors specifying equipment for data center infrastructure, healthcare facilities, or manufacturing operations should establish relationships with suppliers offering comprehensive technical support and rapid fulfillment of genuine OEM components. The differentiation between mediocre and exceptional equipment uptime often hinges on parts availability during critical failure events.
Contactor coil troubleshooting electrical systems demands technical competency, diagnostic discipline, and access to quality replacement components. By implementing systematic assessment methodologies and maintaining inventory of critical spares, facility maintenance teams transform potentially catastrophic failures into minor inconveniences resolved within minimal timeframes.
