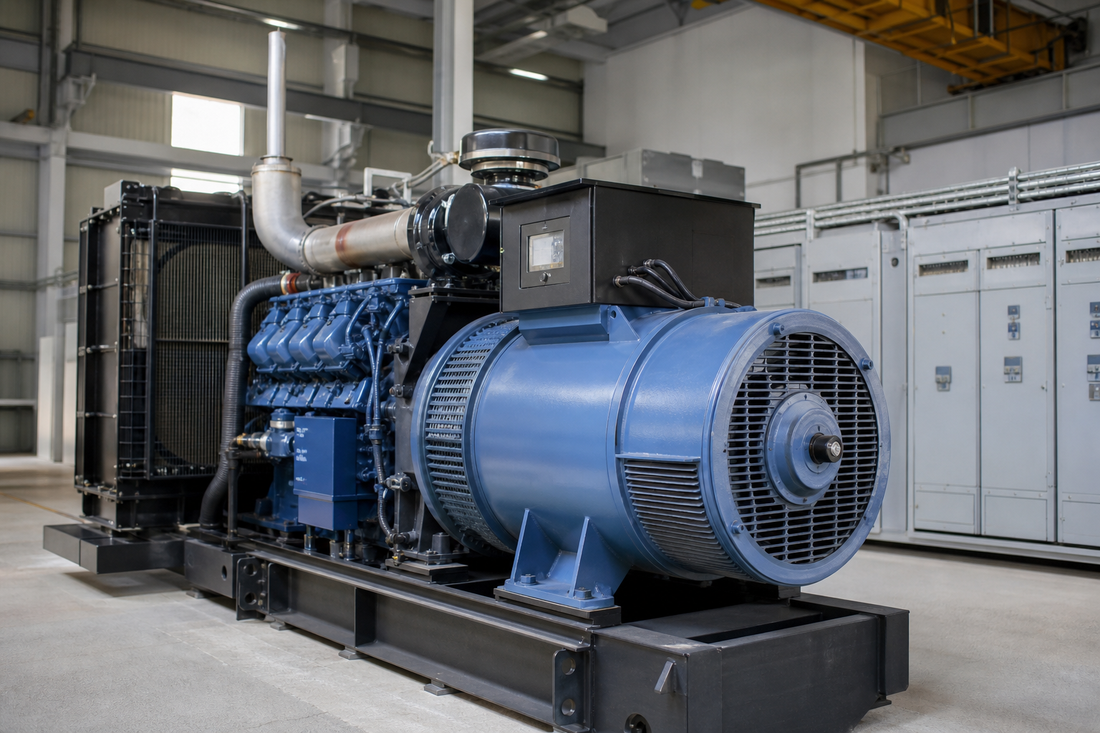

Electric Generator Basics: Understanding Power Systems
Understanding electrical power generation forms the bedrock of reliable facility operations across industries. From healthcare campuses requiring uninterrupted power to data centers demanding consistent voltage stability, the principles governing electric generator functionality remain paramount for professionals tasked with infrastructure resilience.
Generators serve as the backbone of emergency preparedness and off-grid power solutions. Mastering their operational fundamentals enables informed decision-making regarding procurement, maintenance protocols, and system optimization.
Fundamental Operating Principles of Electric Generators
Electric generators operate through electromagnetic induction—a phenomenon discovered by Michael Faraday in 1831. This principle dictates that moving a conductor through a magnetic field produces electromotive force, generating electrical current. Within generator assemblies, rotational mechanical energy transforms into electrical energy through precise interactions between rotor and stator components.
The rotor, affixed to the prime mover shaft, contains field windings that create magnetic flux. As the prime mover—whether diesel engine, gas turbine, or alternative propulsion system—rotates the rotor, magnetic lines of flux cut across stationary stator windings. This cutting action induces voltage in the stator conductors, producing alternating current output.
Excitation systems maintain the magnetic field strength necessary for consistent voltage generation. Self-excited generators derive field current from their own output, while separately-excited systems utilize external power sources. The excitation method profoundly influences voltage regulation characteristics and response to load variations.
Critical Generator Components and Their Functions
Prime Mover Systems
The prime mover constitutes the mechanical power source driving generator rotation. Diesel engines dominate stationary applications due to fuel energy density, reliability, and operational longevity. Natural gas engines present advantages for facilities with pipeline access, offering cleaner combustion and reduced emissions profiles.
Prime mover selection impacts maintenance intervals, fuel storage requirements, and starting characteristics. Turbine-driven generators excel in applications requiring rapid load acceptance, while reciprocating engines provide superior part-load efficiency for installations experiencing variable demand patterns.
Alternator Assembly Architecture
The alternator converts rotational energy into electrical output through electromagnetic coupling. Brushless designs eliminate commutator maintenance requirements while enhancing operational reliability. The stator houses three-phase windings configured for specific voltage outputs, typically 480V for commercial installations or 12,470V for utility-grade systems.
Bearing assemblies support rotor weight and maintain precise air gap tolerances between rotating and stationary components. Temperature monitoring systems prevent bearing degradation from inadequate lubrication or excessive loading conditions. Air filtration protects internal components from particulate contamination that accelerates insulation breakdown.
Voltage Regulation and Control Systems
Automatic voltage regulators (AVRs) maintain output voltage within acceptable tolerances despite load variations. These solid-state controllers monitor terminal voltage and adjust excitation current proportionally, compensating for reactive power demands and conductor voltage drop.
Modern digital AVRs offer programmable parameters for voltage droop characteristics, enabling parallel operation of multiple generator sets. Precision voltage control proves essential for sensitive electronic loads prevalent in data centers and medical facilities where voltage excursions cause equipment malfunction or data corruption.
Power Rating Classifications and Load Characteristics
Generators receive multiple power ratings reflecting operational limitations under different service conditions. Standby ratings apply to emergency backup applications where generators operate fewer than 200 hours annually with variable loading. Prime power ratings accommodate installations where the generator serves as the primary power source with unlimited run time at variable load.
Continuous ratings define maximum sustained output for constant-load applications. Understanding rating distinctions prevents equipment oversizing or undersizing that compromises system economics or reliability.
The relationship between apparent power (kVA), real power (kW), and power factor fundamentally shapes generator specification requirements. A 0.8 power factor means a 500kVA generator delivers 400kW of usable power, with the remaining capacity consumed by reactive loads.
Inductive loads like motors and transformers demand reactive power, reducing the real power available for productive work. Power factor correction capacitors mitigate reactive consumption, maximizing generator utilization efficiency. Facilities housing substantial motor loads benefit significantly from power factor optimization strategies.
Transfer Switch Integration and Power Distribution
Automatic transfer switches (ATS) orchestrate the transition between utility and generator power sources. Upon sensing utility failure, the ATS initiates generator starting sequences and monitors output parameters. Once voltage and frequency stabilize within acceptable windows, the transfer switch shifts the load to generator power.
Transfer switch configurations include open transition designs that briefly interrupt load current during switching, and closed transition systems that momentarily parallel sources for seamless load transfer. Healthcare facilities and data centers typically mandate closed transition technology to prevent momentary outages that disrupt critical operations.
Bypass isolation capabilities allow transfer switch maintenance without removing the connected load from service. This feature proves invaluable for facilities requiring absolute power continuity during maintenance windows.
Paralleling Systems for Enhanced Capacity and Redundancy
Multiple generators operating in parallel provide N+1 redundancy configurations that maintain partial capacity during single-unit failures. Paralleling switchgear synchronizes generator outputs, matching voltage magnitude, frequency, and phase rotation before interconnection.
Load sharing controls distribute kW and kVAR demands proportionally across paralleled units, preventing individual generator overload. Droop characteristics programmed into AVRs and governors create inherent load sharing without requiring communication between units, though modern systems employ digital cross-unit communication for enhanced precision.
| Configuration Type | Redundancy Level | Typical Application |
|---|---|---|
| Single Unit | None | Small commercial facilities |
| N+1 Parallel | One spare unit | Healthcare, manufacturing |
| 2N Configuration | Full redundancy | Tier IV data centers |
| Distributed Generation | Geographic diversity | Campus environments |
Essential Maintenance Practices for Longevity
Systematic maintenance protocols preserve generator readiness and extend operational lifespan. Weekly exercise cycles prevent fuel system degradation and maintain lubrication film integrity on bearing surfaces. Monthly load bank testing validates performance under realistic load conditions, revealing developing issues before they precipitate failures.
Oil analysis programs monitor contamination levels, viscosity degradation, and additive depletion. Trending analysis identifies abnormal wear patterns indicative of impending component failures. Filters require replacement at manufacturer-specified intervals, with accelerated schedules for installations in contaminated environments.
Critical Inspection Points
- Coolant specific gravity and supplemental additive concentrations preventing cavitation erosion
- Battery electrolyte levels and load-test verification of cranking capacity
- Fuel quality testing for microbial contamination and water accumulation
- Breaker contact resistance measurements detecting erosion or misalignment
- Insulation resistance testing of stator windings identifying moisture ingress
Infrared thermography during loaded operation reveals loose connections, unbalanced phases, or compromised insulation before catastrophic failures occur. Vibration analysis detects bearing wear, rotor imbalance, or misalignment conditions affecting long-term reliability.
Selecting Appropriate OEM Replacement Components
Utilizing genuine OEM replacement parts ensures dimensional accuracy, material specifications, and performance characteristics matching original design parameters. Aftermarket alternatives may present initial cost advantages but often compromise reliability through inferior metallurgy or inadequate quality control during manufacturing.
Air filtration elements engineered for specific applications maintain proper flow rates while achieving required particulate capture efficiency. Substituting incorrect filter specifications reduces engine protection or restricts airflow, degrading power output and fuel efficiency.
Circuit breakers and transfer switch components must meet fault current interruption ratings specified for the installation. Undersized breakers fail to protect downstream equipment during fault conditions, while oversized devices may not trip appropriately, allowing equipment damage to progress.
Frequently Asked Questions
How does altitude affect generator performance?
Atmospheric pressure decreases approximately 3% per 1,000 feet elevation gain, reducing air density and oxygen availability for combustion. Naturally aspirated engines experience proportional power derating, while turbocharged systems maintain output to higher altitudes through forced induction compensation. Consult manufacturer derating charts when specifying generators for elevated installations.
What determines appropriate generator sizing for facility loads?
Comprehensive load analysis accounts for connected load magnitude, motor starting inrush currents, harmonic-generating equipment, and anticipated future expansion. Step-loading sequences stagger motor starts, reducing instantaneous demand and permitting smaller generator capacity. Engineering consultants perform detailed calculations considering diversity factors and simultaneous demand characteristics specific to facility operations.
Why do generators require periodic load bank testing?
Light-load operation causes incomplete fuel combustion, creating carbon deposits in exhaust systems and cylinder components. Load banking applies resistive loads approximating nameplate capacity, generating cylinder temperatures sufficient for complete combustion and carbon removal. This preventive measure eliminates wet stacking conditions that degrade performance and reliability over time.
Mastering electric generator basics empowers facility managers, engineering consultants, and contractors to specify appropriate equipment, implement effective maintenance strategies, and ensure power system reliability. The complexity underlying seemingly straightforward generator operation demands thorough understanding for optimal infrastructure performance across mission-critical applications.
