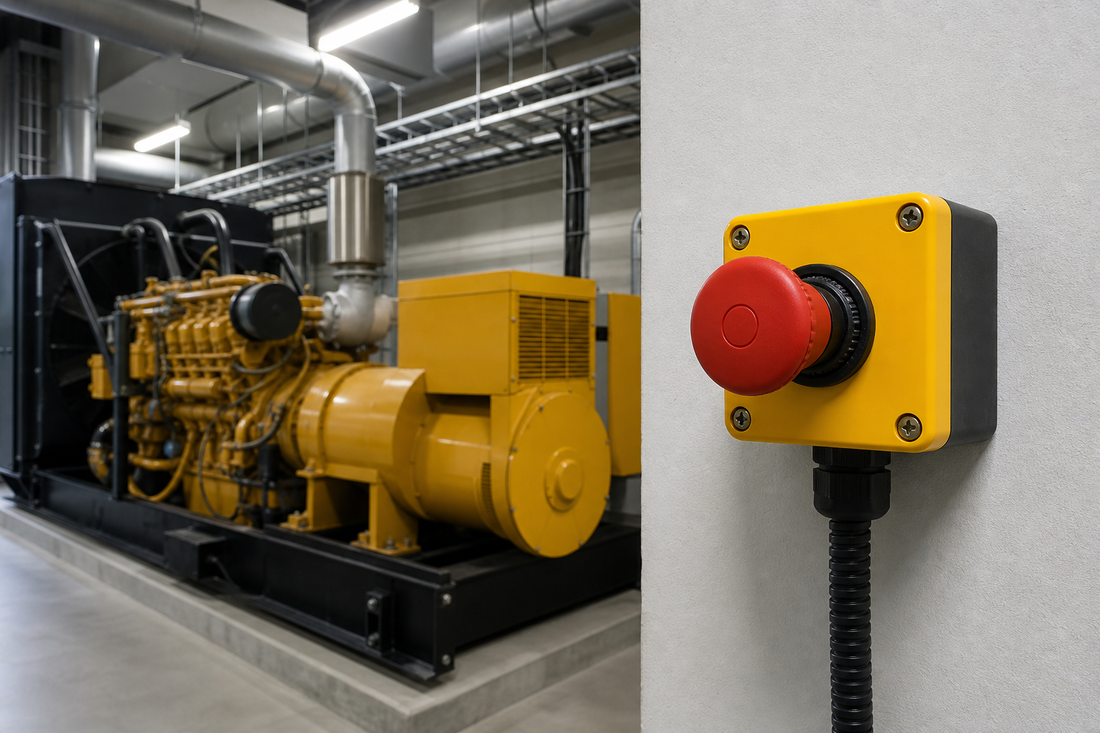

Emergency Stop Systems for Generator Safety
Emergency stop systems represent the critical final safeguard in generator operations, serving as the ultimate intervention mechanism when conventional shutdown protocols fail or hazardous conditions materialize. These life-preserving installations transcend mere convenience—they constitute non-negotiable safety imperatives that protect personnel, infrastructure, and substantial capital investments. For electrical contractors, facility managers, and engineering consultants specifying generator configurations, understanding the nuances of emergency stop system installation proves indispensable.
Fundamental Architecture of Generator Emergency Stop Systems
The quintessential emergency stop (E-stop) system comprises several interconnected components working in harmonious synchronization. At its nucleus lies the actuator—typically a mushroom-head pushbutton rendered in conspicuous red—designed for immediate recognition during exigent circumstances. This actuator interfaces with control circuitry that interrupts both fuel supply and ignition systems simultaneously, ensuring comprehensive shutdown capability.
Modern installations incorporate redundant pathways. The primary circuit terminates electrical power to the fuel solenoid valve, while secondary mechanisms may engage mechanical linkages or pneumatic actuators. This duplication prevents single-point failures from compromising system efficacy. Advanced configurations integrate with building management systems, enabling remote activation and providing telemetry data for post-incident analysis.
Regulatory Compliance and Code Requirements
Installation specifications derive from multiple authoritative sources, with the National Electrical Code (NEC) establishing foundational parameters. Article 700 addresses emergency systems, while Article 702 governs optional standby systems. Both mandate readily accessible disconnect means positioned where operators can reach them without encountering hazardous conditions.
NFPA 110 stipulates additional provisions for emergency power supply systems. Section 5.7.2 specifically addresses emergency shutdown capabilities, requiring conspicuous identification and protection from inadvertent activation. Jurisdictional authorities having jurisdiction (AHJs) may impose supplementary requirements, particularly in healthcare facilities, data centers, and critical infrastructure installations where generator reliability directly impacts life-safety systems.
Strategic Positioning and Accessibility Considerations
Placement decisions dramatically influence emergency stop effectiveness. Primary actuators should occupy locations affording unobstructed access from principal ingress points to the generator enclosure. Electrical contractors must evaluate egress routes, ensuring operators can reach E-stop controls while retreating from dangerous conditions—particularly during fire events or hazardous material releases.
Optimal installations position controls between 42 and 48 inches above finished floor level, conforming to ergonomic standards and ADA accessibility guidelines. Multiple actuator stations become prudent for larger installations or when generator sets occupy enclosed spaces with limited visibility. Real estate developers planning multi-generator paralleling configurations should specify E-stop stations at each end of equipment arrays, preventing scenarios where personnel must traverse dangerous zones to effect shutdown.
Implementing NEC-Compliant Remote Emergency Stop Solutions
For installations requiring code-compliant emergency shutdown capability with simplified installation procedures, purpose-engineered solutions deliver substantial advantages. Remote emergency stop assemblies designed specifically for generator applications incorporate all necessary components in pre-configured packages, eliminating component compatibility concerns and reducing installation complexity.
These specialized assemblies typically feature weather-resistant enclosures rated for harsh environmental exposure, ensuring reliable operation despite temperature extremes, precipitation, or corrosive atmospheres. Pre-wired configurations substantially reduce field labor requirements, compressing installation timelines—a critical consideration for engineering companies managing compressed project schedules. The integration of proper circuit protection and terminal blocks within factory assemblies minimizes troubleshooting complexity during commissioning phases.
Wiring Methodologies and Circuit Protection
Emergency stop circuits demand meticulous attention to conductor selection and protection schemes. Most generator manufacturers specify 18 AWG or larger conductors for control circuits, though voltage drop calculations may necessitate upsizing for extended runs. Shielded cable proves advantageous in electromagnetically noisy environments, preventing spurious activations from radio-frequency interference or transient voltage spikes.
Circuit protection philosophy differs markedly from standard branch circuits. While overcurrent protection remains necessary, nuisance tripping proves intolerable. Coordination studies should verify that protective devices tolerate inrush currents during solenoid energization while responding appropriately to genuine fault conditions. Mechanical contractors installing emergency stop systems must maintain proper separation from power conductors, observing minimum spacing requirements specified in NEC Article 725.
Integration with Generator Control Systems
Contemporary generator controllers employ sophisticated microprocessor architectures with multiple input terminals accommodating emergency stop signals. Understanding the distinction between normally-closed and normally-open contact configurations proves essential. Most controllers expect normally-closed E-stop circuits, where actuation opens the circuit and triggers shutdown. This fail-safe arrangement ensures that wire breaks or connection failures precipitate shutdown rather than leaving equipment vulnerable.
Programmable Logic and Delay Functions
Advanced controllers permit programmable responses to emergency stop activation. Facility managers for data centers and healthcare institutions may configure controlled shutdown sequences that transfer critical loads before complete cessation. Programmable delays allow cooling-down periods for turbocharged engines, preventing thermal shock damage. However, these sophistications must never compromise immediate shutdown capability when genuine emergencies demand instantaneous response.
Verification and Testing Protocols
Installation completion represents merely the inaugural phase. Rigorous functional testing validates system integrity and confirms proper operation. Testing protocols should simulate authentic emergency scenarios, including actuation under load conditions. Maintenance managers must document response times, verifying that fuel interruption occurs within manufacturer-specified parameters—typically under two seconds from button depression to engine cranking cessation.
Periodic retesting at quarterly or semi-annual intervals identifies degradation before failures materialize during actual emergencies. Testing schedules should coincide with routine generator exercise cycles, minimizing disruption while ensuring emergency stop functionality receives regular verification. Documentation requirements extend beyond simple pass-fail notation; comprehensive records should capture actuation force measurements, response timing, and any anomalies observed during testing sequences.
Common Installation Pitfalls and Mitigation Strategies
Several recurring deficiencies plague emergency stop installations, compromising safety margins and inviting regulatory citations. Inadequate weather protection ranks prominently among these shortcomings. Outdoor installations demand NEMA 4X or equivalent enclosures, yet contractors sometimes substitute lesser-rated components to reduce costs. The consequent moisture infiltration precipitates corrosion, contact degradation, and eventual system failure.
Emergency stop systems serve as the last line of defense—their reliability cannot be compromised by expedient shortcuts or value-engineering decisions that subordinate safety to budgetary constraints.
Improper labeling constitutes another prevalent deficiency. NEC mandates permanent, conspicuous identification, yet temporary labels fade or detach over time. Engineering consultants should specify engraved phenolic nameplates or embossed metal labels capable of withstanding decades of environmental exposure. Labeling text should employ terminology consistent with facility emergency action plans, preventing confusion during high-stress scenarios.
Special Considerations for Specific Applications
Different facility types impose unique requirements on emergency stop system design. Healthcare installations governed by NFPA 99 face stringent continuity requirements where inappropriate E-stop activation during surgical procedures could prove catastrophic. These installations may incorporate keyed access or protective covers preventing accidental engagement while maintaining emergency accessibility.
Data Center and Mission-Critical Installations
Data center builders confront the paradoxical challenge of ensuring both robust emergency stop capability and protection against inadvertent activation that could cascade into enterprise-wide outages. Dual-action actuators requiring deliberate two-stage engagement provide effective compromise. Additionally, these installations typically incorporate annunciation systems that broadcast warnings before shutdown completion, providing brief windows for intervention if activation resulted from error rather than genuine emergency.
Cold Storage and Harsh Environment Applications
Facilities operating in temperature extremes—cold storage warehouses, outdoor telecommunications sites, or industrial plants—demand specialized component selection. Standard pushbutton assemblies employ elastomeric seals and lubricants that become brittle or viscous at temperature extremes. Cold-rated components maintain functionality across extended temperature ranges, ensuring reliable operation despite hostile conditions. Similarly, factories and manufacturing environments with substantial airborne particulates require sealed components preventing contamination-induced malfunctions.
Maintenance Requirements and Service Life Expectations
Emergency stop systems demand minimal maintenance, yet complete neglect invites failure. Quarterly inspections should verify actuator freedom of movement, checking for binding or excessive resistance that might impede emergency actuation. Contact surfaces within control circuitry accumulate oxidation over time; periodic actuation during testing cycles disrupts these formations, maintaining low-resistance conduction paths.
Component replacement intervals vary with environmental exposure and actuation frequency. Pushbutton assemblies subjected to outdoor coastal environments may warrant replacement every five to seven years, while climate-controlled indoor installations often exceed fifteen-year service lives. Proactive replacement based on elapsed time proves more prudent than reactive replacement following failure—particularly given the catastrophic consequences if emergency stop capability proves unavailable during genuine emergencies.
| Component | Inspection Frequency | Typical Service Life |
|---|---|---|
| Pushbutton Actuator | Quarterly | 7-15 years |
| Control Circuit Wiring | Annual | 20-25 years |
| Fuel Solenoid Valve | Semi-annual | 10-12 years |
| Enclosure Seals | Annual | 5-10 years |
Cost-Benefit Analysis for Comprehensive Emergency Stop Systems
Investment in properly engineered emergency stop systems delivers returns transcending regulatory compliance. Insurance underwriters increasingly scrutinize generator safety provisions, with comprehensive emergency stop implementations potentially reducing premium costs. More significantly, these systems mitigate catastrophic loss scenarios where generator malfunctions precipitate fires, explosions, or environmental contamination events.
For sports and entertainment venues or educational facilities where public assembly occurs, liability exposure from generator-related incidents reaches staggering proportions. The incremental cost differential between minimally-compliant and comprehensively-engineered emergency stop systems pales compared to potential litigation expenses, remediation costs, and reputational damage following preventable incidents.
Future-Proofing Emergency Stop Installations
As generator technology evolves toward hybrid configurations incorporating energy storage systems and renewable integration, emergency stop systems must accommodate increased complexity. Forward-thinking specifications incorporate expansion capacity for additional control circuits, anticipating future system modifications without requiring complete emergency stop replacement.
Digital communication protocols increasingly supplement or replace hardwired control circuits. Modbus, BACnet, and proprietary manufacturer protocols enable sophisticated monitoring and control capabilities. However, critical safety functions like emergency stop should maintain hardwired independence, ensuring functionality despite network failures or cybersecurity compromises. Hybrid approaches that leverage digital capabilities for monitoring while preserving hardwired shutdown paths offer optimal configurations balancing innovation with reliability.
The trajectory of regulatory evolution consistently trends toward enhanced safety requirements. Installations designed to merely satisfy current code minimums risk obsolescence as standards advance. Engineering consultants and facility managers adopting proactive approaches that exceed current requirements position their installations favorably for future regulatory cycles, avoiding costly retrofits and maintaining uninterrupted operational capability.
