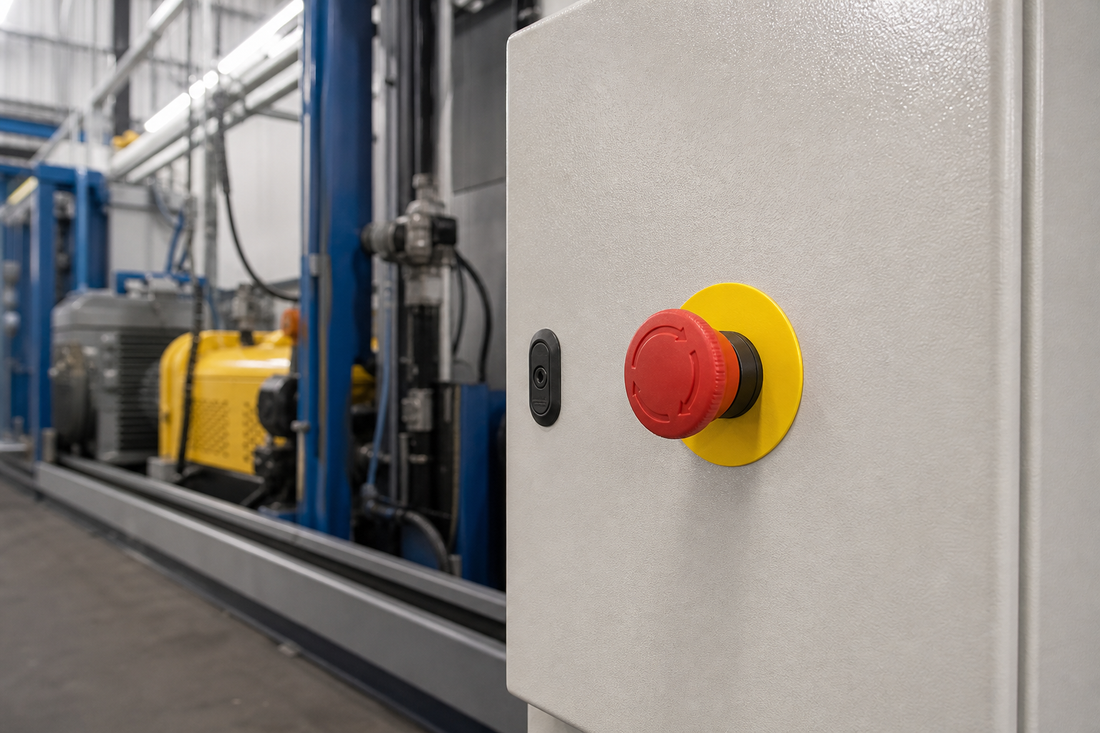

Emergency Stop Systems: Safety Protection for Power Equipment
Understanding Emergency Stop Systems in Industrial Power Applications
Emergency stop systems represent the ultimate failsafe mechanism in industrial power installations, serving as critical protective infrastructure when catastrophic failures threaten personnel safety or equipment integrity. These systems incorporate hardwired circuitry designed to immediately de-energize equipment or initiate controlled shutdown sequences during hazardous conditions. For facility managers overseeing generator installations, data centers, or manufacturing operations, the proper implementation of emergency stop switches transcends mere regulatory compliance—it establishes the foundational layer of operational safety protocols.
The architecture of modern emergency stop systems encompasses multiple components working in concert: actuators, control relays, contactors, and monitoring circuits. Each element must meet stringent performance criteria established by NEMA, IEC, and OSHA standards. Understanding this interconnected ecosystem enables engineering consultants and electrical contractors to design resilient safety systems that function reliably across decades of service life.
Regulatory Framework and Compliance Requirements
Installation of emergency stop switches must adhere to a comprehensive regulatory tapestry that includes OSHA 29 CFR 1910.147 for lockout/tagout procedures, NFPA 70 (National Electrical Code) provisions, and ISO 13850 specifications for emergency stop device design. These regulatory instruments establish minimum performance thresholds while providing standardized methodologies for risk assessment and hazard mitigation.
Beyond federal mandates, facility managers must navigate state-specific amendments and local jurisdiction requirements that may impose additional constraints. Healthcare facilities face particularly rigorous standards under Joint Commission guidelines, while cold storage operations encounter specialized requirements due to extreme environmental conditions. Data center builders must reconcile emergency stop functionality with uptime requirements, often implementing staged shutdown protocols that preserve critical loads while isolating compromised systems.
Core Principles for Emergency Stop Switch Installation
Strategic Positioning and Accessibility
Emergency stop actuators must be positioned within immediate reach of operators under normal working conditions—typically within 1.5 to 2.5 meters of equipment control stations. This ergonomic consideration becomes paramount during emergency scenarios when fractions of a second determine outcome severity. Mounting height should range between 0.8 and 1.7 meters above the working surface, accommodating diverse operator statures and mobility considerations.
For generator installations serving critical infrastructure, multiple emergency stop stations should be distributed throughout the equipment footprint. Mechanical contractors specifying generator systems for sports and entertainment venues must account for rapid egress pathways, ensuring personnel can activate emergency stops without navigating around equipment obstacles during evacuations.
Electrical Design and Wiring Methodologies
Emergency stop circuits demand hardwired implementations utilizing dedicated conductors isolated from standard control wiring. Category-rated safety relays with force-guided contacts provide positive-break action, ensuring circuit interruption even under contact welding scenarios. The control topology should employ negative logic—meaning the emergency stop circuit maintains energization during normal operation and breaks to initiate shutdown, preventing hidden failures from compromising safety functionality.
Conduit systems protecting emergency stop wiring must utilize rigid or intermediate metal conduit (IMC) rather than EMT in industrial environments where mechanical damage risks exist. Engineering companies designing installations for 3D print farms or manufacturing facilities should specify plenum-rated conductors in zones with atmospheric particulate concerns.
Product Spotlight: Pilla Electrical E-Stop Solution
When specifying emergency stop components for generator and power equipment installations, the Pilla Electrical E-Stop represents a robust solution engineered specifically for demanding industrial applications. This emergency stop switch features a heavy-duty mushroom-head actuator with positive mechanical action, ensuring reliable operation across millions of activation cycles. The unit's IP65-rated enclosure provides comprehensive protection against moisture ingress and particulate contamination—essential attributes for installations in challenging environments ranging from healthcare facilities to cold storage operations.
The Pilla E-Stop integrates seamlessly with both legacy and contemporary control systems, offering dual-circuit capability with independently switched contacts. This configuration enables simultaneous control of primary power disconnects and ancillary monitoring systems, providing comprehensive shutdown coordination. For electrical contractors managing installations across diverse facility types, this versatility eliminates the compatibility concerns that often plague emergency stop retrofits.
Installation Best Practices for Maximum Reliability
Pre-Installation Assessment and Documentation
Comprehensive site surveys precede successful emergency stop implementations. Real estate developers commissioning new generator installations should conduct thorough hazard analyses identifying all credible emergency scenarios: mechanical component liberation, electrical fault progression, fuel system breaches, and exhaust system failures. Each identified hazard informs emergency stop placement decisions and determines required response characteristics.
Documentation protocols must capture circuit schematics, terminal designations, wire routing pathways, and testing procedures. This technical repository becomes invaluable during troubleshooting activities and ensures maintenance managers can effectively manage systems throughout operational lifecycles without dependency on original installation personnel.
Mechanical Mounting and Environmental Considerations
Mounting substrates for emergency stop enclosures must withstand vibrational loads transmitted through equipment structures without loosening or fracturing. Facilities experiencing seismic activity require additional bracing and flexible conduit sections preventing stress concentration at terminal entries. Cold storage facilities demand special attention to thermal cycling effects that can compromise thread engagement and gasket compression over time.
Emergency stop switches installed in vibration-prone environments should incorporate spring washers and thread-locking compounds on all mounting hardware, with periodic re-torquing scheduled at six-month intervals during initial service years.
Circuit Testing and Functional Verification
Commissioning procedures must validate every aspect of emergency stop functionality before energizing primary equipment. Testing protocols should include:
- Contact continuity verification in both actuated and reset states
- Insulation resistance measurements exceeding 10 megohms between isolated circuits
- Mechanical actuation force measurement confirming compliance with ISO 13850 specifications
- End-to-end response time validation from actuator engagement through complete load de-energization
- Reset functionality testing ensuring systems cannot inadvertently re-energize
Engineering consultants overseeing installations for education facilities or healthcare campuses should establish witness testing protocols allowing facility stakeholders to observe emergency stop validation, building operational confidence and ensuring personnel understand system capabilities.
Integration with Modern Control Architectures
Contemporary installations increasingly incorporate programmable logic controllers (PLCs) and distributed control systems (DCS) managing sophisticated equipment sequences. Emergency stop integration within these architectures requires careful attention to signal priority hierarchies, ensuring hardwired safety circuits maintain authority over programmed control logic. Safety-rated PLCs offering dedicated emergency stop input modules provide diagnostic capabilities while preserving the hardwired safety integrity essential for compliance.
Data center builders implementing emergency power off (EPO) systems face unique challenges reconciling instantaneous shutdown requirements with graceful degradation strategies that preserve data integrity. Staged shutdown sequences can be initiated through emergency stop activation, triggering orderly server shutdowns before disconnecting primary power sources.
Maintenance Programs and Lifecycle Management
Emergency stop systems demand rigorous preventive maintenance regimens ensuring readiness during actual emergencies. Monthly visual inspections should verify actuator accessibility, enclosure integrity, and labeling visibility. Quarterly functional tests validate mechanical operation and electrical continuity, while annual comprehensive assessments examine contact condition, wiring insulation integrity, and mounting hardware torque.
Maintenance managers should establish formal testing schedules aligned with equipment criticality and operational risk profiles. Generator installations supporting mission-critical loads in hospitals or telecommunications facilities warrant more frequent validation than backup systems serving non-essential loads.
| Maintenance Activity | Frequency | Key Verification Points |
|---|---|---|
| Visual Inspection | Monthly | Physical damage, obstruction clearance, label legibility |
| Functional Testing | Quarterly | Actuation force, contact operation, reset functionality |
| Comprehensive Assessment | Annually | Contact resistance, insulation testing, torque verification |
Common Implementation Pitfalls and Avoidance Strategies
Inadequate documentation represents the most pervasive implementation failure. Electrical contractors must resist schedule pressures that encourage abbreviated documentation, recognizing that comprehensive records prove essential when personnel turnover occurs or emergency situations demand rapid troubleshooting.
Another frequent deficiency involves inadequate operator training regarding emergency stop functionality and reset procedures. Facility managers should implement comprehensive training programs ensuring all personnel understand when emergency stop activation is appropriate, how to execute activation under stress conditions, and the proper protocols for system restoration following emergency events.
Mixing normally open and normally closed contact configurations without proper documentation creates troubleshooting nightmares and potentially compromises safety functionality. Standardizing contact utilization patterns across installations simplifies maintenance activities and reduces the likelihood of wiring errors during modifications.
