Essential Automatic Transfer Switch Components for Data Centers (Complete Technical Guide)

 Introduction

In a data center, power failure isn’t just an inconvenience—it’s a direct threat to uptime, data integrity, and revenue. Even a few seconds of interruption can take down servers, corrupt transactions, or trigger cascading system failures.

That’s why the automatic transfer switch (ATS) is one of the most critical pieces of infrastructure in any data center power system. But here’s the reality: most failures don’t come from the ATS unit as a whole—they come from individual components wearing out, failing, or being improperly specified.

Understanding these components isn’t just theoretical. In real-world generator-backed systems—especially in the 250 kW to 2 MW range—component-level reliability is what separates a smooth transfer from a costly outage.

 What Is an Automatic Transfer Switch and Why It Matters

An automatic transfer switch is responsible for transferring electrical load from the utility source to a backup generator when power is lost—and then safely switching back once utility power is restored.

In data centers, ATS systems operate under stricter requirements than typical commercial setups:

• Voltage levels: Commonly 208V, 400V, or 480V (3-phase)
• Current ratings: Typically 400A to 4000A depending on facility size
• Transfer time: Usually 3–10 seconds (bridged by UPS systems)
• System design: Often integrated into N+1 or 2N redundancy architectures

In practice, the ATS doesn’t work alone. It’s part of a chain:

• Utility power fails
• UPS carries the load instantly
• Generator starts (typically within 5–10 seconds)
• ATS transfers load once generator is stable

If any ATS component fails during that sequence, the entire system is at risk.

Key ATS Components (And What They Actually Do)

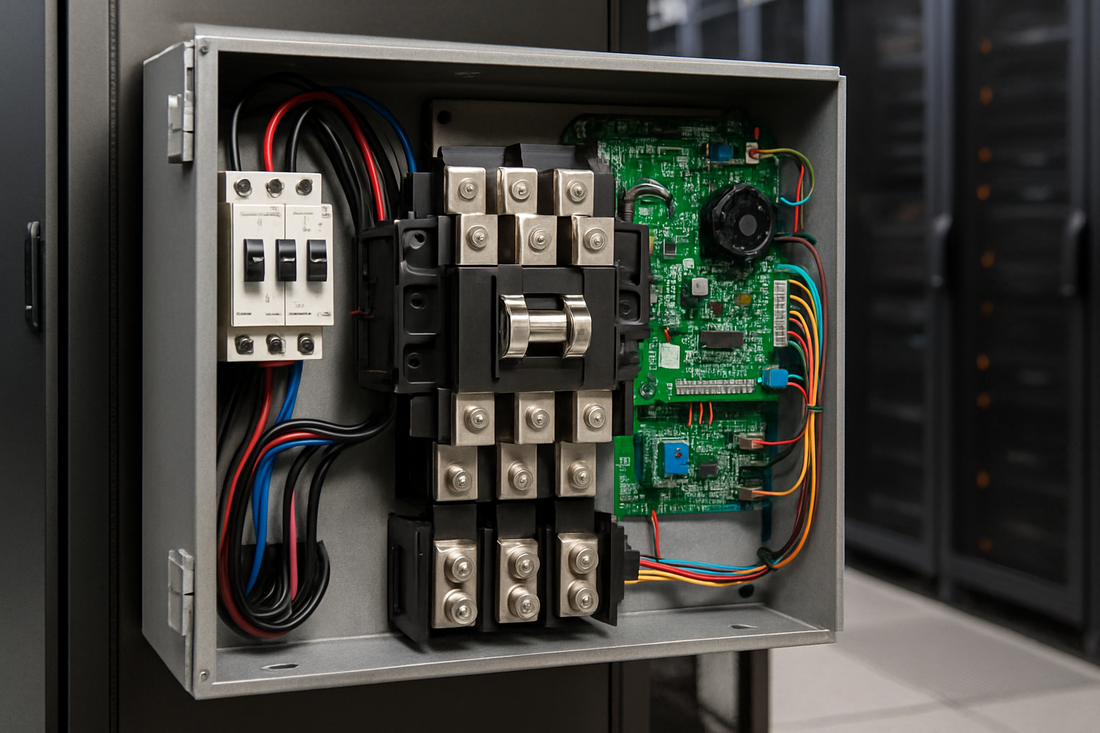

1. Switching Mechanism (Contact Assembly)

This is the core of the ATS—the physical mechanism that transfers load between power sources.

• Typically rated from 400A to 4000A
• Built with silver alloy contacts for conductivity and arc resistance
• Designed to handle high inrush currents

In real applications: Contact wear is one of the most common failure points. In high-load environments (e.g., 1000A+), repeated transfers can cause pitting, carbon buildup, and eventual contact welding.

2. Controller (ATS Brain)

The controller monitors power conditions and initiates transfers.

Key functions:

• Voltage sensing (undervoltage, overvoltage)
• Frequency monitoring (typically 50/60 Hz tolerance)
• Time delays (start delay, transfer delay, retransfer delay)
• Generator start signal

Modern controllers often include:

• Digital displays
• Modbus or SNMP communication
• Remote monitoring integration

Typical failure mode:

Controller board failure due to voltage spikes or aging components.

3. Voltage and Frequency Sensors

These sensors detect when utility power is no longer within acceptable limits.

Typical thresholds:

• Voltage drop below 80–90% of nominal
• Frequency deviation beyond ±2–3 Hz

In data centers, sensitivity is tighter to prevent unnecessary transfers.

4. Control Relays and Logic Circuitry

Relays act as intermediaries between the controller and mechanical components.

They handle:

• Start/stop signals
• Transfer sequencing
• Safety interlocks

Real-world issue: Relay contacts degrade over time, leading to delayed or failed transfers.

5. Power Supply Module

Provides control power to the ATS system.

• Typically 24V DC or 120V AC
• May include battery backup

Failure here can render the entire ATS non-functional, even if other parts are intact.

6. Arc Suppression System

Controls electrical arcs during switching.

Includes:

• Arc chutes
• Magnetic blowouts
• Insulated chambers

Poor arc suppression leads to contact damage and reduced lifespan.

 Key Factors to Consider in Data Center ATS Systems

• Amperage rating: Size at least 20–25% above continuous load
• Voltage rating: Match system (208V / 400V / 480V)
• Short-circuit rating (kAIC): Typically 25kA–65kA
• Transfer type: Open vs closed transition
• Mechanical durability: Rated cycle life
• Environmental conditions: Heat, dust, humidity
• Integration: UPS compatibility and monitoring systems

Step-by-Step: How an ATS Works in a Data Center

1. Utility Power Fails - Voltage drops below threshold

2. Controller Detects Failure - Confirms it’s not a transient issue

3.  Generator Starts - Reaches stable output (5–10 seconds)

4. Transfer Occurs - Load shifts to generator

5. UPS Bridges the Gap - Prevents downtime

6. Utility Power Returns - System verifies stability

7. Retransfer to Utility - Generator enters cooldown

 Common Problems (and What Causes Them)

Contact Wear and Pitting

• Caused by frequent load transfers
• Leads to overheating and failure

Controller Failure

• Caused by surges or aging electronics
• Results in failed or delayed transfers

Coil or Actuator Failure

•  Mechanical fatigue or voltage issues
• Prevents switching action

 False Transfers

• Caused by poor calibration or noise
• Leads to unnecessary generator use

 Relay Degradation

• High cycle counts
• Causes unreliable control signals

Expert Tips (From Real Applications)

• Most users overlook contact inspection intervals. Inspect every 6–12 months in systems above 800A
• Avoid undersizing ATS units. Maintain at least 20–25% headroom
• Ensure generator-ATS coordination. Unstable generator output can delay transfers
• Don’t rely solely on UPS masking. ATS issues can go unnoticed
• Perform regular load testing. Monthly or quarterly testing is ideal

How to Choose the Right ATS Components

Small Data Rooms (50–150 kW)

•  ATS: 100A–400A
• Basic controller
• Open transition

Mid-Size Data Centers (150–750 kW)

• ATS: 400A–1200A
• Digital controller
• Enhanced monitoring

Large Facilities (750 kW – 2 MW+)

• ATS: 1200A–4000A
• Advanced controllers
• Redundant configurations

Practical insight:

Using properly rated replacement components helps extend system life without full replacement.

FAQ

What is the most common ATS component failure?

 Contact wear due to repeated load transfers.

How often should ATS components be maintained?

 Every 6–12 months, depending on usage.

What size ATS is used in data centers?

 Typically 100A to 4000A+, depending on load.

 Can an ATS fail even if the generator works?

 Yes. If components fail, the load won’t transfer.

 Do data centers use open or closed transition ATS?

 Most use open transition with UPS backup; critical systems may use closed transition.

Conclusion

In data centers, the automatic transfer switch is more than just a backup device—it’s a critical control point in the entire power system. And while the ATS unit gets most of the attention, it’s the individual components—contacts, controllers, relays, and sensors—that determine whether it performs when it matters most.

Failures rarely happen without warning. They typically result from:

• Undersized components
• Lack of maintenance
• Ignored wear indicators

Understanding these components—and choosing the right ones—ensures reliable operation when the grid goes down.

Because in a data center, power reliability isn’t optional—it’s everything.
