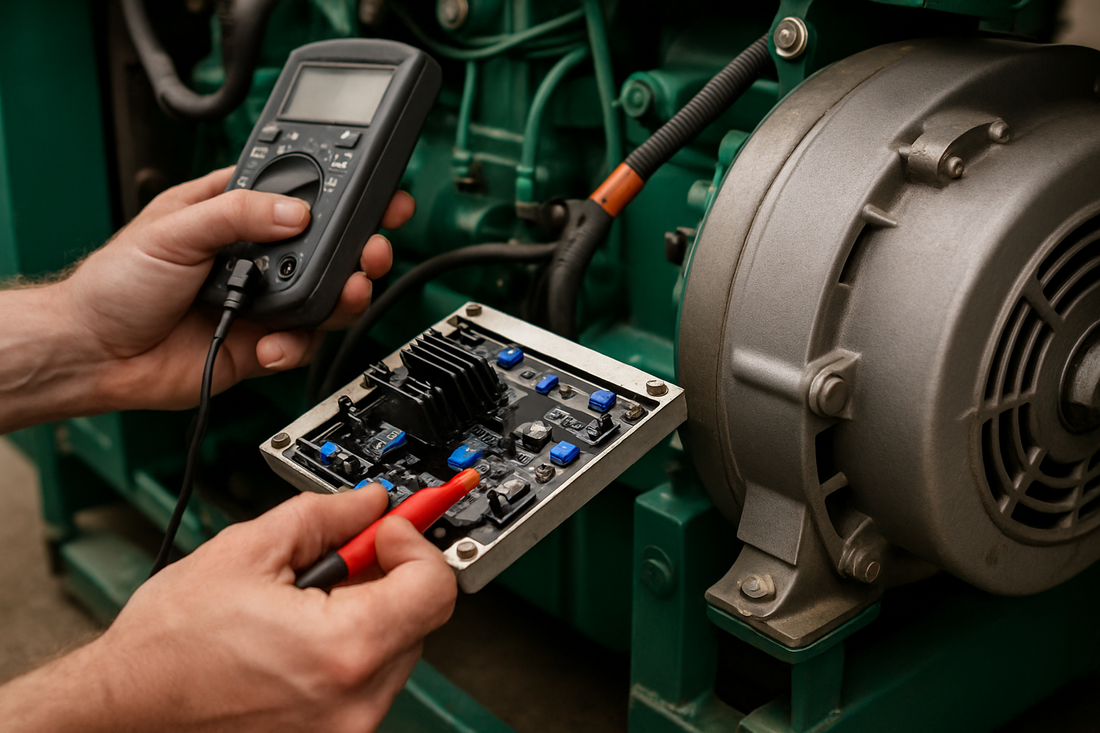

Essential AVR Troubleshooting for Generator Voltage Issues
Understanding Automatic Voltage Regulator Fundamentals
Automatic voltage regulators serve as the electrical heart of generator systems, maintaining consistent output voltage despite fluctuating loads and operating conditions. These sophisticated control devices monitor generator output continuously, adjusting excitation current to the alternator's field windings when voltage deviations occur. Understanding AVR functionality becomes crucial for electrical contractors and facility managers who depend on reliable backup power systems.
The excitation system operates through electromagnetic principles, where the AVR modulates field current to maintain predetermined voltage setpoints. Modern units incorporate advanced sensing circuits that detect voltage variations within milliseconds. When load changes occur, the sensing circuit transmits correction signals to the power stage, which subsequently adjusts field excitation to compensate for voltage drift.
Common Generator Voltage Problems
Voltage Fluctuation Symptoms
Generator voltage irregularities manifest through various observable symptoms that electrical contractors encounter frequently. Flickering lights indicate rapid voltage oscillations, while equipment shutdowns suggest undervoltage conditions. Overvoltage scenarios often trigger protective relay operations, causing unexpected system disconnections.
Load-dependent voltage variations present unique challenges for facility managers. Heavy motor starting creates temporary voltage sags that properly functioning AVRs should correct within seconds. Persistent voltage instability during normal operations typically indicates AVR malfunctions requiring immediate attention.
Root Cause Analysis
Systematic troubleshooting begins with identifying whether voltage problems originate from the AVR, excitation system, or generator components. Exciter brush wear represents a common culprit, creating intermittent connections that disrupt field current flow. Rotating rectifier failures similarly compromise excitation stability, particularly in brushless generator configurations.
Environmental factors significantly impact AVR performance. Excessive ambient temperatures cause semiconductor junction degradation, while moisture ingress corrodes circuit board traces. Vibration-induced solder joint fatigue creates intermittent connections that manifest as erratic voltage regulation.
Essential Diagnostic Procedures
Voltage Measurement Techniques
Accurate voltage measurements form the foundation of effective troubleshooting protocols. True RMS digital multimeters provide precise readings across varying load conditions, while oscilloscopes reveal voltage waveform distortions invisible to standard meters. Measurement points should include generator output terminals, AVR sensing inputs, and exciter field connections.
Load bank testing validates AVR performance under controlled conditions. Progressive loading from no-load to full-rated capacity exposes regulation deficiencies that intermittent natural loads might mask. Recording voltage values at 25%, 50%, 75%, and 100% load increments creates comprehensive performance profiles.
Advanced Testing Methods
Insulation resistance testing using meggers identifies compromised winding integrity before catastrophic failures occur. Field winding resistance measurements detect turn-to-turn faults that compromise magnetic field uniformity. Comparative resistance readings between phases reveal asymmetrical conditions affecting voltage balance.
Professional troubleshooting requires systematic documentation of all measurements and observations. Pattern recognition emerges from detailed records that correlate environmental conditions, load profiles, and failure modes over time.
Basler BE350 AVR Solution
The Basler BE350 AVR represents a robust replacement solution for facilities experiencing chronic voltage regulation issues. This analog voltage regulator delivers exceptional performance in demanding industrial environments where reliability cannot be compromised. Engineering consultants frequently specify the BE350 for its proven track record in healthcare facilities, data centers, and critical infrastructure applications.
This versatile unit accommodates various excitation systems while maintaining tight voltage regulation tolerance. The BE350's thermal protection features prevent damage during extreme operating conditions, extending service life significantly compared to standard regulators. Its straightforward adjustment procedures enable quick commissioning by qualified electrical contractors.
Step-by-Step Troubleshooting Protocol
Initial Safety Procedures
Generator troubleshooting demands strict adherence to electrical safety protocols. Lockout/tagout procedures must isolate all energy sources before accessing internal components. Personal protective equipment including arc-rated clothing becomes mandatory when working on energized systems during operational testing.
Verification of proper grounding prevents personnel injury and equipment damage. Temporary grounding devices should connect to verified earth grounds, not structural steel or questionable ground references. Atmospheric conditions require careful consideration, as moisture increases electrical hazards substantially.
Systematic Testing Approach
Begin troubleshooting with no-load voltage measurements at the generator terminals. Readings should match nameplate specifications within ±5% tolerance. Significant deviations indicate fundamental excitation problems requiring immediate investigation before proceeding with load testing.
| Test Parameter | Acceptable Range | Action Required |
|---|---|---|
| No-load Voltage | ±5% of nominal | Adjust AVR if outside range |
| Voltage Regulation | ±3% from no-load to full-load | Check droop settings |
| Field Current | Within manufacturer specs | Verify exciter operation |
Progressive load application reveals regulation characteristics under varying conditions. Monitor voltage stability during load transitions, noting any oscillations or settling time abnormalities. Excessive overshoot during load rejection suggests inadequate damping or incorrect compensation settings.
Advanced Troubleshooting Techniques
Excitation System Analysis
Field forcing capabilities determine how quickly the AVR responds to voltage disturbances. Insufficient forcing reduces system stability, particularly during motor starting or sudden load changes. Oscillographic analysis reveals excitation system dynamics that static measurements cannot detect.
Brushless excitation systems require specialized diagnostic approaches. Rotating rectifier assemblies operate in harsh environments where centrifugal forces and thermal cycling cause premature failures. Infrared thermography identifies overheating diodes before complete failure occurs.
Control Circuit Diagnostics
Modern AVRs incorporate sophisticated feedback loops that maintain voltage stability. Sensing transformer accuracy directly affects regulation performance, while incorrect CT ratios cause proportional voltage errors. Verify sensing circuit integrity through comparative measurements and signal tracing techniques.
Compensation networks within AVR circuits optimize transient response and steady-state accuracy. Component aging alters network characteristics, potentially causing instability or poor regulation. Capacitor equivalent series resistance increases with age, affecting high-frequency response characteristics.
Preventive Maintenance Strategies
Proactive maintenance programs significantly reduce emergency repair situations that facility managers face. Regular inspection schedules should include visual examination of all connections, cleaning of air filters, and verification of cooling system operation. Environmental monitoring helps identify conditions that accelerate component degradation.
- Monthly visual inspections for signs of overheating or corrosion
- Quarterly voltage regulation testing under various load conditions
- Annual insulation resistance testing of all windings
- Biannual replacement of air filters and cleaning of cooling surfaces
Trending analysis of operational parameters reveals developing problems before failures occur. Voltage regulation drift, increasing field current requirements, or extended settling times indicate impending component failures. Documentation systems enable pattern recognition that supports predictive maintenance strategies.
Professional Support and Parts Availability
Successful troubleshooting often requires immediate access to quality replacement components and expert technical support. OEM replacement parts ensure compatibility and reliability that aftermarket alternatives cannot guarantee. Fast shipping capabilities minimize downtime during critical repair situations.
Technical expertise becomes invaluable when complex interactions between generator components create unusual failure modes. Experienced support teams help electrical contractors and facility managers navigate challenging diagnostic scenarios efficiently. Competitive pricing on genuine replacement parts supports cost-effective maintenance programs while maintaining system reliability.
