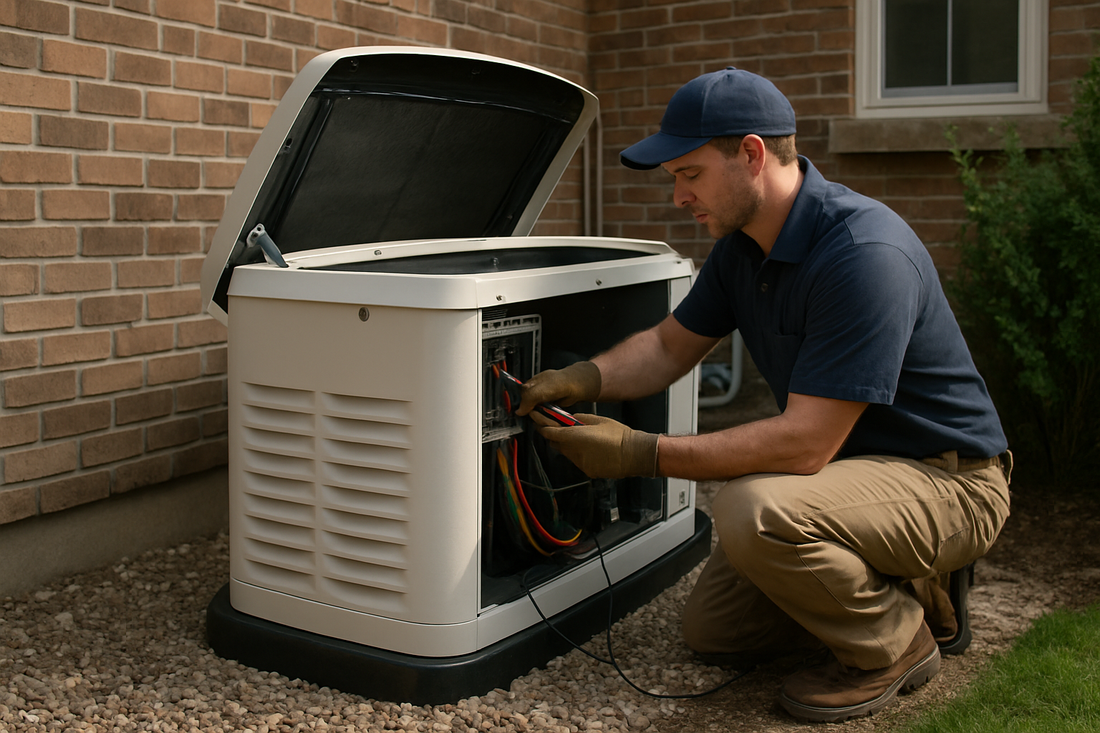

Generator Installation Process: Complete Guide
Understanding Generator Power Requirements and Site Assessment
Proper generator installation begins with meticulous load calculation and comprehensive site evaluation. Electrical contractors and facility managers must first determine the critical electrical loads that require uninterrupted power during utility outages. This process involves analyzing amperage requirements, voltage specifications, and power factor considerations for essential equipment.
Load bank testing capabilities become crucial during this phase. A thorough electrical audit should catalog all critical systems including HVAC units, refrigeration systems for cold storage facilities, life safety equipment in healthcare environments, and mission-critical servers in data centers. The cumulative load calculation determines the minimum generator capacity required, typically expressed in kilowatts (kW) or kilovolt-amperes (kVA).
Professional tip: Always include a 25% safety margin above calculated loads to accommodate future expansion and prevent generator overloading during peak demand periods.
Site assessment encompasses environmental factors that directly impact installation methodology. Proximity to property lines, setback requirements from combustible materials, and accessibility for maintenance operations must align with local fire codes and manufacturer specifications. Acoustic considerations become paramount in residential areas or noise-sensitive facilities like healthcare institutions.
Fuel System Integration Planning
Fuel delivery infrastructure requires careful coordination with local utilities and regulatory bodies. Natural gas installations necessitate coordination with utility providers for service line extensions or pressure upgrades. Diesel fuel systems demand secondary containment provisions, fuel polishing considerations, and compliance with environmental regulations.
The fuel system design must accommodate automatic transfer switch activation timing. Starting sequence coordination ensures seamless transition from utility power to generator power within predetermined time parameters, typically 10-15 seconds for most commercial applications.
Electrical Integration and Transfer Switch Configuration
Automatic transfer switches represent the critical nexus between utility power and emergency generation. These sophisticated devices monitor utility voltage, frequency, and phase relationships continuously. When utility power degrades beyond acceptable parameters, the transfer switch initiates generator startup sequences and manages load transfer operations.
Service entrance coordination requires detailed analysis of existing electrical infrastructure. Engineers must evaluate main breaker capacity, available fault current, and coordination with upstream protective devices. The generator's output characteristics must harmonize with facility distribution voltage and frequency requirements.
Grounding and Bonding Protocols
Electrical grounding systems ensure personnel safety and equipment protection during operation. The generator grounding electrode system must integrate with existing facility grounding infrastructure without creating ground loops or potential differences that could damage sensitive electronic equipment.
Separately derived system requirements apply when generators operate in isolation from utility grounding systems. This configuration necessitates dedicated grounding electrodes and equipment bonding jumpers sized according to National Electrical Code specifications. Bonding jumpers connect non-current-carrying metal components to eliminate potential voltage differences during fault conditions.
Mechanical Installation and Ventilation Requirements
Generator positioning demands consideration of multiple mechanical factors including vibration isolation, thermal management, and maintenance accessibility. Concrete pads must provide adequate support while incorporating vibration dampening materials to minimize structure-borne noise transmission.
Radiator cooling systems require unobstructed airflow paths with sufficient clearances for thermal dissipation. Mechanical contractors must ensure adequate ventilation for combustion air supply and exhaust gas removal. Exhaust systems must comply with emission regulations while preventing back-pressure conditions that reduce engine performance.
| Generator Size (kW) | Minimum Clearance (ft) | Ventilation CFM |
|---|---|---|
| 20-100 | 3 | 2,500 |
| 101-500 | 4 | 5,000 |
| 501-1000 | 5 | 10,000 |
Enclosure and Weather Protection Systems
Weather-resistant enclosures protect generator components from environmental exposure while maintaining operational accessibility. Sound-attenuated enclosures become essential in noise-sensitive applications, incorporating acoustic materials that reduce sound emissions without restricting cooling airflow.
Enclosure ventilation systems must prevent moisture accumulation while maintaining optimal operating temperatures. Louver systems with weather-resistant designs allow airflow while excluding precipitation and debris infiltration.
Testing, Commissioning, and Documentation Procedures
Comprehensive commissioning validates all installation components through systematic testing protocols. Initial startup procedures verify fuel system operation, cooling system functionality, and electrical output characteristics under various load conditions.
Load bank testing confirms generator capacity and validates automatic transfer switch operation under simulated outage conditions. Progressive loading tests verify voltage regulation, frequency stability, and thermal performance across the generator's operating range.
Documentation and Training Requirements
Installation documentation must include comprehensive as-built drawings, equipment specifications, and maintenance schedules. Facility managers require detailed operating procedures and emergency contact information for service support.
- Electrical single-line diagrams showing transfer switch configuration
- Fuel system schematics with shutoff valve locations
- Generator control panel operation procedures
- Preventive maintenance scheduling protocols
- Parts inventory recommendations for critical components
Operator training ensures facility personnel understand normal operation, alarm responses, and emergency shutdown procedures. This knowledge proves invaluable during actual power outages when immediate response capabilities determine system effectiveness.
Ongoing Maintenance and Performance Optimization
Regular maintenance protocols ensure long-term reliability and regulatory compliance. Weekly exercise cycles maintain engine readiness while validating automatic transfer switch functionality. These brief operational periods circulate fluids, charge batteries, and verify control system operation.
Filter replacement schedules for air, fuel, and oil filtration systems prevent contamination-related failures. OEM replacement parts ensure compatibility and reliability while maintaining warranty coverage. Competitive pricing for genuine components supports cost-effective maintenance programs without compromising system integrity.
Performance trending identifies gradual deterioration before catastrophic failures occur. Regular analysis of operating parameters including oil pressure, coolant temperature, and electrical output characteristics enables predictive maintenance strategies that minimize downtime and repair costs.
