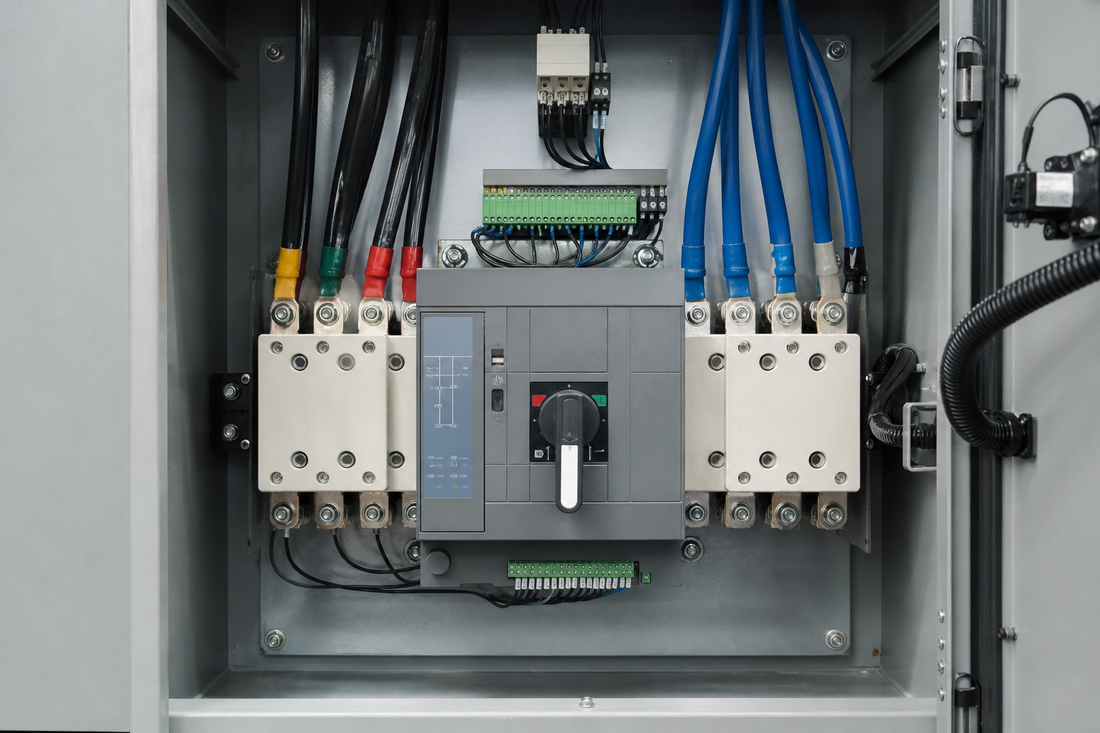

How Automatic Transfer Switches Work: Complete Guide

When primary power fails, the consequences can range from inconvenient to catastrophic. For facilities requiring uninterrupted electrical service, automatic transfer switches (ATS) serve as the critical nexus between utility power and emergency generation systems. Understanding their operational mechanisms proves essential for electrical contractors, facility managers, and engineering professionals tasked with maintaining power continuity.

An automatic transfer switch functions as an intelligent sentinel, continuously monitoring power quality and executing seamless transitions between power sources without human intervention. This comprehensive guide elucidates the intricate workings of these indispensable devices.

Fundamental Architecture of Automatic Transfer Switches

The architecture of an ATS comprises several integral components working in concert. At its core lies a sophisticated control panel equipped with voltage and frequency sensing circuits that perpetually evaluate incoming power from both the utility and generator sources. The mechanical switching mechanism—typically employing either solenoid-driven contactors or motor-operated mechanisms—physically transfers the electrical load between sources.

Modern units incorporate microprocessor-based controllers that execute complex decision algorithms within milliseconds. These controllers analyze parameters including voltage magnitude, frequency stability, phase rotation, and waveform quality. The physical transfer mechanism must withstand substantial electrical stresses, as it interrupts and re-establishes circuits carrying the facility's entire electrical load.

Sourcing Quality Transfer Switch Components

Maintaining and specifying automatic transfer switches requires access to reliable OEM replacement parts and components. Whether you're managing a healthcare facility requiring hospital-grade equipment or overseeing a data center with stringent uptime requirements, having dependable suppliers becomes paramount.

Featured Products
Loading products...

For electrical contractors and facility managers seeking comprehensive solutions, accessing a curated selection of transfer switches, breakers, and associated components streamlines both new installations and maintenance operations. This collection addresses the diverse needs of various facility types—from mission-critical data centers to industrial manufacturing environments—ensuring compatibility with major generator manufacturers and adherence to current electrical codes.

The Power Sensing Sequence

The operational cycle initiates with continuous power monitoring. The ATS controller samples the utility voltage typically at intervals measured in milliseconds, creating a real-time assessment of power availability and quality. This vigilant monitoring employs threshold parameters established during commissioning.

Voltage Detection Parameters

Utility power must satisfy multiple criteria to be considered acceptable. Voltage levels must remain within a predetermined bandwidth—commonly 85% to 110% of nominal voltage. Frequency must stabilize within tight tolerances, typically ±2 Hz of the standard 60 Hz in North American applications. Phase imbalance on three-phase systems cannot exceed specified limits without triggering a transfer event.

When any monitored parameter drifts outside acceptable ranges, the controller initiates a time-delay countdown. This intentional delay, adjustable between zero and several seconds, prevents nuisance transfers caused by momentary utility disturbances like brief voltage sags from motor starting or temporary grid fluctuations.

Generator Start Signal Transmission

Upon detecting sustained utility failure, the ATS transmits a start command to the standby generator through dedicated control wiring. This signal activates the generator's starting system—whether battery-powered electric starters or alternative starting mechanisms. Simultaneously, the ATS begins monitoring the generator output terminals for the appearance of stable emergency power.

The Transfer Execution Process

Once the generator achieves operational parameters—producing voltage and frequency within acceptable ranges—the transfer sequence advances to its critical phase. The controller verifies generator stability through a stabilization period, ensuring the alternator has achieved thermal equilibrium and governor control has established frequency regulation.

The transfer event represents a precisely choreographed interruption of the electrical circuit, executed within timeframes measured in milliseconds to seconds depending on switch classification and application requirements.

Open Transition Versus Closed Transition Switching

Most automatic transfer switches employ open transition (break-before-make) logic, where the connection to the utility source opens before establishing the generator connection. This momentary interruption—typically lasting 100 milliseconds or less—prevents paralleling sources of potentially different phase relationships.

Closed transition (make-before-break) switches briefly parallel both sources during transfer, eliminating even momentary interruption. These specialized units require synchronization controls to ensure in-phase connection, making them substantially more complex and expensive. Applications demanding absolutely seamless transitions, such as certain data processing facilities, may specify closed transition technology.

Load Transfer Mechanics

The physical transfer mechanism executes the source changeover through robust electrical contacts rated for the full-load current plus appropriate safety margins. Solenoid-actuated switches employ electromagnetic coils to drive the contact assembly between positions. Motor-operated switches utilize small electric motors coupled to mechanical linkages, offering advantages in larger ampacity ratings where solenoid force requirements become impractical.

Switch Type Typical Ampacity Range Transfer Time Common Applications
Contactor-Based 30A - 400A Less than 100ms Light commercial, residential
Motor-Operated 400A - 4000A+ 5-10 seconds Industrial, large facilities
Closed Transition 100A - 3000A Seamless Data centers, hospitals

Retransfer Operation and Utility Restoration

Following utility power restoration, the ATS does not immediately retransfer the load. An adjustable time delay—often set between 5 and 30 minutes—allows the utility supply to demonstrate stability before reconnecting the facility load. This delay protects against repetitive transfers during utility restoration attempts and permits utility equipment (reclosers, circuit breakers) to complete their protective sequences.

Engine Cool-Down Considerations

After retransfer to utility power, the generator continues operating under no-load conditions for a programmed cool-down interval. This period, typically 5 to 15 minutes, allows the engine to dissipate accumulated heat gradually rather than stopping immediately under full operating temperature. This practice extends engine longevity and prevents thermal shock to critical components.

The ATS subsequently transmits a stop signal to the generator control system, which executes the shutdown sequence. The transfer switch returns to its monitoring state, remaining vigilant for the next utility disturbance.

Advanced Control Features in Modern Systems

Contemporary automatic transfer switches transcend basic transfer functionality, incorporating sophisticated features that enhance operational capability and diagnostic insight. Communication interfaces—including Modbus, BACnet, and Ethernet protocols—enable integration with building management systems and remote monitoring platforms.

Exercise Mode and Periodic Testing

Automatic exercise routines periodically start the generator and may transfer building loads to verify system readiness. These scheduled tests, executable during low-occupancy periods, satisfy maintenance requirements and ensure both generator and ATS remain functional. Some controllers log exercise results and alert maintenance personnel to anomalies requiring investigation.

Load Management Capabilities

Intelligent load management allows prioritization of critical circuits when generator capacity proves insufficient to support the entire facility load. Load shedding algorithms automatically disconnect non-essential circuits, preserving emergency power for life-safety systems, critical processes, and essential equipment. Sequential load application prevents generator overload during startup by bringing loads online incrementally.

Selection Criteria for Specific Applications

Specifying appropriate automatic transfer switch equipment demands careful consideration of application-specific requirements. Healthcare facilities must comply with NEC Article 517 mandates for specific transfer times and redundancy requirements. Data centers necessitate evaluation of transfer speed, load capacity, and communication capabilities aligned with uptime tier classifications.

  • Current rating must accommodate connected load with appropriate derating factors for altitude, ambient temperature, and harmonic content
  • Voltage rating and configuration must match both utility and generator electrical characteristics
  • Transfer time specifications must align with critical load tolerance for power interruption
  • Environmental rating must suit installation location—whether interior electrical room or outdoor weatherproof enclosure
  • Approval listings must satisfy authority having jurisdiction requirements and applicable codes

Maintenance Protocols for Sustained Reliability

Ensuring long-term reliability requires systematic maintenance addressing both electrical and mechanical elements. Periodic inspection of contact surfaces reveals signs of arcing, pitting, or excessive wear warranting component replacement before failure occurs. Mechanical linkages require lubrication per manufacturer specifications, preventing binding that could impede transfer operation.

Electrical connections develop resistance over time through thermal cycling and oxidation. Thermographic surveys identify elevated temperatures at termination points, indicating connections requiring attention. Control circuit verification confirms proper voltage sensing, timer operation, and signal transmission to generator controls.

For facilities managed by engineering teams, maintenance personnel, or contractors responsible for multiple installations, maintaining an inventory of critical replacement components minimizes downtime when service becomes necessary. Breakers, contactors, control boards, and sensing modules represent items warranting stock availability based on equipment criticality.

Conclusion: The Linchpin of Power Continuity

Automatic transfer switches represent far more than simple electrical switches—they embody sophisticated control systems executing complex decisions that protect facilities from power disruption consequences. From the initial sensing of utility anomalies through generator synchronization and eventual retransfer, every operational phase reflects decades of engineering refinement addressing real-world application demands.

For professionals specifying, installing, or maintaining these critical systems, comprehensive understanding of ATS operation enables informed decision-making regarding equipment selection, installation practices, and maintenance protocols. Whether safeguarding patient care in healthcare environments, preserving product integrity in cold storage facilities, or maintaining continuous operations in manufacturing plants, automatic transfer switches stand as silent guardians ensuring power availability when it matters most.
