How Generators Work: Complete Engineering Guide 2026

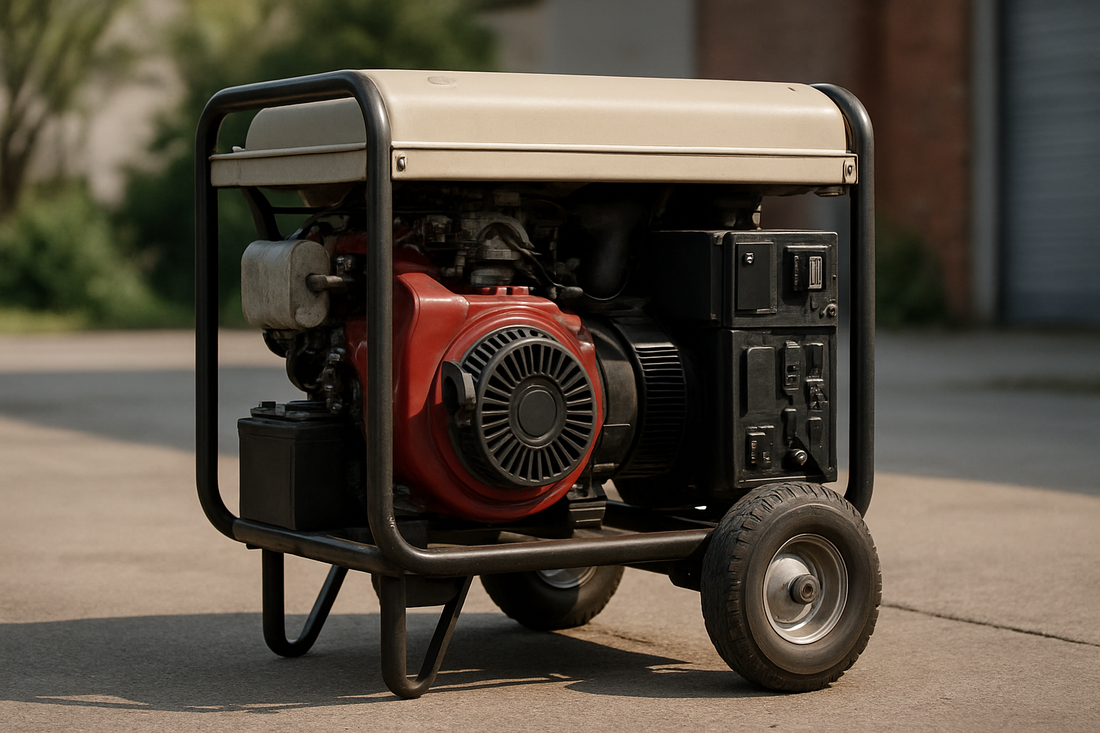

Understanding Generator Fundamentals

Generators represent sophisticated electromechanical devices that convert mechanical energy into electrical energy through electromagnetic induction principles. This transformation occurs within carefully engineered systems that harness rotational motion to produce alternating current electricity.

At its core, every generator operates on Faraday's law of electromagnetic induction. When a conductor moves through a magnetic field, it generates an electromotive force (EMF). Professional-grade generators utilized in commercial and industrial applications leverage this fundamental physics principle through precisely manufactured components designed for reliability and longevity.

Modern generators incorporate advanced control systems, voltage regulation mechanisms, and protective circuits that ensure stable power delivery. These sophisticated machines serve as critical infrastructure components in data centers, healthcare facilities, manufacturing plants, and emergency backup systems where power continuity remains paramount.

Essential Components of Generator Systems

Prime Mover Assembly

The prime mover constitutes the mechanical power source driving the generator's rotation. Diesel engines dominate commercial applications due to their exceptional fuel efficiency and torque characteristics. These internal combustion engines feature precision-engineered components including fuel injection systems, turbochargers, and sophisticated engine management systems.

Natural gas engines provide an alternative for facilities requiring cleaner emissions or continuous operation with utility gas supplies. Gas turbines serve specialized applications demanding high power density ratios, particularly in industrial cogeneration systems.

Alternator and Rotor Configuration

The alternator houses the electromagnetic components responsible for electrical generation. Synchronous alternators feature wound rotors with field windings that create magnetic fields when energized. These rotating magnetic fields intersect with stator windings, inducing voltage through electromagnetic induction.

Brushless excitation systems eliminate carbon brush maintenance requirements while providing superior voltage regulation. Electronic voltage regulators monitor output parameters continuously, adjusting field current to maintain stable voltage under varying load conditions.

Professional generators typically operate at 1800 RPM (60 Hz) or 1500 RPM (50 Hz), with four-pole configurations providing optimal balance between size, efficiency, and harmonic distortion characteristics.

Control and Protection Systems

Advanced generator control modules integrate microprocessor-based systems monitoring critical parameters including voltage, frequency, oil pressure, coolant temperature, and fuel levels. These intelligent controllers execute automatic start sequences, load management protocols, and shutdown procedures.

Protective relaying systems safeguard against overcurrent conditions, ground faults, reverse power flow, and frequency excursions. Circuit breakers with electronic trip units provide selective coordination with downstream protective devices, ensuring system reliability.

Electromagnetic Induction Principles

Electromagnetic induction forms the theoretical foundation underlying all electrical generation. When magnetic flux linkage through a conductor loop changes, an induced voltage appears across the conductor terminals. This phenomenon enables mechanical energy conversion into electrical energy.

In rotating machinery, the magnitude of induced EMF depends upon magnetic field strength, conductor length within the magnetic field, and relative velocity between conductors and magnetic fields. The mathematical relationship follows the equation: E = BLV, where E represents induced voltage, B signifies magnetic flux density, L indicates conductor length, and V denotes velocity.

Three-phase generators utilize spatially displaced windings positioned 120 electrical degrees apart. This configuration produces balanced three-phase voltage systems essential for industrial power distribution. The rotating magnetic field creates sinusoidal voltage waveforms with consistent phase relationships.

Generator Types and Applications

Synchronous Generators

Synchronous generators maintain constant rotational speed proportional to system frequency. These machines excel in applications requiring precise frequency control and reactive power support. Salient pole construction suits low-speed applications, while cylindrical rotor designs accommodate high-speed turbine applications.

Automatic voltage regulators (AVRs) maintain terminal voltage within acceptable tolerances despite load variations. These closed-loop control systems adjust excitation current based on voltage feedback, ensuring stable electrical output characteristics.

Induction Generators

Induction generators operate above synchronous speed, delivering power to electrical systems through slip-dependent mechanisms. These robust machines require external reactive power sources but offer simplified construction and maintenance advantages.

Self-excited induction generators utilize capacitor banks for reactive power compensation in standalone applications. This configuration suits renewable energy installations where grid connectivity remains unavailable.

Power Generation Process

Stage Process Key Parameters
Fuel Combustion Chemical energy conversion to thermal energy Fuel flow rate, air-fuel ratio, combustion temperature
Mechanical Conversion Thermal energy transforms to rotational mechanical energy Torque output, rotational speed, mechanical efficiency
Electromagnetic Conversion Mechanical energy becomes electrical energy Voltage magnitude, frequency, power factor

The power generation process initiates with fuel combustion within the prime mover cylinder chambers. Controlled combustion creates expanding gases that drive pistons through thermodynamic cycles. This reciprocating motion transfers through connecting rods and crankshafts to produce rotational mechanical energy.

Flywheel assemblies smooth torque pulsations inherent in reciprocating engines. These massive rotating components store kinetic energy during power strokes and release energy during compression phases, maintaining consistent rotational velocity.

Coupling systems transfer mechanical energy from prime movers to alternator assemblies. Flexible couplings accommodate minor misalignments while transmitting torque efficiently. Torsional vibration dampers protect drivetrain components from harmful resonant frequencies.

Maintenance and Operational Considerations

Professional generator systems demand comprehensive maintenance protocols encompassing mechanical, electrical, and control system components. Preventive maintenance schedules based on operating hours, calendar intervals, and performance parameters optimize equipment reliability while minimizing lifecycle costs.

Critical maintenance activities include:

  • Engine oil analysis and filtration system servicing
  • Cooling system inspection and coolant testing
  • Air filtration element replacement and intake system cleaning
  • Fuel system maintenance including filter replacement and tank cleaning
  • Electrical connection torque verification and insulation testing
  • Battery system maintenance and load testing
  • Transfer switch operation verification and contact inspection

Load bank testing validates generator performance under controlled loading conditions. These systematic tests verify voltage regulation, frequency stability, and protective relay coordination. Regular load testing identifies potential issues before critical power outages occur.

Thermographic inspections detect abnormal heating patterns indicating loose connections, overloaded circuits, or component degradation. Infrared imaging during operation reveals thermal signatures invisible through visual inspection alone.

How often should generators undergo comprehensive maintenance? Industry standards recommend 200-hour service intervals for standby generators, with annual comprehensive inspections regardless of operating hours. Critical facility applications may warrant more frequent maintenance cycles based on risk assessment criteria.

What factors influence generator sizing calculations? Load analysis, starting current requirements, harmonic considerations, altitude corrections, and ambient temperature conditions all impact proper generator selection. Engineering consultants typically apply 125% sizing factors to accommodate future load growth and ensure adequate capacity margins.
