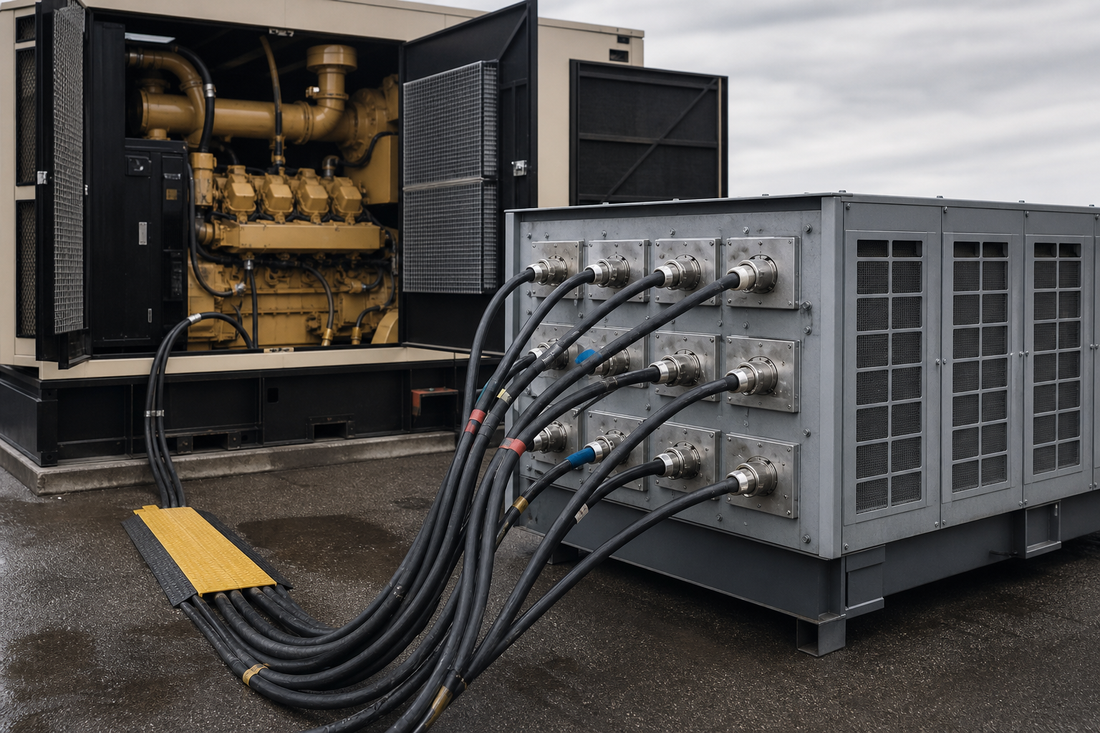

How Load Banks Work: Complete Testing Protocol Explained

Load banks serve as indispensable instruments in the realm of standby power systems, enabling comprehensive verification of generator sets, uninterruptible power supplies, and battery configurations. Understanding the operational mechanics and testing methodologies associated with these devices empowers facility managers, electrical contractors, and engineering professionals to maintain optimal power infrastructure reliability.

Understanding Load Bank Fundamentals

A load bank functions as an artificial electrical load that simulates real-world operational demands on power generation equipment. These specialized testing apparatuses convert electrical energy into thermal dissipation through resistive elements, allowing technicians to evaluate generator performance under controlled circumstances without placing actual facility loads at risk.

The fundamental principle behind load bank operation involves Ohm's Law and power dissipation characteristics. When connected to a power source, the resistive elements within the load bank consume electrical current proportional to the applied voltage and configured resistance values. This consumption manifests as heat, which sophisticated cooling systems must manage throughout the testing duration.

Modern load banks incorporate microprocessor-controlled circuitry that enables precise load application in graduated increments. This granular control allows testing personnel to replicate diverse operational scenarios, from minimal standby loads to full nameplate capacity demands. The sophistication of contemporary load bank technology has transformed what was once rudimentary resistance testing into a nuanced diagnostic discipline.

Types of Load Banks and Their Applications

Resistive Load Banks

Resistive load banks represent the most prevalent configuration within the testing ecosystem. These units simulate purely resistive loads analogous to incandescent lighting or heating elements. The power factor remains at unity, meaning voltage and current waveforms maintain phase alignment throughout the testing cycle.

For healthcare facilities, educational institutions, and data center operations, resistive load banks provide baseline verification of generator output capacity. They enable validation of voltage regulation, frequency stability, and thermal management systems under sustained operational stress.

Reactive Load Banks

Reactive load banks introduce inductive or capacitive elements that create phase displacement between voltage and current. This configuration mimics motors, transformers, and other inductive equipment commonly encountered in manufacturing facilities, cold storage operations, and industrial environments.

The reactive component proves essential for comprehensive generator testing because many real-world loads exhibit power factors significantly below unity. Testing exclusively with resistive loads may fail to reveal voltage regulation deficiencies or alternator capability limitations that manifest only under reactive loading conditions.

Combination Load Banks

Combination units integrate both resistive and reactive capabilities within a single chassis, offering maximum versatility for complex testing protocols. These sophisticated systems allow simultaneous application of real and reactive power, enabling precise replication of actual facility load profiles.

For engineering consultants and mechanical contractors evaluating large-scale power installations, combination load banks deliver comprehensive diagnostic capabilities without requiring multiple specialized units.

The Complete Testing Protocol Framework

Pre-Test Preparation and Safety Verification

Rigorous adherence to pre-test procedures ensures personnel safety and equipment protection. Technicians must verify proper grounding, confirm cable ampacity ratings, and inspect all connection points for integrity before energization.

  • Validate generator service records and maintenance compliance
  • Inspect cooling system fluid levels and operability
  • Verify automatic transfer switch functionality
  • Confirm load bank cable connections meet torque specifications
  • Establish environmental monitoring for exhaust ventilation

Documentation of baseline parameters establishes reference points for comparative analysis. Recording ambient temperature, barometric pressure, and initial operating temperatures provides contextual data that influences performance interpretation.

Graduated Load Application Methodology

Professional testing protocols implement load application in measured increments rather than instantaneous full-load engagement. This graduated approach allows observation of generator response characteristics at each loading threshold while minimizing mechanical stress.

Proper load bank testing reveals performance anomalies that remain concealed during routine operational cycling, preventing catastrophic failures during actual emergency scenarios.

A typical progression involves 25% load increments with stabilization intervals at each plateau. This methodology enables assessment of voltage regulation accuracy, frequency droop characteristics, and thermal equilibrium establishment. Observing how quickly the generator achieves steady-state operation at each loading level provides insight into governor responsiveness and alternator excitation system performance.

Peak Load Verification and Sustainability Assessment

Once graduated loading reaches nameplate capacity, sustained full-load operation verifies the generator's ability to maintain rated output for extended durations. Industry standards typically prescribe continuous full-load operation for a minimum of two hours, though specific applications may warrant longer test periods.

During this phase, technicians monitor multiple performance parameters simultaneously. Exhaust temperature, coolant temperature, oil pressure, and bearing temperatures all require continuous surveillance. Deviation from manufacturer-specified operating ranges indicates potential component degradation or system imbalances requiring corrective intervention.

Critical Parameters and Data Collection

Parameter Acceptable Range Monitoring Frequency
Voltage Regulation ±5% of Nominal Continuous
Frequency Stability 59-61 Hz Continuous
Coolant Temperature 180-220°F Every 15 Minutes
Oil Pressure Per Manufacturer Spec Every 15 Minutes
Exhaust Temperature Per Manufacturer Spec Every 15 Minutes

Contemporary data acquisition systems capture these parameters automatically, creating comprehensive records that facilitate trend analysis across multiple testing cycles. For facility managers overseeing mission-critical power infrastructure, this longitudinal data proves invaluable for predictive maintenance planning.

Interpreting Test Results and Diagnostic Insights

Raw data transforms into actionable intelligence through systematic analysis and comparison against established benchmarks. Voltage regulation exceeding ±3% under load suggests alternator excitation system degradation or automatic voltage regulator malfunction. Frequency instability indicates governor calibration drift or fuel system delivery inconsistencies.

Thermal measurements reveal cooling system efficacy and combustion efficiency. Coolant temperatures approaching upper specification limits may indicate radiator fouling, thermostat failure, or inadequate coolant concentration. Excessive exhaust temperatures often correlate with air intake restrictions, turbocharger degradation, or fuel injection timing deviations.

For electrical contractors and engineering companies, interpreting these diagnostic indicators enables proactive component replacement before failures occur during actual power outages when generator reliability becomes critical.

Testing Frequency and Regulatory Compliance

Authoritative bodies including the National Fire Protection Association (NFPA) 110 and The Joint Commission mandate periodic load bank testing for standby power systems serving essential facilities. Healthcare institutions require monthly exercising with annual load bank testing to at least 30% of nameplate capacity for 30 minutes.

Data centers, sports and entertainment venues, and manufacturing facilities often adopt more stringent testing protocols aligned with business continuity requirements. Quarterly full-load testing ensures consistent readiness for facilities where power disruptions create immediate financial consequences or safety hazards.

Real estate developers and facility managers must integrate these testing requirements into maintenance budgets and operational planning. Load bank rentals, testing personnel, and documentation systems represent ongoing operational expenses that protect substantial capital investments in standby power infrastructure.

Common Testing Challenges and Solutions

Wet stacking represents a prevalent challenge when generators operate predominantly at light loads without periodic heavy loading. Unburned fuel accumulates in exhaust systems, degrading performance and creating potential fire hazards. Load bank testing at elevated capacity levels vaporizes these deposits, restoring optimal combustion efficiency.

Environmental considerations sometimes complicate testing execution. Noise ordinances, exhaust emissions regulations, and thermal dissipation requirements necessitate careful planning. Portable load banks with integrated sound attenuation and properly positioned exhaust systems address these constraints while maintaining testing protocol integrity.

How Do You Select the Appropriate Load Bank Capacity?

Proper load bank selection requires matching the unit's capacity to the generator's nameplate rating with adequate margin for testing flexibility. A load bank rated at 110% of generator capacity enables verification of short-term overload capabilities while ensuring comprehensive testing across the entire operational range.

Connection compatibility represents another critical selection criterion. Voltage ratings, phase configurations, and connector types must align precisely with generator output characteristics. Mismatched specifications create safety hazards and invalidate test results through improper loading conditions.

For organizations maintaining diverse generator fleets spanning multiple capacity ranges, modular load banks offering stackable configurations provide economic advantages over maintaining separate units for each generator size. This approach optimizes capital equipment utilization while maintaining testing protocol compliance across varied installations.
