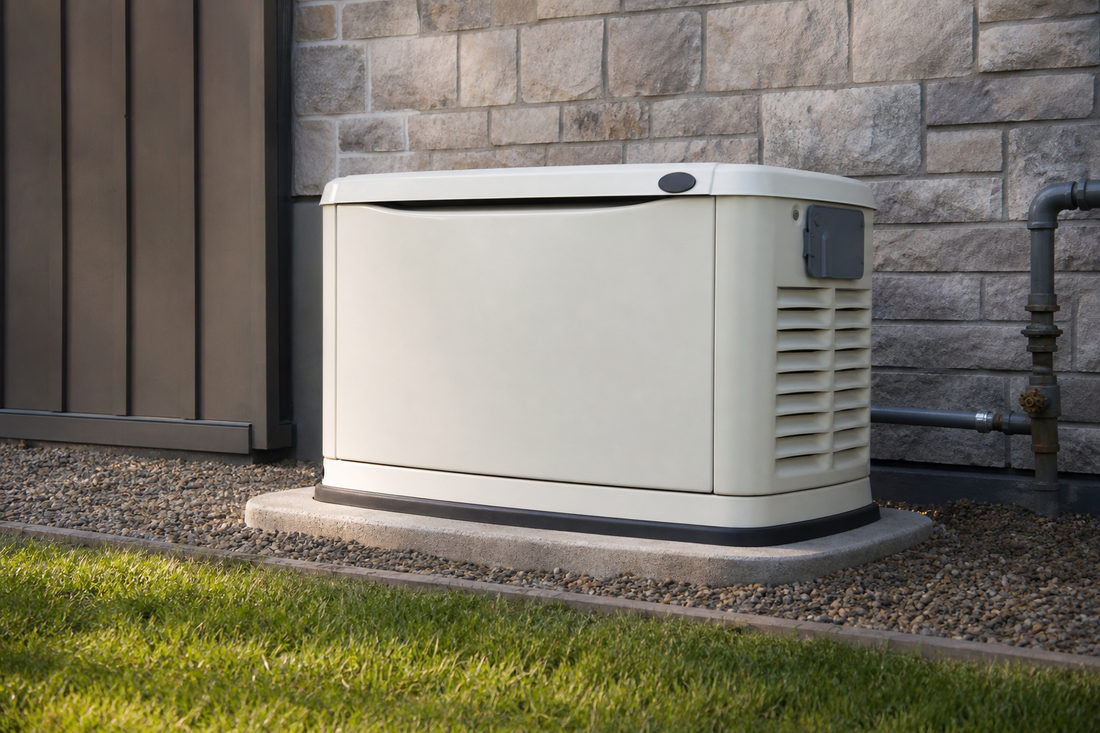

How to Install Generator: Professional Setup Framework

Installing a generator represents a substantial investment in power reliability for your facility. Whether you're safeguarding critical healthcare equipment, maintaining data center uptime, or ensuring operational continuity in manufacturing environments, the installation process demands meticulous attention to technical specifications, regulatory compliance, and safety protocols. This comprehensive framework guides electrical contractors, facility managers, and engineering professionals through the essential stages of generator installation.

Pre-Installation Assessment and Site Evaluation

Before commencing physical installation, conduct a thorough site assessment to identify potential obstacles and environmental considerations. Evaluate the designated installation area for adequate ventilation, accessibility for maintenance procedures, and compliance with local zoning ordinances. The foundation must support the unit's operational weight plus fuel capacity, typically requiring reinforced concrete pads with specific load-bearing specifications.

Survey the proximity to building structures, ensuring sufficient clearance for exhaust dispersion and heat dissipation. Most jurisdictions mandate minimum setback distances from property lines, windows, and air intake vents. Document existing utility infrastructure, including electrical service panels, natural gas lines, or propane storage tanks, as these connections will influence installation logistics and associated costs.

Load Calculation and Capacity Planning

Accurate load calculation constitutes the foundation of successful generator implementation. Aggregate the wattage requirements of all critical systems, accounting for both running watts and surge watts during motor startup sequences. Include HVAC systems, refrigeration units, data servers, medical equipment, and essential lighting circuits in your comprehensive inventory.

Apply appropriate diversity factors to avoid oversizing, which increases capital expenditure and operational inefficiency. Engineering consultants should calculate harmonic distortion levels for sensitive electronic equipment, particularly in data centers and healthcare facilities where power quality directly impacts equipment longevity and performance reliability.

Foundation Preparation and Structural Requirements

Generator foundations require precise engineering to mitigate vibration transmission and ensure stability throughout operational cycles. Construct a reinforced concrete pad extending at minimum six inches beyond the generator footprint on all sides. The pad thickness typically ranges from six to twelve inches, contingent upon soil composition and equipment tonnage.

Incorporate vibration isolation mechanisms when installing generators proximate to noise-sensitive areas. Specialized spring isolators or elastomeric pads reduce structural vibration transmission and acoustic propagation through building foundations. Allow concrete to cure for a minimum of twenty-eight days before positioning equipment, ensuring maximum compressive strength.

Drainage and Environmental Considerations

Implement proper drainage systems to redirect rainwater, condensation, and potential fuel spillage away from the generator foundation. Grade the surrounding area with a minimum two-percent slope to prevent water accumulation beneath the unit. Install containment berms or secondary containment systems where environmental regulations mandate fuel leak protection, particularly for diesel-powered installations exceeding specific capacity thresholds.

Fuel System Integration and Safety Protocols

Fuel system configuration varies significantly between natural gas, propane, and diesel installations. Natural gas connections require appropriately sized supply lines with adequate pressure regulation, typically maintaining fifteen to twenty pounds per square inch at the generator inlet. Coordinate with local utility providers to verify supply capacity during peak demand periods.

For diesel installations, position day tanks or bulk storage tanks according to NFPA 110 specifications. Install fuel lines with appropriate slope to prevent vapor lock, incorporating shutoff valves, flexible connectors, and drip legs at strategic intervals. Diesel fuel systems necessitate regular polishing to prevent microbial contamination and maintain combustion efficiency.

Propane System Specifications

Propane installations demand specialized consideration regarding vapor withdrawal rates and ambient temperature effects. Size propane tanks to accommodate sustained runtime requirements, recognizing that vaporization rates decrease in cold climates. Install vaporizers for large-capacity generators or applications requiring extended emergency power duration beyond the natural vaporization capability of liquid propane storage.

Electrical Connections and Transfer Switch Configuration

The automatic transfer switch represents the neural nexus between utility power and generator backup. Install the ATS in a weatherproof enclosure with appropriate NEMA ratings for environmental conditions. Position the switch proximate to the main service panel to minimize voltage drop and conductor costs, while maintaining accessibility for maintenance personnel.

Configure the transfer switch to monitor both utility and generator voltages continuously, initiating transfer sequences when utility power deviates beyond acceptable parameters. Program appropriate time delays to prevent nuisance transfers during momentary utility disturbances and allow generator warm-up periods before load acceptance.

Conductor Sizing and Circuit Protection

Calculate conductor ampacity according to NEC Article 445, applying appropriate derating factors for ambient temperature and conduit fill. Utilize separate equipment grounding conductors sized per NEC specifications, establishing a robust grounding electrode system connecting to the facility's existing ground grid. Install overcurrent protection devices coordinated with upstream and downstream protective elements to ensure selective coordination during fault conditions.

Exhaust System Installation and Heat Management

Exhaust systems require meticulous installation to prevent carbon monoxide infiltration and manage thermal radiation. Utilize appropriately rated exhaust piping materials capable of withstanding combustion gas temperatures exceeding 1000 degrees Fahrenheit. Support exhaust runs with expansion joints accommodating thermal expansion and contraction during operational cycles.

Terminate exhaust discharge points above roof lines or at sufficient horizontal distance from air intake vents, operable windows, and pedestrian areas. Install rain caps preventing moisture intrusion while allowing unrestricted exhaust flow. For enclosed generator installations, incorporate adequate ventilation louvers sized to accommodate combustion air requirements and cooling airflow specifications provided by equipment manufacturers.

Control System Programming and Integration

Modern generator controllers offer sophisticated monitoring capabilities and remote management functions. Program operational parameters including exercise schedules, alarm thresholds, and communication protocols during commissioning. Integrate controller outputs with building management systems or remote monitoring platforms, enabling proactive maintenance scheduling and real-time status visibility.

Configure load sequencing for installations with automatic load management requirements. Prioritize critical loads during initial transfer sequences, progressively accepting non-essential loads as generator stabilizes. This staged loading prevents excessive inrush currents and optimizes generator performance during emergency scenarios.

Testing Protocols and Commissioning Procedures

Comprehensive commissioning validates installation integrity and operational readiness. Conduct initial startup procedures following manufacturer specifications, verifying proper oil pressure, coolant circulation, and charging system function. Execute simulated utility failure scenarios confirming transfer switch operation, generator startup sequences, and load acceptance capability.

Perform full-load testing for minimum two hours, monitoring exhaust temperatures, voltage regulation, and frequency stability. Document baseline performance metrics establishing reference data for ongoing maintenance programs. Verify protective relay operation, emergency shutdown systems, and alarm notification functionality.

Acceptance Testing Requirements

Documentation and Compliance Verification

Maintain comprehensive installation documentation including as-built drawings, equipment specifications, and testing records. Submit required permits to authorities having jurisdiction, obtaining final inspections validating code compliance. Provide facility managers with operation manuals, maintenance schedules, and parts inventory recommendations for critical components requiring periodic replacement.

Establish relationships with OEM parts suppliers offering replacement components, filters, breakers, and accessories with expedited shipping capabilities. Stockpile critical spare parts including oil filters, air filters, fuel filters, and control circuit components to minimize downtime during maintenance intervals or emergency repairs.

Ongoing Maintenance Framework

Implement structured maintenance protocols extending generator longevity and ensuring reliability. Schedule weekly exercise cycles loading the generator to minimum thirty percent rated capacity, preventing wet stacking in diesel engines and maintaining system readiness. Monthly inspections should encompass fluid level verification, battery voltage testing, and visual examination of fuel systems, exhaust components, and electrical connections.

Annual maintenance performed by qualified technicians includes load bank testing, valve adjustments, coolant analysis, and comprehensive system diagnostics. Replace wear components according to manufacturer intervals, utilizing genuine OEM replacement parts maintaining warranty compliance and performance specifications.

Common Installation Challenges and Solutions

What considerations apply when installing generators in seismic zones? Facilities located in earthquake-prone regions require seismic restraints anchoring generators to foundations and flexible fuel line connections preventing rupture during ground motion. Consult structural engineers familiar with seismic design requirements ensuring installation meets applicable building codes.

How do you address acoustic mitigation for noise-sensitive environments? Educational facilities, healthcare campuses, and entertainment venues often necessitate sound attenuation measures beyond standard enclosures. Implement acoustic barriers, enhanced muffler systems, or position generators in dedicated equipment rooms with sound-absorbing interior finishes reducing operational noise transmission.

Generator installation executed according to professional standards delivers decades of reliable emergency power protection. Partnering with experienced electrical contractors, utilizing quality OEM components, and maintaining rigorous testing protocols ensures your critical facilities remain operational during utility disruptions, protecting valuable assets and maintaining business continuity.
