How to Use Load Banks: Complete Testing Protocol Guide
Load bank testing represents a critical operational protocol for validating generator performance, ensuring power system reliability, and meeting compliance requirements across diverse industrial applications. Understanding the nuanced methodologies behind load bank utilization empowers electrical contractors, facility managers, and engineering professionals to maintain optimal power infrastructure.
Understanding Load Bank Fundamentals and Applications
A load bank simulates electrical demand on power generation equipment, creating artificial loads that mirror real-world operating conditions. This sophisticated apparatus enables comprehensive evaluation of generators, uninterruptible power supplies (UPS), battery systems, and turbines without relying on actual facility loads. The controlled environment permits thorough assessment of equipment capabilities, thermal performance, and operational parameters.
Three primary classifications dominate the load bank landscape: resistive, reactive, and resistive-reactive combinations. Resistive units convert electrical energy to heat, measuring kilowatts (kW) and representing the most straightforward testing approach. Reactive load banks simulate inductive loads measured in kilovolt-amperes reactive (kVAR), essential for evaluating power factor correction and motor-driven equipment responses. Hybrid configurations deliver comprehensive testing capabilities for complex power systems encountered in data centers, healthcare facilities, and manufacturing operations.
Pre-Testing Preparation and Safety Protocols
Equipment Inspection and Documentation Review
Before initiating any load bank procedure, meticulous equipment inspection establishes operational safety. Verify all cable connections demonstrate proper termination, absent of corrosion or thermal degradation. Examine ventilation pathways ensuring unobstructed airflow, particularly crucial for resistive load banks generating substantial thermal output. Document review should encompass generator nameplate specifications, previous test results, and manufacturer recommendations regarding loading parameters.
Coordination with facility stakeholders prevents operational disruptions. Notify maintenance personnel, building occupants, and relevant authorities about scheduled testing activities. This communication framework proves especially vital within healthcare environments where power interruptions could compromise patient care, or data centers where computational continuity remains paramount.
Safety Perimeter Establishment
Designate exclusion zones around testing equipment, particularly load bank units operating at elevated temperatures. Surface temperatures frequently exceed 200°F during sustained operations, presenting burn hazards to uninformed personnel. Install appropriate signage, barriers, and warning indicators throughout the testing perimeter. Personal protective equipment (PPE) requirements include thermally-rated gloves, safety glasses, hearing protection, and flame-resistant garments when operating near high-capacity load banks.
Connection Configuration and Load Bank Setup
Proper load bank connectivity forms the cornerstone of accurate testing protocols. Begin by confirming voltage compatibility between the generator output and load bank input specifications. Mismatched voltage parameters risk equipment damage and invalidate test results. Cable sizing must accommodate anticipated amperage loads with appropriate derating factors for ambient temperature and cable length.

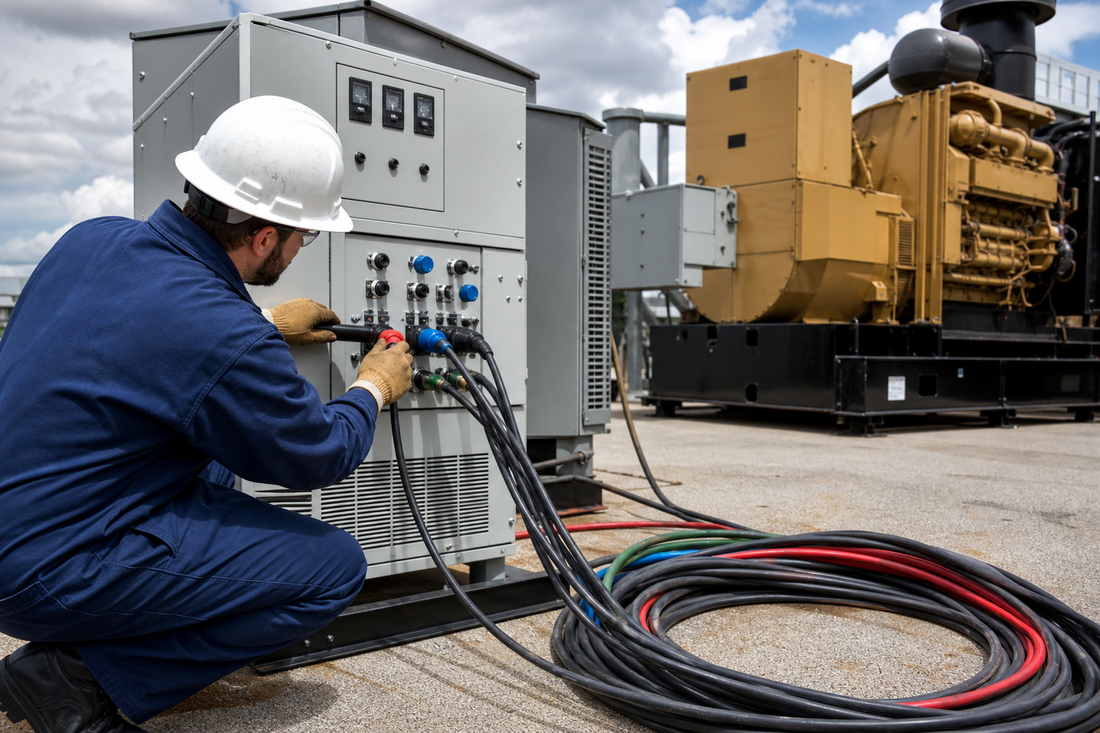

Portable load banks typically utilize cam-lock or twist-lock connectors, demanding secure engagement to prevent arcing during energized operations. Permanent installations may incorporate hardwired connections with dedicated circuit protection. Ground fault protection becomes non-negotiable, providing personnel safety and equipment preservation throughout testing sequences.
Proper grounding procedures cannot be overemphasized. Establish equipotential bonding between the load bank chassis, generator frame, and facility ground system to eliminate dangerous potential differences that could precipitate electrical shock hazards.
Executing the Load Bank Testing Protocol
Initial System Energization
Commence testing with the generator operating at no-load conditions, allowing engine parameters to stabilize. Monitor oil pressure, coolant temperature, and voltage output confirming alignment with manufacturer specifications. Gradually introduce load in incremental steps, typically 25% intervals, permitting thermal equilibration between loading stages. Precipitous loading generates mechanical stress and potential engine damage, particularly with standby generators experiencing infrequent operation.
Each loading increment demands systematic parameter documentation. Record voltage, frequency, amperage, power factor, and engine operational metrics including exhaust temperature, oil pressure, and coolant temperature. These baseline measurements establish performance trends and identify incipient failures before catastrophic events occur.
Full Load Testing and Duration Requirements
Industry standards typically mandate generator operation at 100% nameplate capacity for minimum durations ranging from one to four hours. This sustained loading accomplishes several critical objectives: eliminates carbon accumulation from wet stacking, validates cooling system adequacy, and confirms fuel delivery system performance under maximum demand conditions.
| Load Percentage | Minimum Duration | Key Parameters Monitored |
|---|---|---|
| 25% | 30 minutes | Voltage stability, frequency regulation |
| 50% | 30 minutes | Temperature trends, oil pressure |
| 75% | 30 minutes | Exhaust characteristics, fuel consumption |
| 100% | 60-240 minutes | Comprehensive thermal performance, system stability |
Advanced Testing Methodologies for Specialized Applications
Transient Load Response Evaluation
Data centers, healthcare facilities, and industrial operations demand rapid load acceptance capabilities. Transient testing introduces abrupt load changes, evaluating voltage regulation and frequency recovery characteristics. This methodology reveals governor response, voltage regulator performance, and overall system resilience against sudden demand fluctuations common in mission-critical environments.
Execute transient tests by instantaneously applying substantial load blocks, typically 50-70% of generator capacity, while monitoring voltage dip magnitude and recovery timeframes. Acceptable voltage transients generally range between 10-15% with recovery to steady-state conditions within 3-5 seconds, though specific applications may impose stricter criteria.
Harmonic Distortion Assessment
Modern facilities proliferate with non-linear loads including variable frequency drives, switched-mode power supplies, and LED lighting systems. These components generate harmonic distortion compromising power quality and potentially damaging sensitive electronic equipment. Specialized load banks with harmonic generation capabilities enable assessment of generator performance under realistic power quality challenges.
Post-Test Analysis and Documentation Requirements
Comprehensive documentation transforms raw test data into actionable intelligence. Compile all recorded parameters, anomalies observed, and comparative analysis against previous testing cycles. Trending analysis identifies gradual performance degradation, facilitating proactive maintenance interventions before emergency situations develop.
Generate formal test reports incorporating the following elements:
- Equipment identification details including serial numbers and nameplate specifications
- Testing date, duration, and environmental conditions
- Load bank configuration and connection methodology
- Tabulated performance data across all loading increments
- Graphical representations of critical parameters demonstrating trends
- Deviation analysis highlighting departures from baseline or specification limits
- Recommendations for corrective actions or maintenance activities
Common Testing Challenges and Troubleshooting Approaches
Frequency instability during load application often indicates governor malfunction or fuel delivery inadequacies. Investigate fuel filter condition, injection pump calibration, and governor linkage adjustments. Voltage regulation issues typically stem from automatic voltage regulator (AVR) deficiencies, excitation system problems, or winding insulation degradation.
Excessive exhaust temperature elevation beyond manufacturer specifications suggests combustion inefficiencies, turbocharger deterioration, or cooling system inadequacies. White or blue exhaust smoke during testing indicates incomplete combustion patterns requiring immediate investigation. Black exhaust emissions signal fuel system over-richness or air intake restrictions demanding prompt remediation.
Regulatory Compliance and Testing Frequency Standards
Regulatory frameworks governing load bank testing vary across jurisdictions and facility classifications. National Fire Protection Association (NFPA) 110 mandates monthly exercising with annual load bank testing at minimum 30% nameplate capacity for emergency power supply systems (EPSS). Joint Commission requirements for healthcare facilities impose stringent testing protocols ensuring life safety system reliability.
Data centers pursuing Uptime Institute tier certifications face rigorous commissioning and maintenance testing requirements. Financial institutions, telecommunications infrastructure, and government facilities maintain sector-specific compliance obligations demanding documented testing protocols and performance verification.
Optimizing Testing Schedules and Maintenance Integration
Strategic load bank testing synchronization with preventive maintenance activities maximizes operational efficiency while minimizing disruption. Schedule comprehensive testing following major service intervals, component replacements, or after extended operational periods. This approach validates maintenance efficacy and confirms system restoration to specification.
Seasonal considerations influence testing outcomes, particularly for outdoor installations. Ambient temperature extremes affect cooling system performance, combustion efficiency, and battery capacity. Spring and fall periods typically offer optimal testing conditions, avoiding temperature-related variables that complicate performance assessment.
Partnering with specialized suppliers providing comprehensive generator components, automatic transfer switches, and load bank equipment ensures access to technical expertise supporting successful testing protocols. Expert support transforms testing from mere compliance obligation into valuable performance optimization opportunity, extending equipment lifespan and enhancing reliability across critical power infrastructure.
