Load Bank Testing Methods That Verify Generator Performance

Understanding Load Bank Fundamentals

Load banks serve as sophisticated electrical testing apparatus that simulate real-world power consumption scenarios for generators and power systems. These devices create artificial electrical loads by converting electrical energy into heat through precision-engineered resistive, reactive, or capacitive elements. Understanding their operational principles becomes paramount for facility managers and electrical contractors who must ensure reliable backup power systems.

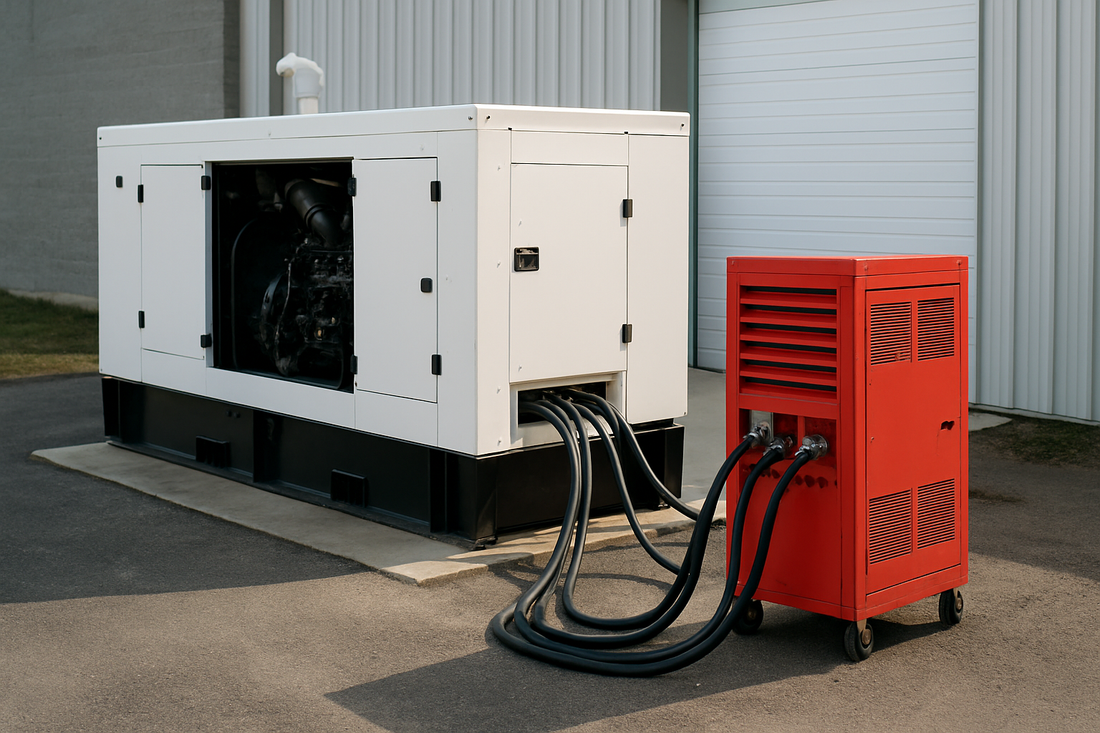

The fundamental mechanism involves controlled energy dissipation. When connected to a generator, load banks draw predetermined amounts of current, forcing the generator to produce power at specified levels. This controlled loading reveals performance characteristics that might remain hidden during no-load or minimal-load conditions.

Core Operating Principles

Load banks operate through three primary methodologies: resistive, reactive, and capacitive loading. Resistive load banks convert electrical energy directly into heat using precision resistors, creating unity power factor conditions. Reactive load banks introduce inductive or capacitive elements that simulate motor loads and other reactive equipment commonly found in commercial and industrial facilities.

The sophistication of modern load bank systems allows for precise load stepping, where technicians can incrementally increase or decrease loading to test generator response across its entire operating range. This granular control proves essential when validating automatic voltage regulation, frequency stability, and thermal management systems.

Professional Load Bank Testing Methodologies

Systematic testing protocols ensure comprehensive generator evaluation. The stepped loading methodology represents the gold standard for generator testing, beginning with initial no-load verification and progressing through predetermined load increments until rated capacity is achieved.

Stepped Loading Protocols

Professional testing begins with baseline measurements at no-load conditions. Voltage regulation, frequency stability, and harmonic distortion measurements establish initial parameters. Load application typically progresses in 25% increments of rated capacity, allowing sufficient stabilization time between steps for thermal equilibrium.

Critical parameters monitored during stepped loading include:

• Voltage regulation under varying load conditions
• Frequency stability and transient response
• Temperature rise in critical components
• Fuel consumption rates at different load levels
• Exhaust emissions and opacity measurements

Transient Response Testing

Sudden load application and rejection scenarios test generator control system responsiveness. These tests simulate real-world conditions where building loads activate or deactivate rapidly, such as HVAC systems cycling or elevator motors starting.

Comprehensive Testing Solutions for Modern Facilities

Today's sophisticated power systems demand equally sophisticated testing equipment. The Avtron Load Banks collection offers precision-engineered solutions specifically designed for comprehensive generator testing applications. These professional-grade load banks provide the accuracy and reliability required by engineering consultants, data center builders, and facility maintenance teams who cannot afford power system failures.

Whether conducting commissioning tests for new installations or performing routine maintenance verification, these load banks deliver consistent, repeatable results. Their modular design accommodates various generator sizes while maintaining testing accuracy across diverse applications from healthcare facilities to manufacturing plants.

Advanced Testing Parameters

Modern load bank testing encompasses sophisticated measurements beyond basic voltage and frequency monitoring. Power quality analysis includes harmonic distortion assessment, voltage unbalance evaluation, and transient voltage surge suppression verification.

Temperature coefficient testing examines generator performance across ambient temperature ranges. This proves particularly crucial for outdoor installations and facilities in extreme climates where generator performance may vary significantly with environmental conditions.

Industry-Specific Testing Requirements

Different facility types require tailored testing approaches. Healthcare facilities demand stringent testing protocols due to life-safety implications, while data centers focus on power quality and seamless transfer capabilities.

Critical Facility Standards

Healthcare and data center applications require monthly testing at minimum 30% rated load, with annual full-load testing. Cold storage facilities and manufacturing plants may require specialized testing protocols that account for large motor starting requirements and power factor considerations.

Regulatory Compliance Testing

NFPA 110 and Joint Commission standards mandate specific testing protocols for emergency power systems. These regulations specify minimum loading levels, duration requirements, and documentation standards that facility managers must maintain.

Load Bank Selection Criteria

Proper load bank selection requires careful consideration of generator specifications, facility requirements, and testing objectives. Power rating, voltage compatibility, and connection methods represent primary selection criteria.

Portable versus stationary configurations offer distinct advantages. Portable units provide flexibility for testing multiple generators across different locations, while permanent installations ensure consistent testing capabilities without setup time.

Technical Specifications

Load bank capacity should exceed generator rating by at least 10% to accommodate testing at full rated output plus contingency margin. Voltage range compatibility ensures proper testing across various generator configurations, while power factor capabilities determine testing scope for reactive load scenarios.

Cooling system design affects testing duration capabilities. Air-cooled units offer simplicity but may require duty cycle limitations, while liquid-cooled systems enable extended testing periods essential for comprehensive evaluation protocols.

Common Testing Challenges and Solutions

Load bank testing presents unique challenges that experienced technicians must navigate. Ambient temperature effects on load bank operation require careful consideration, particularly during extreme weather conditions.

How do facility constraints affect testing procedures? Limited electrical infrastructure may restrict load bank connection options, requiring creative solutions or specialized equipment configurations. Noise considerations in urban environments or sensitive facilities may mandate acoustic enclosures or testing schedule modifications.

Troubleshooting Performance Issues

Voltage regulation problems during load bank testing often indicate automatic voltage regulator malfunctions or excitation system issues. Frequency instability suggests governor system problems requiring immediate attention before generator deployment.

Excessive temperature rise during testing may indicate cooling system deficiencies, air filter restrictions, or combustion air supply problems. These issues require systematic diagnosis to prevent equipment damage during actual emergency operation.

Professional load bank testing methodologies provide comprehensive generator performance verification essential for reliable emergency power systems. Through systematic application of these testing protocols, facility managers ensure their critical power infrastructure meets operational requirements when needed most.
