Power Distribution Equipment for Generators Top 7 for Steady Power
Understanding Power Distribution Equipment Fundamentals
Power distribution equipment for generators serves as the critical nexus between raw electrical generation and controlled power delivery to end-use applications. These sophisticated systems orchestrate the seamless transfer of electrical energy from generators to downstream loads while maintaining voltage regulation, frequency stability, and protective isolation.
The architecture of generator power distribution encompasses multiple interconnected components. Primary distribution panels receive generator output and segment it into manageable circuits. Secondary distribution units further subdivide power into specific voltage levels and amperage ratings. Load management systems continuously monitor demand characteristics and adjust distribution patterns accordingly.
Electrical contractors and facility managers must understand that proper distribution equipment selection directly impacts system reliability, operational efficiency, and maintenance requirements. The sophistication of modern distribution systems allows for real-time load balancing, harmonic filtering, and intelligent switching capabilities that were previously unattainable with conventional electrical infrastructure.
Essential Components of Generator Distribution Systems
Automatic Transfer Switches
Automatic transfer switches (ATS) represent the cornerstone of seamless power transition between utility and generator sources. These electromechanical devices continuously monitor utility voltage, frequency, and phase relationships. Upon detecting anomalies or outages, the ATS initiates generator startup sequences and executes load transfer operations within predetermined timeframes.
Modern ATS units incorporate microprocessor-based controllers that provide programmable delay settings, voltage window adjustments, and communication protocols for remote monitoring. Open transition and closed transition configurations offer different operational characteristics depending on load sensitivity requirements and system protection philosophies.
Circuit Protection Breakers
Generator circuit breakers provide essential overcurrent protection while enabling manual and automatic circuit isolation. These protective devices must coordinate with upstream and downstream protection schemes to ensure selective tripping during fault conditions. Molded case circuit breakers (MCCB) and insulated case circuit breakers (ICCB) offer different interrupting capacities and operational characteristics.
Advanced breaker technologies incorporate electronic trip units with programmable protection curves, ground fault detection, and arc flash mitigation capabilities. Communication-enabled breakers provide real-time current measurements, energy consumption data, and predictive maintenance indicators through digital interfaces.
Load Bank Testing Equipment
Load banks simulate actual electrical loads during generator testing and commissioning procedures. Resistive load banks provide purely resistive loading for basic capacity verification. Reactive load banks introduce inductive or capacitive elements to test generator performance under realistic power factor conditions.
"Regular load bank testing ensures generators maintain their rated capacity and performance specifications while identifying potential issues before they compromise critical operations."
Comprehensive Product Solutions for Power Distribution
Professional electrical contractors and facility managers require access to comprehensive power distribution solutions that encompass OEM replacement parts, specialized accessories, and complete system components. Our extensive product collection addresses the diverse needs of generator power distribution applications across multiple industry sectors.
The collection includes genuine OEM replacement parts for major generator manufacturers, ensuring compatibility and performance standards. Automatic transfer switches range from residential-grade units to industrial three-phase systems capable of handling megawatt-class loads. Circuit breakers span the complete spectrum from miniature circuit breakers to high-voltage power circuit breakers with advanced protection features.
Load bank rental and purchase options support both temporary testing requirements and permanent installation needs. Filter assemblies address power quality concerns including harmonic distortion, voltage transients, and electromagnetic interference. Fast shipping capabilities and expert technical support ensure minimal downtime during critical maintenance and upgrade projects.
Top 7 Power Distribution Equipment Categories
1. Main Distribution Panels
Main distribution panels serve as the primary interface between generator output and facility electrical systems. These enclosures house the main generator breaker, metering equipment, and outgoing feeder breakers. Panel configurations vary from simple single-ended designs to complex double-ended arrangements with bus tie capabilities.
Switchgear assemblies provide enhanced protection and operational flexibility for larger installations. Metal-clad switchgear incorporates individually compartmentalized components with advanced safety features including arc-resistant construction and remote racking mechanisms.
2. Step-Down Transformers
Voltage transformation equipment enables generators to supply multiple voltage levels simultaneously. Dry-type transformers offer maintenance advantages and environmental benefits compared to oil-filled units. K-factor rated transformers specifically address harmonic loading conditions commonly encountered in modern facilities.
Isolation transformers provide galvanic separation between generator and load circuits, reducing ground loop currents and improving system stability. Autotransformers offer cost-effective voltage adjustment for applications requiring modest voltage changes.
3. Power Quality Enhancement Systems
Harmonic filters mitigate distortion introduced by nonlinear loads including variable frequency drives, LED lighting, and electronic equipment. Active power filters provide dynamic harmonic compensation across varying load conditions. Passive filter networks offer cost-effective solutions for predictable harmonic signatures.
Voltage regulators maintain stable output voltage despite generator speed variations and load changes. Ferroresonant regulators provide robust voltage regulation with minimal maintenance requirements. Electronic voltage regulators offer precise control with advanced features including remote monitoring and programmable parameters.
4. Paralleling Switchgear
Generator paralleling systems enable multiple generators to operate synchronously, providing enhanced capacity, redundancy, and fuel efficiency. Synchronizing equipment monitors voltage magnitude, frequency, and phase angle to ensure proper paralleling conditions before closing tie breakers.
Load sharing controls distribute kW and kVAR loading proportionally among parallel generators. Automatic paralleling systems incorporate sophisticated control algorithms that optimize generator combinations based on load demand and operational priorities.
5. Monitoring and Control Systems
Digital control systems provide comprehensive monitoring, alarming, and data logging capabilities for generator power distribution equipment. SCADA integration enables remote monitoring and control from centralized locations. Web-based interfaces allow authorized personnel to access system information using standard internet browsers.
Predictive analytics capabilities analyze operational data to identify trending issues and recommend maintenance actions. Integration with building automation systems provides coordinated control of electrical and mechanical systems during emergency operations.
6. Ground Fault Protection Equipment
Ground fault detection and interruption equipment provides essential personnel and equipment protection in generator distribution systems. Zero-sequence current transformers detect ground fault currents in three-phase systems. Residual current devices provide automatic disconnection upon detecting ground fault conditions.
High-resistance grounding systems limit ground fault currents while maintaining system operation during single ground faults. Ground fault neutralizers provide automatic compensation for system capacitance, reducing transient overvoltages during ground fault conditions.
7. Emergency Power Outlets and Distribution

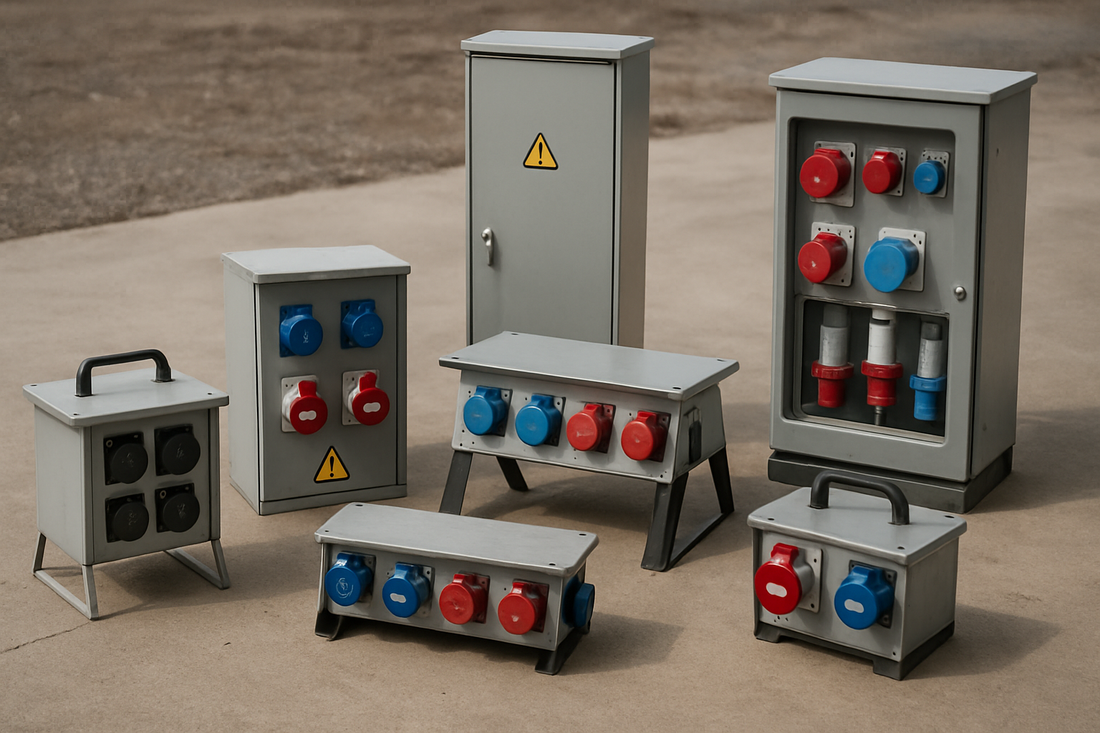

Temporary power distribution equipment enables rapid deployment of generator power during emergency situations. Spider boxes provide multiple NEMA outlets from single input connections. Portable distribution panels offer circuit protection and GFCI protection for temporary installations.
| Equipment Type | Typical Applications | Key Features |
|---|---|---|
| Spider Boxes | Construction, Events | Weather-resistant, Multiple outlets |
| Portable Panels | Emergency Response | Circuit protection, Metering |
| Cam-Lock Connectors | Industrial Applications | High amperage, Secure connection |
Selection Criteria and Best Practices
Proper selection of power distribution equipment requires comprehensive analysis of load characteristics, environmental conditions, and operational requirements. Load analysis should encompass both steady-state and transient conditions including motor starting currents, transformer inrush, and capacitor switching transients.
Environmental considerations include ambient temperature ranges, humidity levels, corrosive atmospheres, and seismic requirements. Indoor and outdoor installations require different enclosure ratings and protection levels. Altitude corrections may be necessary for high-elevation installations.
Coordination studies ensure proper protective device operation during fault conditions. Time-current characteristic curves must be analyzed to achieve selective coordination while providing adequate protection for downstream equipment. Arc flash studies determine incident energy levels and establish appropriate personal protective equipment requirements.
Frequently Asked Questions
What factors determine the required capacity of generator distribution equipment?
Distribution equipment capacity depends on connected load analysis, diversity factors, and future expansion requirements. Peak demand calculations must account for motor starting currents, harmonic loading effects, and temperature derating factors. Safety margins typically range from 25% to 50% depending on application criticality and growth projections.
How does power quality affect distribution equipment selection?
Poor power quality necessitates specialized distribution components including K-factor rated transformers, harmonic filters, and enhanced surge protection devices. Sensitive electronic loads may require isolation transformers or uninterruptible power supply integration. Power quality monitoring equipment helps quantify disturbance levels and validate mitigation effectiveness.
What maintenance practices optimize distribution equipment reliability?
Preventive maintenance programs should include regular inspection of connections, cleaning of contacts, lubrication of operating mechanisms, and verification of protection settings. Thermal imaging surveys identify developing hot spots before failures occur. Insulation testing verifies dielectric integrity and identifies deteriorating components.
- Annual thermographic inspections
- Quarterly connection torque verification
- Monthly visual inspections
- Weekly operational status checks
Implementation of comprehensive power distribution strategies ensures reliable generator operation while protecting critical facility loads. Professional engineering consultation and quality equipment selection provide the foundation for successful emergency and standby power systems that meet the demanding requirements of modern electrical infrastructure.
