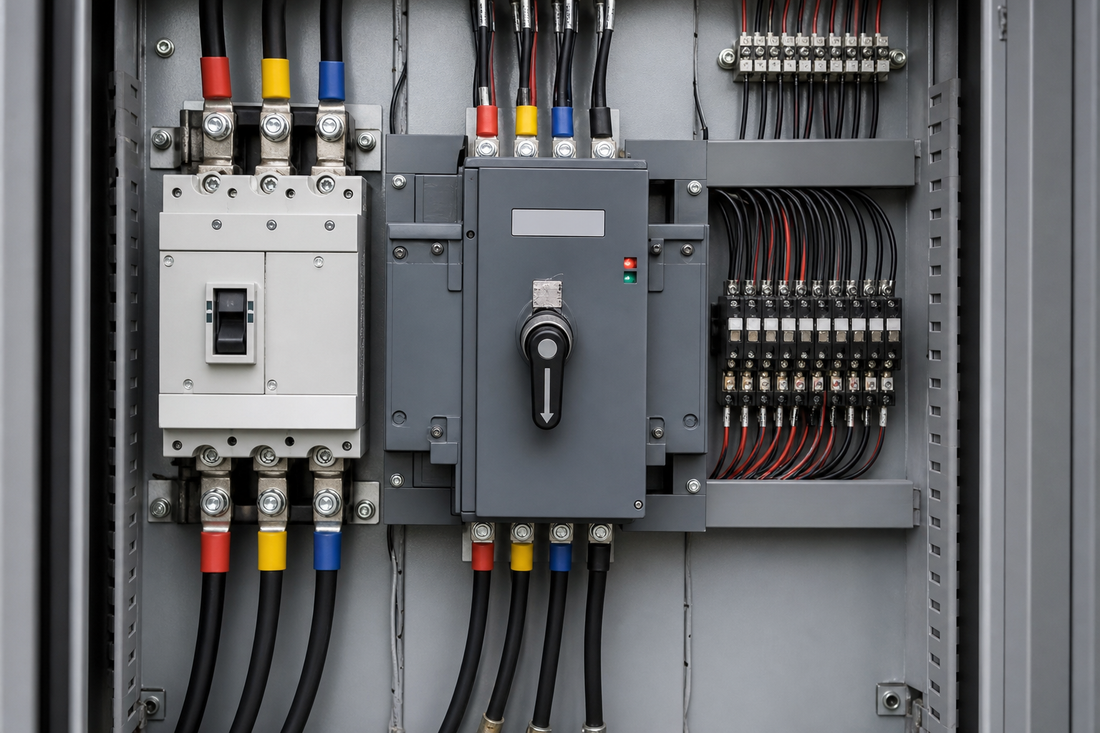

Selecting Automatic Transfer Switch: Voltage Rating Decoded
Navigating the labyrinth of automatic transfer switch specifications demands precision, particularly when deciphering voltage ratings. For electrical contractors and facility managers overseeing mission-critical infrastructure, the ramifications of mismatched voltage parameters extend beyond mere operational inefficiencies—they encompass safety hazards, equipment degradation, and catastrophic system failures. Understanding voltage rating fundamentals represents the cornerstone of proper transfer switch deployment.
The voltage rating of an automatic transfer switch establishes the maximum electrical potential difference the device can safely manage during normal operation and transfer sequences. This specification isn't merely a nominal value printed on a nameplate; it encompasses complex considerations including transient overvoltages, steady-state tolerances, and withstand capabilities during fault conditions.
Decoding Voltage Rating Fundamentals
Voltage ratings manifest in multiple configurations that align with diverse power distribution architectures. Single-phase systems typically operate at 120/240V, while three-phase installations span 208V, 480V, and 600V configurations. Industrial facilities frequently leverage higher voltage classes—particularly in data centers and manufacturing operations where power density requirements intensify.
The numerical voltage designation represents the maximum line-to-line voltage under which the transfer switch maintains its dielectric integrity. However, electrical engineers must account for a crucial nuance: voltage ratings incorporate safety margins that accommodate typical grid fluctuations. A 480V-rated switch generally tolerates voltages ranging from approximately 432V to 528V, representing the ±10% variance commonly encountered in utility distribution.
System Voltage Versus Rated Voltage
Distinguishing between nominal system voltage and equipment voltage rating prevents costly specification errors. A 480V electrical system doesn't necessitate a switch rated precisely at 480V. Rather, the switch rating must equal or exceed the system's maximum anticipated voltage, including transient spikes during motor starting, capacitor switching, or utility-side disturbances.
Engineers frequently encounter confusion surrounding voltage class designations versus actual operating parameters. A transfer switch labeled for 600V service can certainly accommodate 480V systems, providing additional headroom for voltage transients. This conservative approach enhances longevity and reliability—critical factors for facilities requiring continuous uptime.
Matching Transfer Switches to Application Requirements
Selecting automatic transfer switch voltage ratings demands comprehensive analysis of the electrical infrastructure topology. Healthcare facilities, educational campuses, and cold storage operations each present distinct voltage distribution paradigms that inform specification decisions.
When evaluating voltage compatibility, engineering consultants must scrutinize both source and load characteristics. The normal utility supply and emergency generator output must align not only in voltage magnitude but also in phase configuration and frequency stability. Voltage discrepancies between these sources create potentially destructive scenarios during transfer operations.
Assessing Source Voltage Compatibility
Dual-source voltage verification represents a non-negotiable prerequisite. Measure actual voltages at the anticipated transfer switch location rather than relying on theoretical distribution calculations. Real-world installations frequently exhibit voltage drops attributable to conductor impedance, transformer tap settings, and load-dependent regulation characteristics.
Generator voltage output deserves particular scrutiny. Portable and permanently installed gensets may exhibit different voltage regulation performance under varying load conditions. The automatic voltage regulator (AVR) maintains output within acceptable bands, but transient response during load acceptance can produce momentary voltage deviations that the transfer switch must accommodate without nuisance tripping or contact degradation.
Voltage Rating Impact on Transfer Switch Components
Internal components within automatic transfer switches experience electrical stresses directly proportional to operating voltage. Contactor assemblies, insulation systems, and control circuitry all bear voltage-dependent design constraints that influence both initial cost and operational longevity.
Insulation Coordination Principles
Higher voltage ratings necessitate enhanced insulation distances and materials. The basic insulation level (BIL) defines the switch's capacity to withstand impulse voltages from lightning strikes and switching surges. A 600V-class transfer switch incorporates more robust insulation than its 208V counterpart, reflecting the increased dielectric stress and clearance requirements.
| Voltage Rating | Typical BIL (kV) | Minimum Clearance (mm) |
|---|---|---|
| 208V | 4 | 6 |
| 480V | 6 | 10 |
| 600V | 10 | 13 |
These insulation parameters directly influence enclosure sizing and component spacing. Mechanical contractors planning installation spaces must allocate sufficient clearances not merely for the transfer switch itself but for the voltage-dependent safety zones surrounding energized components.
Common Voltage Rating Selection Pitfalls
Experience reveals recurring errors in transfer switch voltage specification. These missteps often surface during commissioning when rectification becomes exponentially more expensive than proper initial selection.
Overlooking Voltage Harmonics and Distortion
Non-linear loads proliferating in modern facilities—variable frequency drives, uninterruptible power supplies, LED lighting—inject harmonic currents that distort voltage waveforms. This distortion increases peak voltages beyond the fundamental frequency RMS value. Transfer switches must withstand these elevated peak voltages without insulation breakdown or premature contact erosion.
Data center builders particularly confront this challenge. Server power supplies and cooling system VFDs generate substantial harmonic content. Specifying transfer switches with adequate voltage margins accommodates these real-world operating conditions that theoretical calculations might underestimate.
Voltage Rating Verification and Testing
Post-installation verification confirms that selected voltage ratings align with actual system parameters. This validation process transcends simple multimeter readings, encompassing comprehensive power quality analysis.
Proper voltage rating validation requires recording maximum and minimum voltage excursions over representative operating periods—ideally spanning complete load cycles including peak demand intervals and light-load conditions when voltage regulation may loosen.
- Document both line-to-line and line-to-neutral voltages across all phases
- Capture voltage during generator exercise cycles and actual transfer events
- Monitor voltage transients during large motor starts or other disturbance events
- Verify neutral-to-ground voltage remains within acceptable thresholds
Long-Term Voltage Monitoring Considerations
Utility voltage characteristics evolve as grid infrastructure ages and load patterns shift. Facilities anticipating service life measured in decades should implement periodic voltage surveys that detect gradual drift in supply characteristics. A transfer switch appropriately rated today might encounter marginal operating conditions years hence if grid voltages creep upward due to infrastructure modifications.
Coordinating Voltage Ratings with Downstream Protection
Transfer switch voltage ratings must harmonize with upstream and downstream protective devices. Circuit breakers, fuses, and surge protective devices all carry voltage ratings that establish system coordination boundaries.
Engineering firms designing comprehensive power distribution schemes recognize that transfer switch voltage rating influences the entire protection cascade. A 600V-rated transfer switch feeding 480V distribution panels creates no coordination conflicts, but mismatched lower-rated switches could compromise selective coordination during fault conditions.
Future-Proofing Voltage Rating Selection
Strategic facility planning incorporates expansion scenarios that might alter electrical distribution voltages. Real estate developers and facility managers should contemplate potential system upgrades when initially selecting automatic transfer switch voltage ratings.
Selecting a higher voltage class than immediately necessary introduces minimal cost penalty while preserving flexibility for future modifications. A 600V-rated switch serving a current 480V system accommodates potential voltage reclassification without equipment replacement—a prudent investment for adaptable infrastructure.
What happens if I install a transfer switch with insufficient voltage rating?
Operating a transfer switch beyond its voltage rating precipitates insulation degradation, contact arcing, and eventual catastrophic failure. The timeline varies based on the magnitude of overvoltage, but even modest exceedances accelerate aging through cumulative stress. Electrical codes expressly prohibit such installations, and insurance implications compound the technical risks.
Can I use a higher-voltage-rated switch on a lower-voltage system?
Absolutely. Deploying a switch with voltage rating exceeding system voltage presents no operational drawbacks. The enhanced insulation and clearances provide additional safety margins. However, verify that control circuit voltage compatibility remains appropriate, as some transfer switch controllers derive operating power from the main conductors.
Selecting automatic transfer switch voltage ratings synthesizes electrical theory, application-specific requirements, and long-term infrastructure strategy. For sports and entertainment venues, healthcare campuses, and manufacturing facilities alike, this specification demands methodical analysis rather than superficial specification sheet comparison. The intersection of voltage rating adequacy and system reliability establishes the foundation upon which continuous power availability rests.
