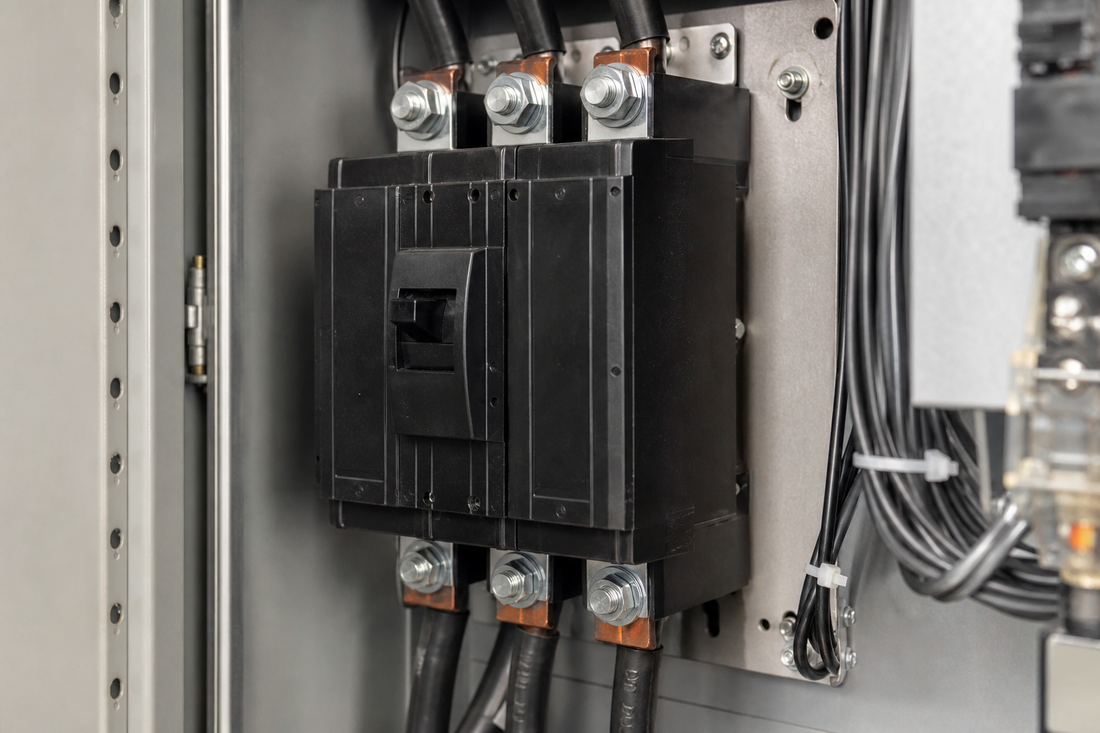

Square D 100% Rated Breakers: When Full Capacity Matters

In the demanding world of electrical distribution, the distinction between standard-rated and 100% rated circuit breakers represents more than a mere specification—it embodies a fundamental approach to system design and operational efficiency. For facilities requiring maximum power utilization without compromising safety margins, understanding 100 percent rated circuit breaker applications becomes paramount to achieving optimal electrical infrastructure performance.

The conventional 80% derating factor applied to most circuit breakers constrains utilization, necessitating oversized equipment and inflated infrastructure costs. This limitation stems from thermal considerations within standard enclosures, where continuous operation at nameplate amperage generates excessive heat accumulation. The ramifications extend beyond equipment selection, influencing conduit sizing, upstream protection coordination, and overall system economics.

Understanding the Fundamentals of 100% Rating

A 100% rated circuit breaker distinguishes itself through rigorous testing protocols and enhanced construction methodologies that permit continuous operation at full nameplate amperage. Unlike their 80% rated counterparts, these devices undergo specialized thermal endurance testing within appropriately configured enclosures, validating their capacity to handle sustained maximum current without degradation or nuisance tripping.

The designation requires specific installation parameters. The enclosure must provide adequate ventilation characteristics, and termination methods must conform to manufacturer specifications. Terminal lugs, bus bar connections, and conductor sizing all contribute to the thermal equilibrium necessary for sustained full-capacity operation. Deviation from these parameters negates the 100% rating, reverting the breaker to standard 80% operational constraints.

Testing Standards and Certification Requirements

UL 489 and NEMA AB-1 establish the rigorous testing protocols governing 100% rated breakers. These standards mandate extended duration testing at maximum continuous current within representative enclosure configurations. Temperature rise measurements at critical junctures—including terminals, bus connections, and internal mechanisms—must remain within prescribed thresholds throughout the evaluation period.

The certification process validates not merely the breaker itself but the complete assembly configuration. This holistic approach ensures that field installations replicate the tested conditions, maintaining the thermal performance characteristics verified during certification procedures.

Square D PGP36080CU33A: Engineered for Maximum Utilization

The Square D PGP36080CU33A represents a sophisticated solution for applications demanding unwavering full-capacity performance. This 800-ampere, three-pole breaker incorporates LSI (Long-Time, Short-Time, Instantaneous) electronic trip functionality, providing granular overcurrent protection tailored to specific load characteristics.

The PGP36080CU33A addresses the fundamental challenge confronting electrical contractors and facility managers: maximizing existing infrastructure capacity without costly service upgrades. By eliminating the 80% derating constraint, this breaker enables facilities to extract full utilization from installed switchgear, deferring or eliminating expensive expansion projects. The electronic trip unit furnishes adjustable parameters for precise coordination with downstream protective devices, enhancing selectivity and minimizing nuisance interruptions that plague critical operations.

For data center builders and facility managers overseeing mission-critical environments, the implications prove substantial. Server rack densification continues accelerating, with individual cabinets now consuming 15-30 kW routinely. The ability to operate distribution equipment at nameplate capacity translates directly to enhanced power delivery density without proportional infrastructure expansion.

Critical Applications Requiring Full-Capacity Operation

Certain operational environments present load profiles where 100 percent rated circuit breaker applications become not merely advantageous but essential to functional viability. These scenarios share common characteristics: sustained high utilization factors, space constraints limiting equipment expansion, and economic sensitivities to infrastructure redundancy.

Healthcare Facility Power Distribution

Modern medical centers operate as perpetual motion machines, with critical systems maintaining unwavering uptime requirements. Imaging equipment, surgical suites, and life-support systems generate continuous substantial loads. The 100% rated breaker paradigm enables electrical designers to right-size distribution equipment, allocating the capacity differential toward redundant pathways rather than oversized primary components.

Emergency power systems particularly benefit from this approach. Automatic transfer switches and generator distribution assemblies represent significant capital expenditures. Utilizing 100% rated overcurrent protection optimizes generator capacity utilization, potentially reducing genset sizing requirements or enabling additional critical loads within existing emergency power envelopes.

Industrial Manufacturing and Process Facilities

Cold storage facilities, 3D print farms, and continuous process manufacturing operations present demanding load profiles characterized by sustained maximum draw periods. Refrigeration compressors cycle minimally once operational temperatures stabilize, while additive manufacturing arrays maintain consistent power consumption throughout extended production runs.

Data Center and Colocation Environments

Data center builders confront relentless pressure to maximize power delivery per square foot while maintaining N+1 or 2N redundancy architectures. Every ampere of unutilized capacity represents revenue opportunity cost. The 100% rated breaker methodology aligns perfectly with high-density computing infrastructure, where PDU (Power Distribution Unit) circuits routinely operate at elevated utilization factors.

Colocation providers particularly appreciate the flexibility afforded by full-capacity protection. Customer power allocation becomes more granular and efficient, enhancing facility utilization metrics that directly impact profitability.

Design Considerations and Implementation Protocols

Successful deployment of 100% rated circuit breakers demands meticulous attention to installation parameters and thermal management principles. Engineering consultants and electrical contractors must navigate several critical considerations to preserve the performance characteristics validated during UL testing.

Enclosure Selection and Ventilation Requirements

The enclosure functions as an integral component of the thermal management system. Manufacturer specifications delineate precise requirements regarding enclosure type, dimensions, and ventilation provisions. NEMA Type 1 enclosures typically accommodate 100% rating more readily than sealed NEMA 3R or 4X configurations, though specialized variants exist for harsh environment applications.

Adequate clearances surrounding the breaker facilitate convective air circulation essential for heat dissipation. Cramped installations with insufficient spacing compromise thermal performance, potentially inducing premature trip activation or accelerated component degradation.

Termination Methods and Conductor Sizing

Terminal connections represent critical thermal junctures where improper installation precipitates hotspot formation. Torque specifications must be observed meticulously, utilizing calibrated tools to achieve manufacturer-recommended values. Both inadequate and excessive torque produce deleterious effects—insufficient clamping force increases contact resistance, while overtightening damages conductors or terminal hardware.

Conductor ampacity calculations must account for the full nameplate current without derating. Temperature ratings, insulation types, and ambient conditions all factor into proper conductor selection. Mechanical contractors coordinating with electrical installations should recognize that 100% rated applications may necessitate alternative routing paths to maintain thermal separation from heat-generating equipment.

Economic Analysis: Quantifying the Value Proposition

Real estate developers and facility managers evaluating electrical infrastructure investments benefit from structured cost-benefit analysis comparing 100% rated versus standard protection schemes. The evaluation encompasses multiple variables extending beyond initial equipment acquisition costs.

The cumulative effect frequently justifies the premium associated with 100% rated devices, particularly in retrofit scenarios where existing service capacity constraints would otherwise necessitate utility coordination and expensive upgrades.

Frequently Asked Questions

Can existing 80% rated breakers be upgraded to 100% rating?

No. The 100% rating derives from specific design characteristics and UL testing validation. Field modification or reclassification of standard-rated breakers violates listing requirements and compromises safety. Only breakers explicitly manufactured and certified for 100% continuous operation should be applied in such service.

Do all manufacturers offer 100% rated circuit breakers?

While most major manufacturers produce 100% rated devices, availability varies across product lines and amperage ranges. Square D, Siemens, ABB, and Eaton maintain comprehensive offerings. Specification development should verify availability within the selected equipment ecosystem to ensure compatibility with existing or planned infrastructure.

What documentation must electrical contractors provide for inspection approval?

Authorities Having Jurisdiction typically require submittal documentation including manufacturer specifications confirming 100% rating, installation instructions detailing enclosure requirements, and field verification that actual installation parameters conform to tested configurations. Maintaining this documentation protects all stakeholders and facilitates efficient inspection processes.

Maintenance Protocols for Sustained Performance

Maintenance managers overseeing facilities with 100% rated installations should implement enhanced monitoring protocols. Infrared thermography conducted during peak load periods identifies developing anomalies before they precipitate failures. Annual inspections should verify terminal torque values, as thermal cycling can induce gradual loosening over operational lifespans.

Cleaning procedures assume heightened importance. Accumulated debris within enclosures impedes air circulation, degrading thermal performance. Scheduled maintenance intervals should incorporate thorough enclosure cleaning, particularly in industrial environments where airborne particulates proliferate.

The judicious application of 100 percent rated circuit breaker applications empowers engineering companies, electrical contractors, and facility stakeholders to optimize electrical infrastructure investments. By understanding the technical requirements, application scenarios, and economic implications, decision-makers can strategically deploy these sophisticated protective devices where they deliver maximum value—transforming constraint into capability within modern electrical distribution systems.
