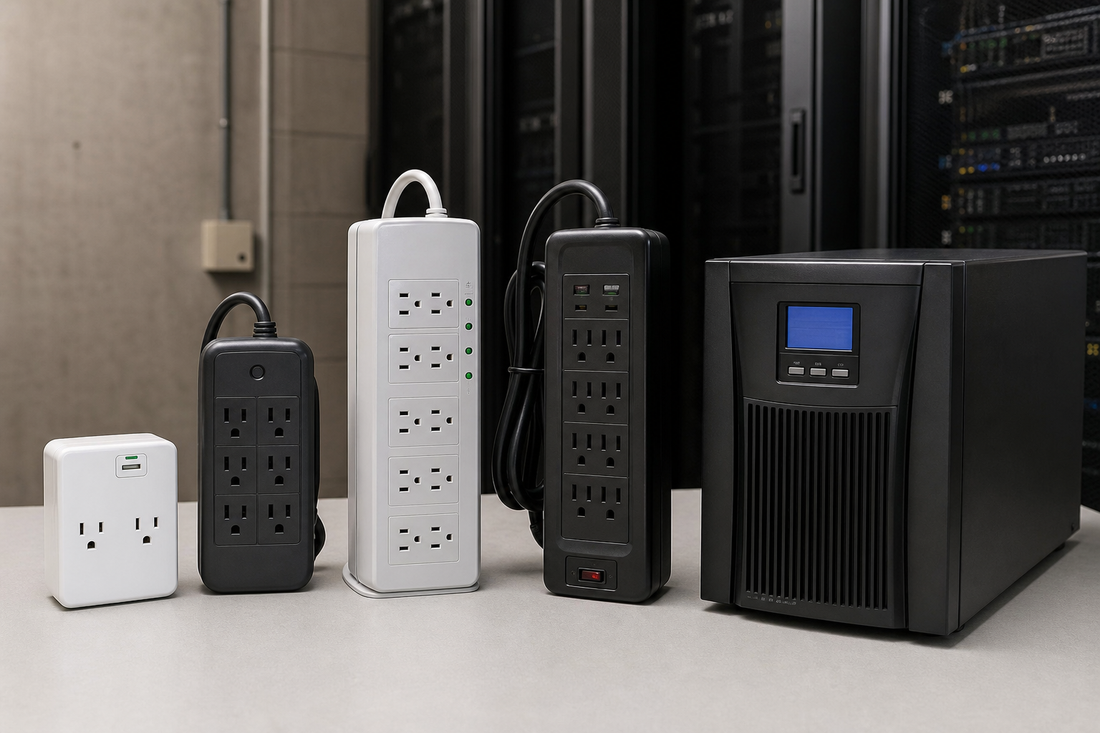

Surge Protector Selection Guide for Critical Power Equipment
Electrical disturbances and voltage anomalies pose existential threats to mission-critical power infrastructure. The selection of appropriate surge suppression apparatus demands meticulous evaluation of technical specifications, environmental parameters, and operational prerequisites. For organizations managing data centers, healthcare facilities, or industrial operations, understanding commercial surge protector selection criteria separates catastrophic equipment failure from uninterrupted operational continuity.
Transient voltage surge suppressors (TVSS) function as the first line of defense against overvoltage events originating from lightning strikes, utility switching operations, or internal load fluctuations. The ramifications of inadequate protection extend beyond immediate equipment damage—encompassing data loss, revenue interruption, and potential safety hazards.
Understanding Surge Protection Fundamentals
Surge protective devices intercept voltage spikes by diverting excess current to ground through metal oxide varistors (MOVs), silicon avalanche diodes, or gas discharge tubes. Each technology exhibits distinct clamping voltages, response times, and energy absorption capabilities. MOV-based suppressors dominate commercial applications due to their rapid reaction characteristics and substantial joule ratings.
The mechanism operates through nonlinear resistance—maintaining high impedance under normal conditions while transitioning to low resistance states during overvoltage events. This instantaneous conductivity change shunts destructive energy away from sensitive electronic components and motor windings.
Effective surge protection requires consideration of let-through voltage, maximum surge current capacity, and the cumulative energy dissipation throughout the device's operational lifespan.
Critical Selection Criteria for Commercial Applications
Determining the optimal surge protective device necessitates comprehensive analysis of multiple interdependent factors. Electrical contractors and facility managers must evaluate both immediate requirements and long-term infrastructure resilience.
Voltage Protection Rating (VPR)
The VPR indicates the maximum voltage that will appear across the suppressor's terminals during a surge event. Lower VPR values provide superior equipment protection but may sacrifice longevity under repetitive surge conditions. For sensitive electronic loads such as programmable logic controllers and variable frequency drives, VPR values below 800 volts prove essential. Legacy equipment with robust input stages may tolerate higher VPR thresholds approaching 1200 volts.
Maximum Continuous Operating Voltage (MCOV)
MCOV represents the highest steady-state voltage the suppressor can withstand indefinitely without degradation. This specification must exceed the system's maximum expected voltage, including temporary overvoltage conditions. Three-phase commercial installations typically require MCOV ratings of 320-340 volts line-to-neutral for 480Y/277V systems, accounting for voltage regulation tolerances and utility variations.
Sourcing Professional-Grade Surge Protection Solutions
Identifying reliable suppliers who understand the technical nuances of power protection equipment proves invaluable for engineering consultants and mechanical contractors. Specialized distributors offering OEM replacement parts and genuine surge suppression devices ensure compatibility with existing infrastructure while maintaining manufacturer warranties.
Access to comprehensive product selections enables specification of appropriately rated devices for diverse applications—from generator transfer switch protection to dedicated data center power distribution units. Expedited shipping capabilities minimize downtime during emergency replacement scenarios, while technical support assists with proper installation procedures and compliance verification.
Energy Absorption and Surge Current Ratings
The surge current rating, expressed in kiloamperes (kA), defines the maximum impulse current the device can conduct without failure. Commercial installations demand suppressors rated between 50kA and 200kA per phase, depending on exposure level and upstream impedance. Facilities with direct utility feeds or extensive aerial conductors require higher ratings than those served through underground distribution.
Energy absorption capacity, measured in joules, indicates cumulative surge energy the device can dissipate before requiring replacement. Industrial environments with frequent switching transients necessitate suppressors exceeding 1000 joules per mode of protection. This specification directly correlates with device longevity under real-world conditions.
| Application Type | Minimum Surge Current Rating | Recommended Energy Rating |
|---|---|---|
| Data Centers | 120kA per phase | 2000+ joules |
| Healthcare Facilities | 100kA per phase | 1500+ joules |
| Manufacturing Operations | 80kA per phase | 1200+ joules |
| Commercial Buildings | 50kA per phase | 800+ joules |
Response Time and Clamping Characteristics
Nanosecond-level response times distinguish premium surge suppressors from basic models. Electronic equipment with microprocessor-based controls requires protection devices that activate within one nanosecond to prevent insidious damage to semiconductor junctions. Gas discharge tubes, while offering substantial surge current capacity, exhibit response delays exceeding 100 nanoseconds—necessitating hybrid configurations with MOVs for comprehensive protection.
Clamping voltage curves reveal the suppressor's behavior across varying surge amplitudes. Flat clamping characteristics ensure consistent let-through voltage regardless of surge magnitude, providing predictable protection levels. Engineering companies should request manufacturer documentation including IEEE C62.41 test results to verify performance under standardized waveforms.
Installation Topology and Coordination
Cascaded protection schemes employ multiple suppressors at the service entrance, distribution panels, and point-of-use locations. This coordinated approach manages energy distribution across protection stages while preventing improper operation. Service entrance suppressors absorb the bulk of surge energy, while downstream devices provide fine-grain protection for sensitive loads.
Service Entrance Protection
Primary suppressors installed at the main switchgear or automatic transfer switch require robust construction and substantial energy handling capabilities. Type 1 SPDs (formerly Mode 1) designed for installation on the line side of the main overcurrent device offer maximum protection but demand careful coordination with utility equipment.
Distribution Panel Protection
Secondary suppressors positioned at subpanels and motor control centers intercept transients generated by internal loads while providing backup protection against utility-originated surges. These Type 2 SPDs balance moderate energy absorption with compact form factors suitable for panelboard mounting.
Monitoring, Diagnostics, and Maintenance Considerations
Advanced surge protective devices incorporate visual indicators, audible alarms, and remote monitoring capabilities that alert maintenance managers to degraded protection status. LED arrays displaying individual mode functionality enable rapid assessment without measurement equipment. Dry contact outputs facilitate integration with building management systems for centralized monitoring.
Thermally-protected MOVs featuring internal disconnection mechanisms prevent thermal runaway conditions that could compromise system safety. This feature proves particularly critical in applications where regular inspection intervals exceed six months.
- Verify indicator lamp status during routine facility inspections
- Document surge counter readings to track cumulative exposure
- Schedule professional testing every 24-36 months for critical systems
- Maintain manufacturer documentation including test reports and warranty information
- Replace suppressors immediately upon end-of-life indication
Frequently Asked Questions About Commercial Surge Protection
What distinguishes commercial surge protectors from residential models?
Commercial units feature substantially higher surge current ratings, superior energy absorption capacities, and monitoring capabilities absent from residential devices. They conform to stringent UL 1449 Type 1 or Type 2 classifications with verified let-through voltage specifications.
How does altitude affect surge protector performance?
Gas discharge tube components experience reduced breakdown voltage at elevations exceeding 6000 feet due to decreased atmospheric pressure. Facilities in mountainous regions require suppressors specifically rated for high-altitude operation to maintain effective clamping voltages.
Can surge protectors interfere with ground fault detection systems?
Improperly installed suppressors may create leakage paths that trip sensitive ground fault equipment. Quality devices incorporate neutral-ground spacing that prevents nuisance tripping while maintaining effective protection. Installation by qualified electrical contractors ensures compliance with NEC Article 285 requirements.
Compliance and Standards Alignment
Specification of UL 1449 listed devices ensures conformance with recognized safety standards governing construction, performance, and marking requirements. The fourth edition introduced enhanced testing protocols including abnormal overvoltage assessment and temporary overvoltage (TOV) withstand ratings.
IEEE C62.41 and C62.45 standards define location categories and exposure levels that guide proper device selection for specific installation environments. Real estate developers and data center builders should reference these documents during design specification to ensure adequate protection levels.
For mission-critical applications supporting healthcare life safety systems, sports and entertainment venues, or cold storage facilities, redundant protection schemes with independent monitoring provide defense-in-depth against protection system failures. The incremental cost of premium suppressors pales compared to potential losses from unprotected surge events damaging generators, automatic transfer switches, or sophisticated building automation systems.
