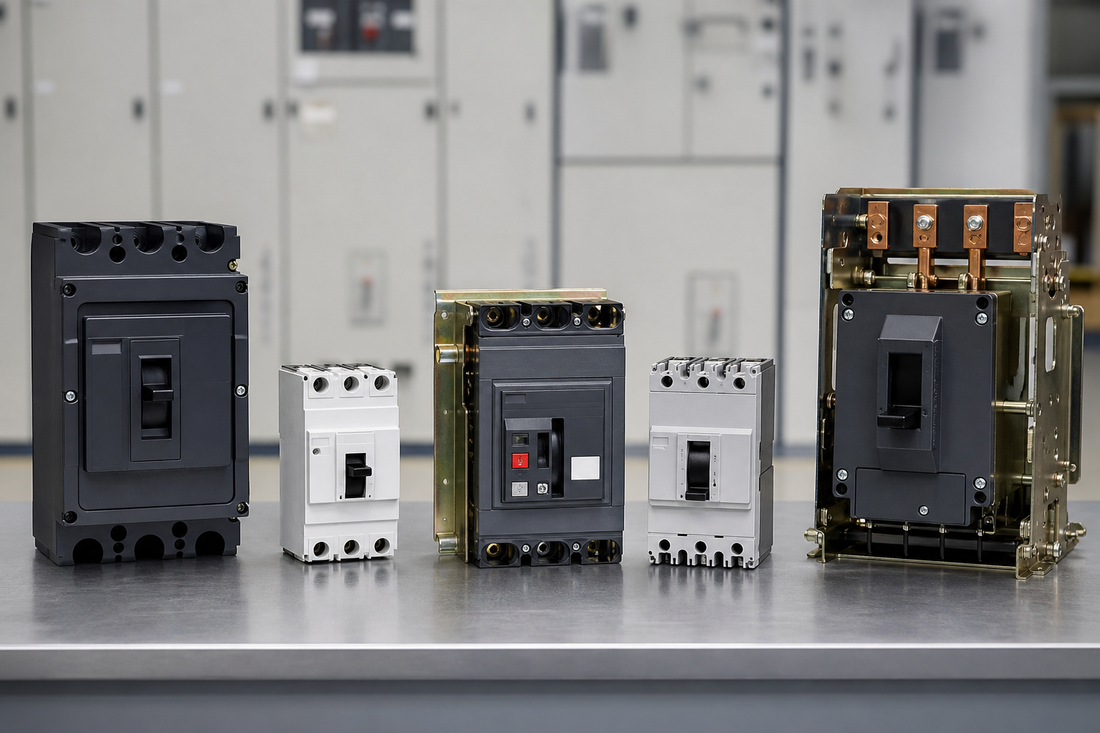

Types of Circuit Breakers: Engineering Selection Framework

Circuit protection stands as the cornerstone of electrical infrastructure reliability. When electrical current exceeds predetermined thresholds, properly selected protective devices prevent catastrophic failures, equipment damage, and safety hazards. Understanding the nuanced distinctions between various interrupting technologies empowers engineers and facility managers to architect robust power distribution systems that safeguard both personnel and capital investments.

The landscape of overcurrent protection devices encompasses far more than simple on-off switches. Each interrupting mechanism operates according to distinct physical principles, responds to different fault conditions, and serves specialized applications within industrial, commercial, and critical infrastructure environments.

Thermal-Magnetic Circuit Breakers: The Industry Workhorse

Thermal-magnetic breakers represent the predominant technology in low-voltage applications. These devices incorporate two complementary protection mechanisms within a single enclosure. The thermal element responds to sustained overcurrent conditions through bimetallic strip deflection—a phenomenon where dissimilar metals expand at different rates when heated by excessive current flow. This gradual response suits prolonged overload scenarios where current exceeds rated values by modest percentages.

The magnetic element provides instantaneous protection against short-circuit conditions. When fault current surges through the electromagnetic coil, the resulting magnetic field displaces a trip armature that mechanically separates the contacts. This rapid response—typically occurring within milliseconds—prevents thermal damage to conductors and connected equipment before heat accumulation reaches destructive levels.

Electrical contractors frequently specify thermal-magnetic devices for panelboard installations, motor control centers, and branch circuit protection. Their proven reliability and cost-effectiveness make them ubiquitous in healthcare facilities, educational institutions, and manufacturing environments where standardized protection schemes simplify maintenance protocols.

Navigating Breaker Selection for Your Infrastructure

Sourcing the appropriate interrupting devices demands both technical acumen and access to reliable OEM-grade components. Whether replacing existing protective equipment or commissioning new installations, procurement decisions directly impact system reliability and operational continuity.

Facility managers and maintenance supervisors benefit from comprehensive inventories that span multiple manufacturers and voltage classifications. Time-sensitive projects—from data center expansions to emergency generator integration—cannot afford protracted lead times. Immediate availability of molded case breakers, miniature circuit breakers, and specialty interrupting devices accelerates project completion while maintaining specification compliance.

Molded Case Circuit Breakers: Versatile Protection Architecture

Molded case circuit breakers (MCCBs) occupy the middle ground between miniature breakers and large air circuit breakers. Their construction encases the interrupting mechanism within a thermosetting resin housing, providing robust protection against environmental contaminants while maintaining compact dimensions. Ampacity ratings typically span from 15 to 2,500 amperes, addressing diverse load requirements within commercial and industrial settings.

Modern MCCBs frequently incorporate electronic trip units that supersede traditional thermal-magnetic elements. These microprocessor-controlled devices offer adjustable parameters including long-time delay, short-time delay, instantaneous pickup, and ground fault protection. Engineering consultants leverage this configurability to optimize coordination studies—ensuring selective tripping sequences that isolate faults without unnecessarily de-energizing upstream circuits.

Real estate developers commissioning multi-tenant buildings appreciate the scalability MCCBs provide. Individual tenant spaces receive dedicated protection while maintaining integration with building-level monitoring systems. Sports and entertainment venues similarly benefit from the load management capabilities these devices afford during peak demand events.

Electronic Trip Units: Precision Through Digital Control

The transition from electromechanical to electronic tripping mechanisms revolutionized protection philosophy. Current transformers continuously monitor load conditions, feeding digital signals to embedded microprocessors that execute sophisticated algorithms. This architecture enables features impossible with bimetallic elements: programmable time-current curves, harmonic filtering, ground fault sensitivity adjustment, and comprehensive event logging.

Data center builders specify electronically-tripped breakers for mission-critical infrastructure where power quality monitoring and predictive maintenance justify the premium investment. The diagnostic capabilities—accessible through communication protocols like Modbus and BACnet—integrate seamlessly with building management systems, providing real-time visibility into electrical distribution health.

Air Circuit Breakers: High-Capacity Interruption

When fault currents exceed 2,500 amperes or voltage levels demand enhanced arc extinction capabilities, air circuit breakers (ACBs) become the technology of choice. Unlike their molded case counterparts, ACBs employ open construction with individually accessible components. This modularity facilitates field maintenance and testing without complete unit replacement—a crucial consideration for facilities where equipment lifecycle costs outweigh initial capital expenditure.

The interrupting mechanism relies on arc chutes—specialized chambers containing steel plates that divide and cool the electrical arc formed during contact separation. As current flow ceases, atmospheric air serves as the dielectric medium, hence the nomenclature. Mechanical contractors installing ACBs in generator paralleling switchgear appreciate the visual verification these devices provide—contact position remains clearly visible, satisfying safety lockout requirements.

Drawout Versus Fixed Mounting Configurations

ACBs manifest in both fixed and drawout mounting arrangements. Fixed units bolt directly to busbars, maximizing space efficiency in compact switchgear lineups. Drawout variants mount on rails or carriages, enabling physical extraction from the energized buswork without disturbing primary connections. This feature proves invaluable in applications demanding periodic testing or rapid replacement—cold storage facilities and manufacturing plants where production downtime carries steep financial penalties.

Vacuum Circuit Breakers: Medium-Voltage Excellence

Medium-voltage applications—typically 1kV to 38kV—frequently employ vacuum interruption technology. Sealed vacuum bottles contain the electrical contacts within an environment approaching absolute pressure absence. When contacts separate under load, the vacuum provides exceptional dielectric strength, extinguishing arcs rapidly while minimizing contact erosion.

Engineering companies designing primary distribution systems for industrial campuses specify vacuum breakers for their longevity and minimal maintenance requirements. The sealed construction eliminates contamination concerns plaguing oil or air-blast alternatives. Healthcare facilities operating critical life-safety systems value the reliability vacuum technology delivers—mean time between failures often exceeds twenty years with proper application.

Sulfur Hexafluoride Breakers: Transmission-Level Protection

At the apex of voltage ratings and interrupting capacity stand sulfur hexafluoride (SF6) circuit breakers. This electronegative gas possesses extraordinary arc-quenching properties, enabling interruption of fault currents exceeding 63kA at voltages reaching 800kV. Utility substations and large industrial installations with dedicated transmission connections rely on SF6 technology where alternatives prove inadequate.

The environmental considerations surrounding SF6—a potent greenhouse gas—drive ongoing development of alternative insulating media. However, for existing infrastructure and applications demanding maximum interrupting capability, proper handling protocols and leak monitoring mitigate environmental concerns while delivering unparalleled performance.

Selection Framework: Matching Technology to Application

Engineers confronting breaker selection decisions must synthesize multiple variables: voltage classification, load characteristics, fault current availability, coordination requirements, environmental conditions, and lifecycle cost projections. The following framework structures this complex decision process:

Load Characteristic Considerations

Linear resistive loads present straightforward protection scenarios. However, modern facilities increasingly incorporate nonlinear loads—variable frequency drives, switched-mode power supplies, LED lighting systems—that generate harmonic distortion. These current waveform aberrations can induce nuisance tripping in traditional thermal-magnetic devices calibrated for sinusoidal current.

Electronic trip units with harmonic rejection algorithms address this challenge. Similarly, inductive loads such as transformers and motors exhibit inrush currents during energization that momentarily exceed normal operating levels by factors of six or more. Time-delay settings prevent spurious tripping during these transient conditions while maintaining responsiveness to genuine fault events.

Coordination and Selectivity: System-Level Thinking

Individual breaker selection represents merely the initial phase of protection system design. Coordination studies ensure that the protective device closest to a fault operates first, minimizing the extent of de-energized circuits. This selectivity preserves continuity for unaffected loads—particularly crucial in facilities like hospitals where partial power loss might compromise patient care, or manufacturing operations where production line segments can continue operation during isolated faults.

Time-current curve analysis forms the foundation of coordination studies. Engineers overlay the operating characteristics of series-connected protective devices, verifying adequate separation between curves. Adjustable electronic trip units provide the flexibility to optimize coordination without changing physical devices—a significant advantage during facility expansions or load additions.

Frequently Asked Questions About Circuit Breaker Selection

What differentiates interrupting capacity from continuous current rating?

Continuous current rating specifies the maximum steady-state current a breaker can carry indefinitely without thermal degradation. Interrupting capacity defines the maximum fault current the device can safely interrupt and clear. A 100-ampere breaker might possess a 22kA interrupting rating—meaning it safely carries 100A continuously but can interrupt short-circuit currents up to 22,000 amperes.

How do ambient conditions affect breaker performance?

Thermal elements calibrate at specific ambient temperatures, typically 40°C. Elevated temperatures reduce effective carrying capacity—a breaker rated 100A at 40°C might trip at 90A in a 60°C environment. Conversely, subfreezing conditions can affect mechanical operation. Manufacturers provide derating factors and environmental specifications that must inform selection decisions for extreme conditions like cold storage facilities or outdoor installations.

When should ground fault protection be specified?

Ground fault protection detects leakage currents flowing through unintended paths to earth—often precursors to more serious faults or indicators of insulation degradation. The National Electrical Code mandates ground fault protection for certain service disconnects and feeder configurations. Beyond code requirements, facility managers serving healthcare, educational, or residential occupancies often specify ground fault devices as additional safety measures against electrocution hazards.

Maintenance and Lifecycle Considerations

Circuit breakers constitute mechanical devices subject to wear, contact degradation, and calibration drift. Establishing preventive maintenance protocols extends service life and ensures protective functions remain within specification. Maintenance intervals vary by device type and operating environment:

Drawout breakers dramatically simplify testing by enabling removal without disturbing primary connections. This feature justifies their premium cost in facilities where testing frequency or equipment accessibility challenges exist.

Obsolescence management presents ongoing challenges as manufacturers discontinue product lines. Maintaining adequate spare inventories of critical breakers ensures rapid restoration capability. Partnering with suppliers offering comprehensive OEM replacement part access—including legacy devices—mitigates obsolescence risks while supporting fast restoration timelines crucial for mission-critical facilities.

The engineering selection of circuit protection devices synthesizes electrical theory, application requirements, economic analysis, and forward-looking infrastructure planning. Whether commissioning greenfield data centers, renovating aging educational facilities, or maintaining operational reliability in manufacturing environments, the protective device selections made today fundamentally determine system performance for decades hence. Thoughtful evaluation of available technologies against specific application demands yields electrical infrastructure that protects assets, ensures personnel safety, and delivers the reliability modern operations demand.
