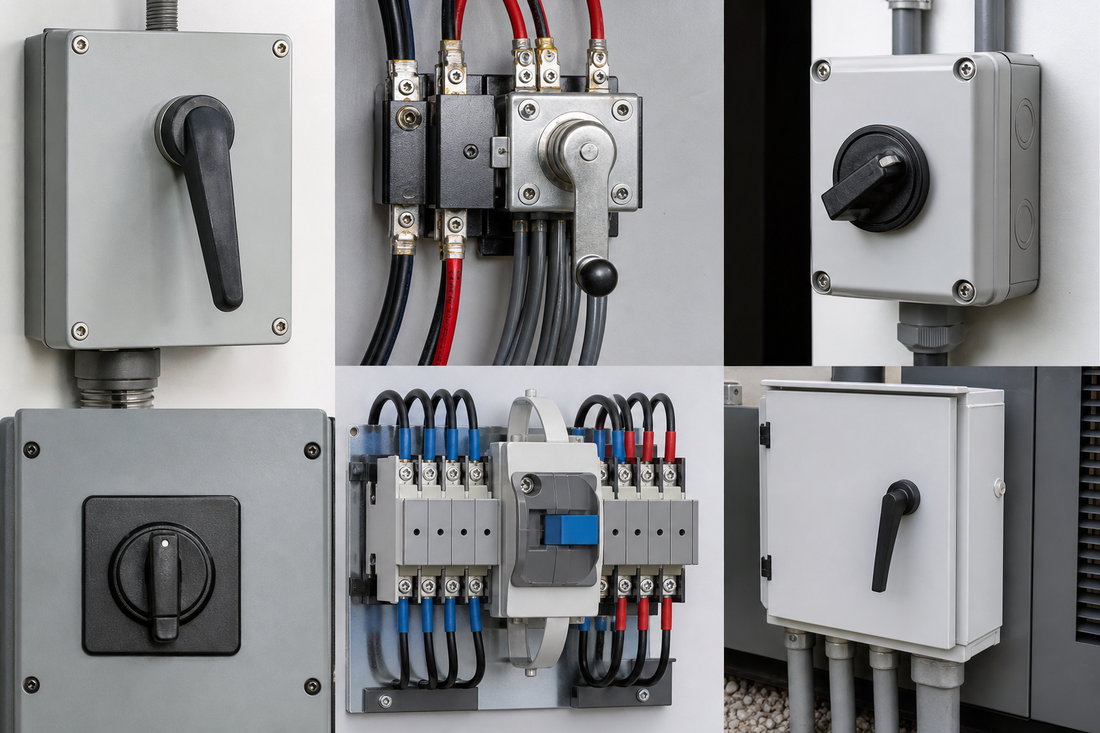

Types of Generator Switches: Complete Comparison
When power reliability becomes paramount, selecting the appropriate switching mechanism for your standby generator system determines operational efficacy and safety compliance. The types of generator switches available today offer varying degrees of automation, complexity, and suitability for different applications. Understanding these distinctions enables electrical contractors, facility managers, and engineering professionals to specify components that align with operational requirements and regulatory standards.
Generator switches serve as the critical nexus between utility power and emergency generation systems. Their fundamental purpose involves disconnecting normal power sources while simultaneously energizing backup circuits. This transition must occur seamlessly to protect sensitive equipment and maintain continuous operations in mission-critical environments such as data centers, healthcare facilities, and manufacturing operations.
Manual Transfer Switches: Foundation of Generator Switching
Manual transfer switches represent the most elemental approach to generator integration. These devices require physical human intervention to transition between utility and generator power. An operator must manually reposition a lever or handle mechanism to complete the power source changeover.
The simplicity of manual switches translates to exceptional reliability. With fewer electronic components and control circuits, these switches demonstrate remarkable longevity in demanding environments. Mechanical contractors frequently specify manual transfer switches for residential applications, small commercial installations, and scenarios where power outages occur infrequently enough to justify the manual intervention requirement.
However, this simplicity introduces operational constraints. Manual switches necessitate personnel presence during utility failures, creating potential response delays. For facilities operating around-the-clock schedules or locations with limited on-site staffing, this dependency represents a significant vulnerability. Cold storage facilities and manufacturing operations cannot afford extended interruptions while awaiting manual switchover procedures.
Three-Position Configuration Standards
Most manual transfer switches employ a three-position architecture: utility, neutral (off), and generator positions. This configuration creates a mechanical interlock preventing simultaneous connection of both power sources—a critical safety feature preventing backfeeding that could endanger utility workers or damage equipment. Engineering consultants recognize this mechanical isolation as inherently more fail-safe than electronic interlock systems.
Automatic Transfer Switches: The Industry Standard
Automatic transfer switches revolutionized backup power systems by eliminating human intervention requirements. These sophisticated devices continuously monitor utility voltage and frequency parameters, automatically initiating generator startup sequences upon detecting power anomalies exceeding predetermined thresholds.
The operational sequence begins when the automatic transfer switch control circuitry identifies utility voltage degradation or complete failure. The controller immediately sends start signals to the generator while simultaneously preparing for load transfer. Once generator output stabilizes within acceptable voltage and frequency parameters—typically requiring fifteen to thirty seconds—the switch executes the transfer operation, energizing emergency circuits.
Facility managers overseeing healthcare institutions, educational campuses, and sports entertainment venues prioritize automatic transfer switches for their autonomous operation. These environments cannot tolerate extended outages affecting HVAC systems, lighting, life safety equipment, or critical infrastructure. The automatic response ensures continuity regardless of staffing availability or time-of-day considerations.
Open Transition Versus Closed Transition Transfer
Automatic transfer switches subdivide into open transition and closed transition categories based on their switching methodology. Open transition switches momentarily interrupt all power during the changeover process, creating a brief de-energization period measured in milliseconds. This approach provides absolute assurance against paralleling dissimilar power sources.
Closed transition switches briefly parallel utility and generator power sources during transfer, maintaining uninterrupted power delivery. This sophisticated approach requires precise synchronization controls ensuring voltage magnitude, frequency, and phase angle alignment before connection. Data center builders and operations with ultra-sensitive electronic equipment frequently specify closed transition switches to eliminate even momentary disruptions.
Bypass Isolation Transfer Switches: Maintenance Continuity
Bypass isolation transfer switches incorporate additional switching mechanisms enabling switch maintenance or replacement without disrupting power availability. This configuration proves invaluable for facilities requiring continuous operation during scheduled maintenance windows or emergency repair situations.
The bypass configuration typically includes a mechanical bypass switch and isolation switch assembly surrounding the primary automatic transfer switch. During maintenance procedures, operators first close the bypass switch, establishing a direct connection between the preferred power source and load circuits. Subsequently, they open the isolation switch, completely de-energizing the automatic transfer switch for safe servicing.
Real estate developers constructing mission-critical facilities increasingly mandate bypass isolation switches in design specifications. The ability to maintain, test, or replace transfer switch components without scheduling facility shutdowns delivers substantial operational value. Engineering companies designing healthcare facilities, where power interruptions literally endanger lives, consider bypass isolation capabilities non-negotiable.
Service Entrance Rated Transfer Switches
Service entrance rated transfer switches possess enhanced current-carrying capacity and interrupting ratings suitable for installation at utility service entry points. These robust devices eliminate the need for separate main circuit breakers, simplifying electrical distribution design while reducing installation costs and panel space requirements.
The distinguishing characteristic involves overcurrent protection integration meeting National Electrical Code service entrance requirements. Rather than installing main breakers followed by separate transfer switches, service entrance rated units combine these functions within a single enclosure. Mechanical contractors appreciate the installation efficiency and reduced conductor routing complexity this consolidation provides.
Factories, 3D print farms, and industrial operations with substantial electrical demands frequently employ service entrance rated transfer switches. The higher amperage ratings—commonly ranging from 400 to 4000 amperes—accommodate significant loads while maintaining compact footprints within electrical rooms facing space constraints.
Load Management Transfer Switches
Load management transfer switches incorporate intelligent control systems that selectively energize circuits based on generator capacity and priority hierarchies. Rather than transferring entire electrical loads simultaneously, these switches sequence load application preventing generator overload conditions.
Intelligent load sequencing prevents nuisance tripping while maximizing available generator capacity across essential circuits without requiring oversized generation equipment.
The controller continuously monitors generator output capacity while managing connected loads according to preprogrammed priority schemes. Critical circuits energize immediately upon successful transfer, while non-essential loads remain de-energized or activate progressively as generator capacity permits. Should loads exceed available capacity, the controller automatically sheds lower-priority circuits maintaining system stability.
Facility maintenance managers responsible for educational facilities, sports complexes, and multi-building campuses deploy load management systems to optimize generator utilization. Rather than purchasing generators sized for peak simultaneous demand—an inefficient and capital-intensive approach—they specify smaller generators paired with sophisticated load management ensuring adequate capacity for mission-critical functions.
Comparative Analysis: Selecting Appropriate Switch Types
| Switch Type | Automation Level | Typical Application | Maintenance Complexity |
|---|---|---|---|
| Manual Transfer | None | Residential, Small Commercial | Low |
| Automatic Transfer | Full | Commercial, Industrial, Healthcare | Moderate |
| Bypass Isolation | Full with Serviceability | Mission-Critical Facilities | Moderate |
| Service Entrance Rated | Full | High-Amperage Applications | Moderate to High |
| Load Management | Full with Intelligence | Campus Environments, Load Optimization | High |
Electrical Code Compliance and Rating Considerations
Selecting generator switches requires meticulous attention to electrical codes, standards, and environmental ratings. The National Electrical Code Article 700 governs emergency systems, Article 701 addresses legally required standby systems, and Article 702 covers optional standby systems. Each classification imposes specific requirements affecting switch selection.
Transfer switches must possess adequate voltage, current, and interrupting ratings for their intended application. Voltage ratings must match or exceed system voltage, while continuous current ratings should accommodate maximum anticipated loads with appropriate safety margins. Engineering consultants typically specify switches rated at least 125% of calculated load to prevent thermal stress and premature component degradation.
Environmental considerations influence enclosure ratings. Outdoor installations require NEMA 3R or NEMA 4X enclosures providing weather resistance, while indoor locations may utilize NEMA 1 enclosures. Corrosive environments demand stainless steel construction or specialized coatings preventing accelerated deterioration.
UL Listing and Testing Standards
Underwriters Laboratories Standard 1008 establishes testing protocols and performance criteria for automatic transfer switches. This comprehensive standard evaluates mechanical endurance, contact resistance, temperature rise, and coordination with overcurrent protective devices. Specifying UL 1008 listed equipment ensures compliance with widely recognized safety benchmarks while simplifying authority having jurisdiction approval processes.
Integration with Generator Control Systems
Modern generator installations function as integrated systems where transfer switches communicate bidirectionally with generator controllers, building management systems, and remote monitoring platforms. This connectivity enables sophisticated operational strategies impossible with standalone components.
Communication protocols including Modbus, BACnet, and proprietary manufacturer networks facilitate data exchange. Transfer switches transmit status information—source availability, switch position, load current, and fault conditions—while receiving commands for testing, exercising, and operational mode changes. Data center builders leverage this connectivity implementing predictive maintenance strategies based on operational analytics.
Remote monitoring capabilities prove particularly valuable for facilities with distributed generator installations or limited on-site personnel. Maintenance managers receive immediate notifications of transfer events, utility failures, or equipment anomalies enabling proactive intervention before minor issues escalate into catastrophic failures.
Frequently Asked Questions About Generator Switch Selection
What Determines Whether Manual or Automatic Transfer Switches Are Appropriate?
The decision hinges primarily on occupancy classification, staffing availability, and criticality of continuous power. Facilities with constant personnel presence and tolerance for brief outages may function adequately with manual switches. Conversely, unattended locations, life safety applications, or operations requiring immediate restoration mandate automatic transfer switches. Building codes frequently dictate minimum requirements based on occupancy classifications.
Can Existing Manual Transfer Switches Be Upgraded to Automatic Operation?
While technically feasible in certain circumstances, retrofitting manual switches with automation typically proves impractical. The control circuitry, sensing equipment, and actuation mechanisms required for automatic operation generally necessitate complete switch replacement. Facility managers contemplating such upgrades should evaluate whether new automatic transfer switch installation delivers superior long-term value compared to retrofit approaches.
How Do Transfer Switch Ratings Affect Generator Sizing?
Transfer switch ampacity ratings must accommodate maximum anticipated loads, directly influencing generator sizing requirements. Undersized switches create bottlenecks limiting power delivery regardless of generator capacity. Electrical contractors should coordinate transfer switch and generator specifications ensuring compatible ratings with adequate margins for future expansion and momentary inrush currents during motor starting or transformer energization.
Procurement Considerations for Optimal System Performance
Sourcing quality OEM replacement parts, accessories, and transfer switch components significantly impacts system reliability and longevity. Inferior components introduce failure modes compromising emergency power availability precisely when needed most. Electrical contractors and facility managers should prioritize suppliers offering genuine manufacturer parts backed by comprehensive technical support.
Fast shipping capabilities minimize downtime during emergency repairs or planned maintenance activities. Suppliers maintaining extensive inventory enable rapid deployment addressing urgent requirements without extended lead times. Competitive pricing structures ensure budgetary compliance without sacrificing quality or performance standards.
Expert technical support proves invaluable during specification development, troubleshooting procedures, and commissioning activities. Suppliers employing knowledgeable personnel familiar with diverse generator and transfer switch platforms deliver substantial value beyond mere component provision. This expertise assists engineering companies navigating complex installations while ensuring code compliance and optimal system configuration.
The selection among various types of generator switches ultimately reflects careful analysis balancing operational requirements, budgetary constraints, code compliance, and long-term reliability objectives. Whether specifying manual switches for straightforward applications or sophisticated load management systems for complex facilities, understanding the capabilities and limitations of each configuration enables informed decision-making supporting mission-critical power infrastructure.
