Ultimate Compliance Checklist NEC Code for Standby Generators
Standby generators represent critical infrastructure for facilities requiring uninterrupted power continuity. For electrical contractors and facility managers, understanding the regulatory framework governing these installations isn't merely academic—it's essential for operational safety, legal compliance, and equipment longevity. The National Electrical Code establishes comprehensive requirements that dictate every facet of standby generator installations, from conductor sizing to grounding protocols.
Navigating these technical mandates requires both methodical attention and practical expertise. This compliance checklist addresses the specific provisions that govern standby power systems, ensuring your installations meet current standards while protecting personnel and property.
Understanding Standby Generator Classification Under NEC Standards
The NEC distinguishes between legally required standby systems and optional standby systems—a differentiation that fundamentally alters installation requirements. Article 701 governs legally required standby installations mandated by municipal, state, or federal authorities for facilities where interruption would create hazards or impede rescue operations. Healthcare institutions, certain entertainment venues, and specific industrial operations fall under this classification.
Conversely, Article 702 addresses optional standby systems installed to protect data, facilitate business continuity, or prevent equipment damage. Data centers, manufacturing facilities with sensitive processes, and commercial buildings prioritizing operational reliability typically deploy optional standby configurations. This classification determines transfer equipment specifications, wiring methods, and testing protocols.
Distinguishing your system's classification early prevents costly retrofits. Engineering consultants should clarify applicable code articles during design phases, as the distinction impacts everything from overcurrent protection sizing to signage requirements.
Location and Installation Parameters for Generator Placement
Article 445 establishes spatial requirements that balance accessibility, ventilation, and protection. Generators must occupy locations providing adequate airflow for cooling and combustion while maintaining clearances from combustible materials. Minimum clearances vary based on equipment specifications, but the NEC mandates sufficient space for safe operation and maintenance activities.
Indoor installations demand robust ventilation systems removing exhaust gases and dissipating heat. The code requires exhaust systems that discharge beyond building air intakes and operable windows. For mechanical contractors, this necessitates coordination between generator placement and HVAC infrastructure to prevent carbon monoxide infiltration.
Outdoor enclosures must withstand environmental conditions while providing protection from physical damage. Weather-resistant housings should prevent moisture intrusion that compromises electrical components. Additionally, installations must maintain appropriate distances from property lines, windows, and doors as specified by local amendments to the NEC.
Fuel System Compliance and Safety Provisions
Fuel delivery systems constitute critical components requiring adherence to both NEC provisions and referenced standards like NFPA 30 and NFPA 37. Natural gas connections must incorporate automatic shutoff valves accessible for emergency operation. Piping installations demand proper sizing calculations ensuring adequate fuel delivery under full load conditions.
Diesel fuel systems introduce additional considerations. Tank installations must comply with environmental regulations regarding secondary containment and leak detection. Fill pipes and vent terminations require strategic positioning preventing spills near building openings or ignition sources.
For facilities with multiple fuel sources, switchover systems must function automatically while providing manual override capabilities. Real estate developers incorporating standby power into new construction should coordinate fuel system routing during foundation phases, as retrofitting these systems through completed structures exponentially increases costs.
Transfer Switch Requirements and Configuration
Automatic transfer switches serve as the intelligent interface between utility and generator power. NEC provisions mandate these devices prevent inadvertent paralleling of sources—a condition that endangers utility workers and damages equipment. Transfer switches must include adequate time delays allowing generator voltage and frequency stabilization before load application.
The code requires transfer equipment ratings matching or exceeding the maximum available fault current at installation points. This specification protects against catastrophic failures during fault conditions. Additionally, switches must incorporate provisions for testing under load without interrupting critical circuits—functionality essential for preventive maintenance programs.
Manual transfer switches, while less common in critical applications, must include mechanical interlocking preventing simultaneous source connection. Signage indicating switch positions and operational procedures becomes mandatory for manual configurations, as operator error presents significant hazards.
Grounding and Bonding Requirements for Generator Systems
Proper grounding establishes the foundation for electrical safety in standby installations. Article 250 requirements apply comprehensively, mandating separately derived systems receive grounding electrode connections at the generator location. This grounding electrode system must bond to the building's primary grounding infrastructure, creating an equipotential plane that mitigates voltage differentials.
Neutral conductor treatment varies based on system configuration. Separately derived systems require bonding jumpers connecting the neutral to the equipment grounding system at the transfer point. Conversely, non-separately derived systems maintain neutral continuity from utility service to generator, prohibiting additional neutral-to-ground bonds that create ground loops.
Improper grounding represents one of the most prevalent code violations in standby generator installations, potentially creating shock hazards and ground fault protection malfunctions that compromise entire electrical systems.
Engineering companies specifying generator systems should provide explicit grounding diagrams indicating bonding jumper sizing, electrode types, and connection points. This documentation proves invaluable during inspections and future modifications.
Conductor Sizing and Circuit Protection Standards
The NEC mandates conductor ampacity calculations accounting for generator nameplate ratings, ambient temperature conditions, and termination temperature limitations. Conductors must accommodate continuous loads plus intermittent loads without exceeding temperature thresholds that degrade insulation.
Overcurrent protection devices require careful coordination ensuring selective operation during fault conditions. Generator circuit breakers must carry continuous loads while providing interrupting capacity sufficient for available fault currents. Coordination studies become essential in complex installations where multiple overcurrent devices exist between the generator and load circuits.
Voltage drop considerations, while not strictly code requirements, impact system performance significantly. Facility managers should specify maximum voltage drop percentages ensuring equipment receives adequate voltage under starting and running conditions. Undersized conductors create voltage sag that prevents motor starting and damages sensitive electronics.

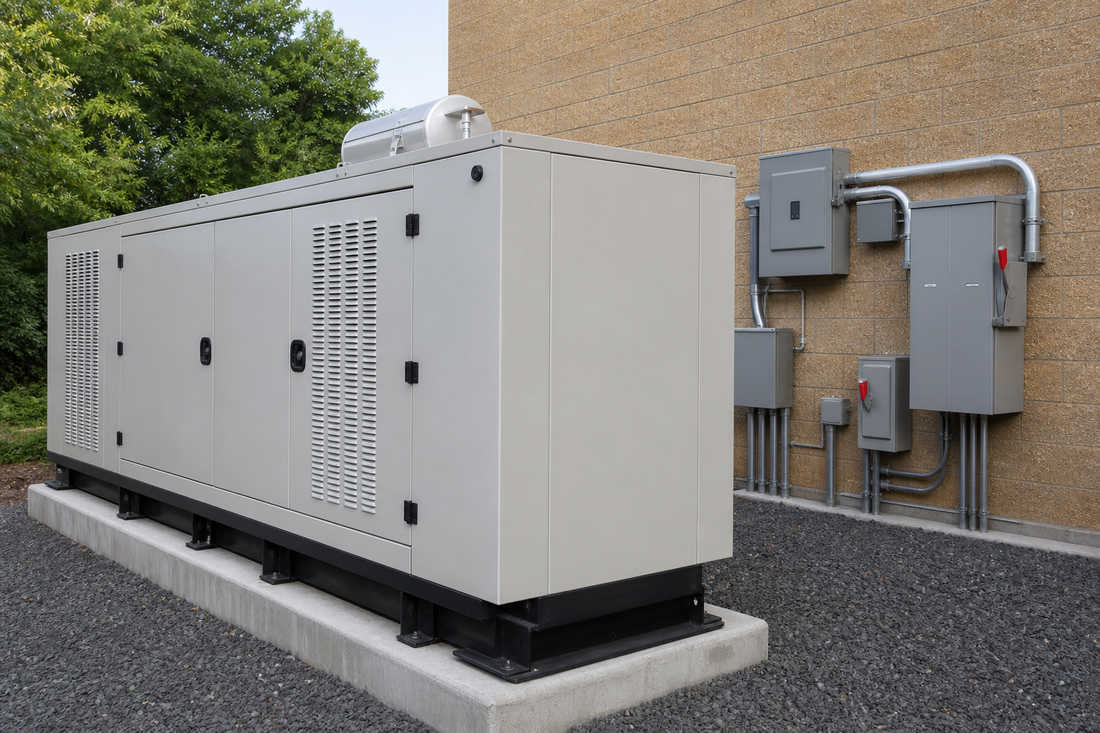

Special Provisions for Outdoor Generator Installations
Exterior installations introduce environmental factors requiring enhanced protection. All equipment must carry appropriate NEMA ratings for the installed environment, with coastal facilities demanding corrosion-resistant enclosures exceeding standard specifications. Wiring methods must prevent moisture intrusion, typically requiring rigid metallic or PVC conduit systems with sealed fittings.
Disconnecting means must remain accessible yet secured against unauthorized operation. The NEC requires disconnect visibility from the generator location, though remote emergency stops provide additional safety layers. Electrical contractors should position disconnects considering snow accumulation, vegetation growth, and other factors that might impede access.
Testing, Commissioning, and Documentation Requirements
Code compliance extends beyond installation to encompass verification procedures confirming proper operation. Testing protocols should validate automatic start sequences, transfer switch operation, voltage regulation, frequency stability, and protective device coordination. These tests must occur under loaded conditions representing actual operational scenarios.
| Test Parameter | Acceptance Criteria | Testing Frequency |
|---|---|---|
| Transfer Time | Within manufacturer specifications | Initial commissioning, annually |
| Voltage Regulation | ±10% of nominal voltage | Initial commissioning, annually |
| Frequency Stability | ±5% of nominal frequency | Initial commissioning, annually |
| Load Bank Testing | 100% rated load for 2 hours | Initial commissioning, every 3 years |
Documentation requirements include as-built drawings reflecting actual installation conditions, test reports validating performance parameters, and operations manuals providing maintenance guidance. This documentation proves essential during authority having jurisdiction inspections and subsequent facility audits.
Maintaining Ongoing Compliance Through Lifecycle Management
Code compliance represents an ongoing obligation rather than a one-time achievement. Maintenance programs must incorporate provisions from NFPA 110, which establishes testing frequencies and performance criteria for emergency and standby power systems. Monthly no-load tests verify start reliability, while annual loaded tests confirm capacity maintenance.
Facility managers should establish comprehensive maintenance schedules addressing:
- Oil and filter replacement at manufacturer-specified intervals
- Coolant system testing and antifreeze concentration verification
- Battery condition assessment including voltage, specific gravity, and load testing
- Fuel quality analysis preventing contamination and degradation
- Exhaust system inspection identifying leaks or deterioration
- Control system calibration ensuring accurate voltage and frequency regulation
These maintenance activities prevent performance degradation that causes code violations or operational failures during emergencies. Data center builders incorporating standby generation must recognize that initial code compliance means little without sustained maintenance programs preserving that status.
Common Pitfalls and Enforcement Considerations
Certain violations appear repeatedly during inspections, indicating widespread misunderstanding of code provisions. Inadequate working clearances around generators restrict maintenance activities and violate safety requirements. Missing or incorrect labeling fails to communicate hazards and operational procedures to personnel.
Another prevalent issue involves improper bonding configurations creating multiple neutral-to-ground connections. These violations compromise ground fault protection and create circulating currents that corrode equipment. Engineering consultants should emphasize grounding requirements during design reviews, as correcting these deficiencies after installation proves difficult.
Load calculations occasionally omit concurrent operating scenarios, resulting in undersized generators or transfer switches. Healthcare facilities, educational institutions, and sports venues must account for peak demand conditions rather than average loads. This requires detailed load analysis during specification development.
Frequently Asked Questions About NEC Compliance
What NEC article specifically governs standby generator installations?
Multiple articles apply depending on system type. Article 445 addresses generators themselves, Article 701 covers legally required standby systems, and Article 702 governs optional standby systems. Article 700 addresses emergency systems requiring power restoration within 10 seconds. Additionally, Article 250 grounding requirements and Article 110 workspace provisions apply universally.
How does NEC differentiate between emergency and standby generators?
Emergency systems under Article 700 must provide power automatically within 10 seconds for life safety applications like exit lighting and fire alarm systems. Standby systems tolerate longer transfer delays and serve applications where power loss creates operational or economic consequences rather than immediate life safety hazards. This distinction impacts equipment specifications, transfer times, and testing requirements.
Are load banks required for NEC compliance testing?
While the NEC itself doesn't mandate specific testing methods, referenced standards like NFPA 110 require periodic load bank testing verifying generator capacity. These tests confirm the unit delivers rated output while revealing issues like cylinder imbalance or fuel system inadequacies. For facilities with insufficient internal loads, portable load banks become necessary compliance tools that electrical contractors and maintenance managers should access regularly.
Strategic Considerations for Compliance Success
Achieving and maintaining NEC compliance for standby generators demands collaboration among multiple stakeholders. Mechanical contractors must coordinate fuel system installations with electrical contractors implementing power distribution. Engineering companies provide specifications ensuring equipment selections meet applicable code articles. Facility managers establish maintenance protocols sustaining compliance throughout equipment lifecycles.
For organizations procuring generator components—whether OEM replacement parts, automatic transfer switches, or load banks for testing—selecting suppliers with technical expertise accelerates compliance. Knowledgeable vendors help specify breakers, filters, and accessories meeting code requirements while providing documentation supporting inspection processes.
Cold storage facilities, factories, and 3D print farms increasingly recognize standby power as infrastructure essential for operational continuity. These installations must satisfy identical code provisions regardless of industry, though specific applications introduce unique considerations. Sports and entertainment venues face occupancy-based requirements, while healthcare facilities navigate additional NFPA 99 provisions governing essential electrical systems.
Ultimately, NEC compliance protects investments, personnel, and operations. The meticulous attention required during design, installation, and maintenance phases yields reliable standby power systems that function flawlessly during utility interruptions. For electrical contractors, real estate developers, and facility managers, this checklist provides the framework for achieving that reliability through comprehensive code adherence.
