Used Circuit Breakers: Quality Testing Before Installation
Procuring pre-owned electrical components demands meticulous scrutiny to ensure operational integrity and personnel safety. When electrical contractors, facility managers, and data center operators consider used circuit breakers as cost-effective alternatives to new equipment, implementing comprehensive quality testing procedures becomes non-negotiable. The economic advantages of reconditioned breakers dissolve rapidly when substandard components compromise system reliability or endanger occupants.
Understanding the rigorous verification protocols that distinguish dependable used breakers from hazardous liabilities empowers professionals to make informed procurement decisions. This examination explores the essential methodologies that safeguard installations across healthcare facilities, educational institutions, manufacturing environments, and mission-critical data centers.
The Imperative of Pre-Installation Verification
Electrical distribution systems form the circulatory network of modern infrastructure. A compromised circuit breaker represents more than a component failure—it introduces catastrophic risk vectors including arc flash incidents, cascading system failures, and potential conflagrations. Unlike cosmetic imperfections that merely affect appearance, internal degradation in reclaimed breakers manifests invisibly until thermal runaway or contact welding occurs during fault conditions.
Mechanical contractors and engineering consultants face heightened liability exposure when specifying untested secondary-market components. The proliferation of counterfeit and substandard electrical products in global supply chains necessitates verification protocols that transcend visual inspection. Dielectric strength, contact resistance, and trip characteristics require quantitative assessment through specialized instrumentation.
Comprehensive Quality Assessment Framework
Establishing confidence in reconditioned breakers demands a multi-faceted evaluation strategy. Sequential testing protocols isolate specific performance parameters, creating cumulative assurance that the device will perform as specified under real-world conditions.

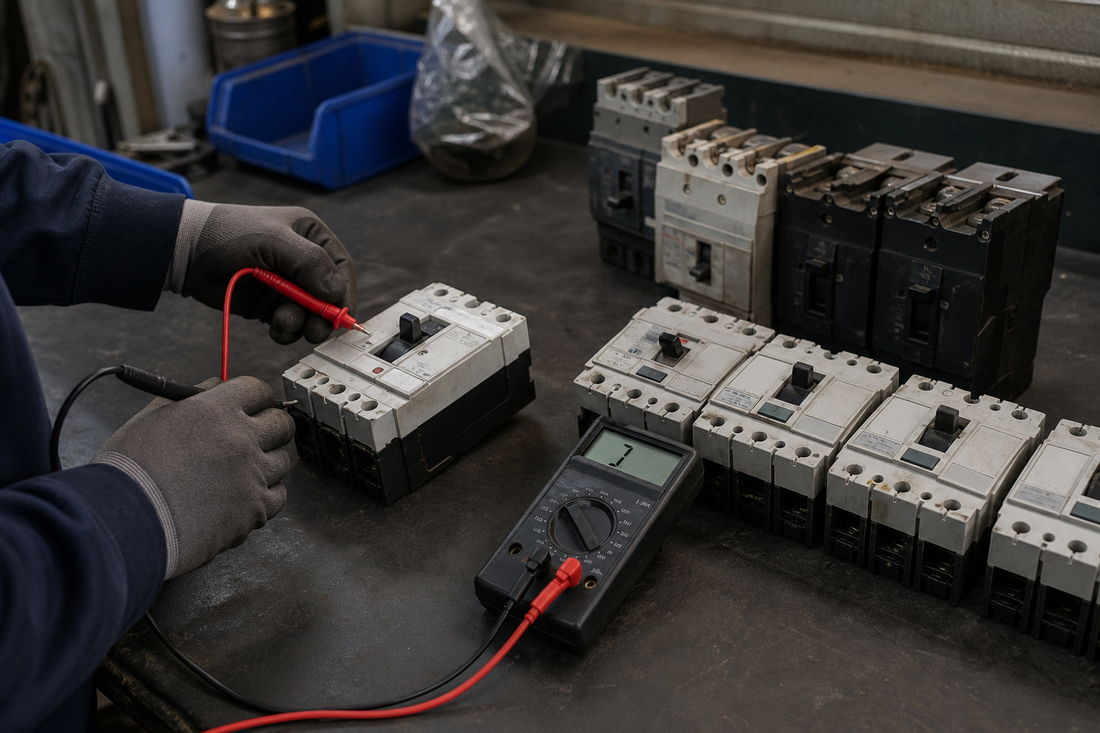

Visual and Physical Examination
Initial assessment commences with thorough visual scrutiny. Inspectors examine housing integrity for stress fractures, impact damage, or thermal discoloration indicating previous overload events. Arc chutes merit particular attention—carbon tracking or melted components signal prior fault interruption that may have compromised structural elements. Corrosion on terminals suggests moisture exposure that degrades conductive pathways.
Mechanical operation verification follows visual inspection. Operating mechanisms should exhibit smooth, positive action without binding or hesitation. Latch engagement must be crisp and definitive. Ambiguous or mushy feel during manual operation indicates worn linkages or spring fatigue that compromises interrupting capability.
Insulation Resistance Testing
Megohmmeter testing quantifies dielectric integrity between current-carrying components and ground. This non-destructive evaluation applies controlled high-voltage stress to reveal insulation degradation invisible to visual inspection. Acceptable resistance values vary by voltage rating, but measurements below manufacturer specifications indicate moisture ingress, contamination, or material deterioration.
Testing protocols typically apply voltage at 500V or 1000V for one minute, recording resistance values. Comparative measurements across phases identify inconsistencies suggesting compromised insulation in specific poles. Progressive deterioration revealed through declining resistance readings over multiple test intervals signals active degradation processes requiring component rejection.
Contact Resistance Measurement
Micro-ohmmeter testing quantifies resistance across closed contacts, revealing oxidation, pitting, or misalignment that creates localized heating. Elevated contact resistance initiates thermal cascades—increased temperature accelerates oxidation, further elevating resistance in a destructive feedback loop. Measurements exceeding manufacturer specifications by 20% typically warrant rejection or contact refurbishment.
Four-wire Kelvin testing eliminates lead resistance from measurements, providing accurate micro-ohm readings. Comparative measurements across multiple poles identify outliers indicating contact irregularities. Temperature rise calculations based on contact resistance inform load derating decisions when marginal values exist.
Trusted Sources for Pre-Tested Components
Partnering with suppliers maintaining rigorous testing standards mitigates procurement risks. Specialized providers implement comprehensive verification protocols before releasing inventory, transferring quality assurance burden from end-users to suppliers with dedicated testing infrastructure.
Organizations requiring certified used breakers benefit from accessing curated inventories where each component undergoes documented testing sequences. This approach proves particularly valuable for time-sensitive projects where procurement delays impact construction schedules or emergency replacement scenarios where immediate availability supersedes extensive in-house verification.
Advanced Electrical Testing Procedures
Beyond fundamental resistance measurements, specialized testing protocols validate operational characteristics under simulated fault conditions. These evaluations require sophisticated equipment but provide definitive performance data.
Trip Characteristic Verification
Primary injection testing applies precise current magnitudes through breaker conductors while monitoring trip response. This procedure validates that thermal and magnetic trip elements operate within specified time-current curves. Instantaneous trip thresholds typically set between 5-10 times rated current receive particular scrutiny, as degraded magnetic assemblies may exhibit delayed or failed trip response during short-circuit events.
Sequential testing at multiple current levels maps actual performance against published trip curves. Deviations exceeding manufacturer tolerances indicate calibration drift or component degradation requiring adjustment or rejection. Engineering consultants specifying breakers for coordinated protection schemes require documented trip characteristics ensuring selective coordination under fault conditions.
Timing Analysis
High-speed recording equipment captures contact separation intervals during interruption sequences. Opening time measurements validate mechanical components operate within specifications. Excessive opening times suggest spring fatigue or linkage wear that delays fault clearing, potentially compromising coordination with upstream protective devices.
Simultaneous multi-pole timing verification identifies pole-to-pole discrepancies indicating uneven wear patterns. Timing variations exceeding 2 milliseconds between poles may compromise interrupting capability during three-phase faults, as unsynchronized contact separation alters arc energy distribution across poles.
Examining Proven Solutions
Consider the practical application of these testing principles through a specific example. The Used 250 Amp Terasaki Tembreak XS250NJ Breaker represents a thoroughly evaluated component ready for immediate installation. This molded case circuit breaker undergoes comprehensive testing sequences before reaching inventory, providing documented verification of electrical and mechanical integrity.
For facility managers overseeing cold storage operations or data center builders maintaining redundant power distribution, such pre-qualified components eliminate testing bottlenecks during equipment commissioning. The documented performance characteristics support engineering submittals and inspection approvals, accelerating project timelines while maintaining quality standards.
Documentation and Traceability Requirements
Quality testing procedures generate value only when accompanied by comprehensive documentation. Test reports should enumerate specific procedures performed, equipment utilized, measured values, and acceptance criteria applied. This documentation serves multiple constituencies—design engineers validating specification compliance, inspectors verifying code conformance, and maintenance personnel establishing baseline performance data.
Traceability to original equipment manufacturers establishes provenance and enables access to technical specifications required for testing protocol development. Counterfeit components frequently lack accurate model identification or exhibit inconsistent markings, complicating specification verification. Reputable suppliers maintain acquisition records linking inventory to verified OEM sources.
Professional engineering consultants increasingly specify documentary evidence requirements in procurement specifications, recognizing that component quality extends beyond physical condition to encompass verified performance data and traceable origins.
Comparing Testing Standards
| Test Parameter | Acceptance Criteria | Rejection Indicators |
|---|---|---|
| Insulation Resistance | >100 MΩ at rated voltage | <50 MΩ or declining values |
| Contact Resistance | Within 120% of OEM spec | >150% of specification |
| Trip Timing | ±10% of published curve | >20% deviation from curve |
| Pole Synchronization | <2 ms variation | >3 ms pole-to-pole difference |
Integration With Asset Management Strategies
Maintenance managers across healthcare, education, and entertainment venues recognize that acquisition represents just one component of lifecycle cost. Used breakers accompanied by comprehensive testing documentation integrate seamlessly into predictive maintenance programs, establishing baseline data for trend analysis.
Periodic retesting at scheduled intervals tracks performance degradation, enabling condition-based replacement before failure occurs. This approach proves particularly valuable in mission-critical environments where unplanned outages generate cascading operational impacts. Sports facilities hosting televised events or manufacturing operations supporting just-in-time production cannot tolerate electrical system unreliability.
Common Quality Assessment Questions
How frequently should used breakers undergo retesting after installation?
Initial verification testing within 12 months post-installation establishes operational baseline data. Subsequent testing intervals depend on application criticality and operating environment. Data centers and healthcare facilities typically implement 3-5 year testing cycles, while less critical applications may extend intervals to 5-7 years. Harsh environments with temperature extremes, moisture, or contamination warrant more frequent assessment.
Can visual inspection alone provide adequate quality assurance?
Visual examination identifies obvious defects but cannot reveal internal degradation affecting electrical performance. Contact oxidation, insulation deterioration, and calibration drift remain undetectable without instrumented testing. Relying exclusively on visual inspection creates false confidence while leaving critical failure modes unaddressed.
What qualifications should testing personnel possess?
Technicians performing breaker testing should hold NETA certification or equivalent credentials demonstrating competency in electrical testing procedures. Familiarity with test equipment operation, interpretation of results against specifications, and understanding of acceptance criteria ensures reliable assessments. Real estate developers and facility managers should verify testing personnel credentials before accepting quality verification reports.
Procurement Decision Framework
Selecting between new and used breakers involves multifaceted analysis extending beyond initial acquisition cost. Factors warranting consideration include:
- Immediate availability requirements versus lead times for new equipment
- Budget constraints and total cost of ownership calculations
- Availability of comprehensive testing documentation from suppliers
- Warranty coverage and supplier support capabilities
- Regulatory approval requirements and inspection authority preferences
- Risk tolerance for mission-critical versus non-critical applications
Engineering companies and mechanical contractors balancing cost optimization against reliability requirements find that properly tested used breakers deliver compelling value propositions. The economic delta between new and reconditioned components funds redundant installations, expanded monitoring capabilities, or accelerated replacement cycles that enhance overall system resilience.
Ensuring Long-Term Reliability
Quality testing before installation represents just one element of comprehensive asset stewardship. Proper installation practices, appropriate application within rated parameters, and scheduled maintenance extend component service life regardless of acquisition source. Used breakers meeting stringent testing criteria and applied within design limitations deliver reliability comparable to new equipment at substantially reduced cost.
The convergence of economic pressures and equipment availability challenges positions quality-verified used breakers as pragmatic solutions across diverse applications. By implementing robust testing protocols and partnering with suppliers maintaining rigorous quality standards, electrical professionals procure cost-effective components without compromising safety or reliability.
Three-dimensional print farms, cold storage warehouses, and educational campuses all benefit from strategic integration of tested secondary-market breakers within broader equipment procurement strategies. The key differentiator separating successful implementations from problematic installations lies not in component age but in verification rigor applied before energization.
