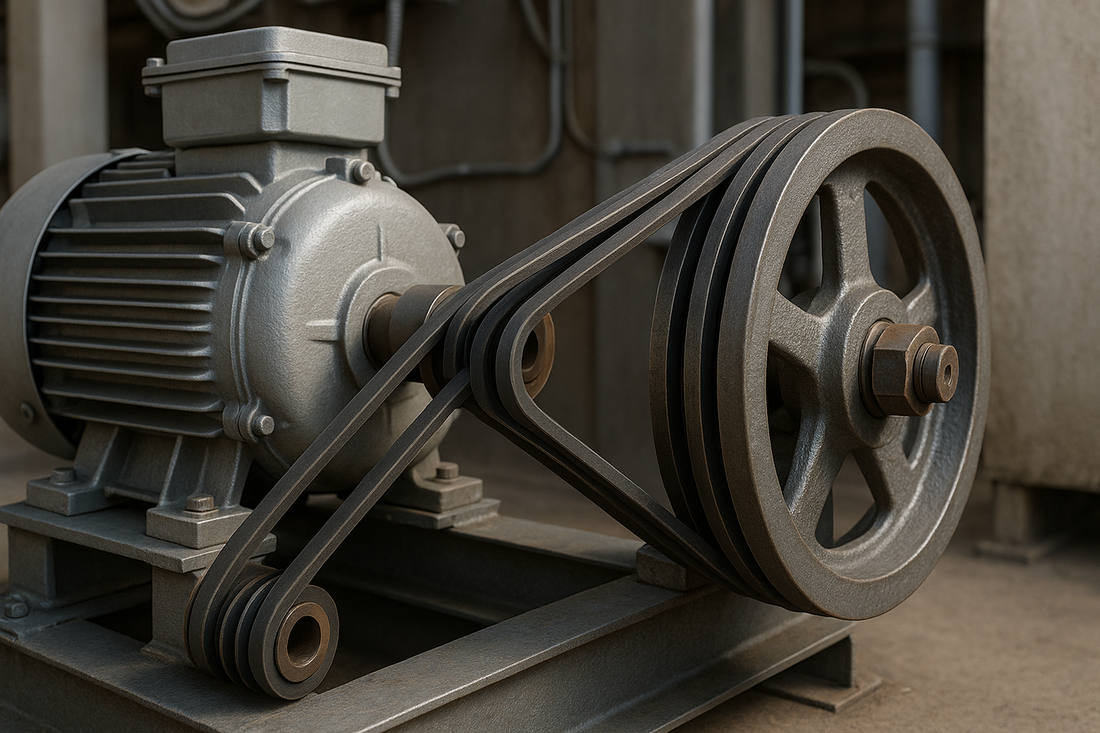

V-Belt Drive Systems: Power Transmission Best Practices
Understanding V-Belt Drive Fundamentals in Generator Systems
V-belt drive systems serve as the mechanical nexus between prime movers and alternators in countless generator configurations across industrial facilities. These elastomeric power transmission components operate through friction-based torque transfer, utilizing wedging action within sheave grooves to maintain consistent rotational force delivery. The trapezoidal cross-sectional profile creates optimal surface contact while accommodating thermal expansion and operational stress variations.
Modern generator installations rely heavily on these drive systems due to their inherent vibration dampening characteristics and ability to accommodate minor misalignments. Unlike rigid coupling mechanisms, V-belts provide a sacrificial element that protects expensive generator components from shock loads and torsional spikes during startup sequences or load transitions.
Belt Configuration Types and Applications
Classical V-belts, designated by cross-sectional dimensions, include A, B, C, D, and E profiles for varying power transmission requirements. Narrow wedge belts, identified as 3V, 5V, and 8V configurations, offer enhanced power density through increased sidewall angles and reduced slip characteristics. Cogged or notched variants provide superior flexibility around smaller diameter sheaves while maintaining heat dissipation through enhanced airflow channels.
Synchronous belt alternatives eliminate slip entirely but sacrifice the protective qualities inherent in friction-based systems. Each configuration presents distinct advantages depending on load characteristics, environmental conditions, and maintenance accessibility requirements specific to generator installations.
Critical Maintenance Protocols for Generator V-Belt Systems
Systematic maintenance protocols form the cornerstone of reliable generator operation, with belt inspection frequency determined by runtime hours, environmental exposure, and criticality classification. Visual inspections should encompass sidewall cracking, edge fraying, and tensile cord exposure indicators. Glazing phenomena, characterized by hardened contact surfaces, signals excessive slip conditions requiring immediate attention.
Tension Measurement and Adjustment Procedures
Proper belt tension maintains the delicate equilibrium between adequate grip and excessive bearing loads. Deflection testing, performed at the longest span between sheaves, should yield movement equal to 1/64 inch per inch of span length under moderate finger pressure. Electronic tension meters provide precise measurements for critical applications where mathematical calculations prove insufficient.
Over-tensioning accelerates bearing wear while creating premature belt fatigue through excessive flexural stress. Under-tensioning permits slip, generating heat buildup and rapid deterioration of friction surfaces. The optimal tension zone ensures maximum service life while maintaining reliable power transmission throughout varying load conditions.
Professional-Grade Replacement Solutions
When maintenance reveals belt deterioration beyond acceptable parameters, selecting appropriate replacement components becomes paramount. The Kohl 230611924 V-Ripped Belt KD27V12 represents a precision-engineered solution specifically designed for demanding generator applications. This belt features enhanced heat resistance properties and superior tensile strength characteristics essential for continuous-duty generator installations.
Manufactured to exacting OEM specifications, this replacement belt ensures optimal fit and performance compatibility with existing sheave systems. The advanced rubber compound formulation provides extended service intervals while maintaining consistent power transmission efficiency throughout its operational lifecycle.
Sheave Alignment and Wear Assessment
Misaligned sheaves represent a primary cause of premature belt failure, creating uneven loading conditions and accelerated edge wear patterns. Laser alignment tools provide micron-level precision for critical installations, while straightedge methods suffice for standard applications. Angular misalignment exceeding 0.5 degrees per foot of center distance creates significant side loading forces.
Sheave groove wear manifests through dimensional changes that alter belt seating geometry. Groove gauges measure width and angle specifications against manufacturer tolerances. Excessive wear creates belt bottoming conditions, reducing effective diameter and compromising power transmission capabilities.
"Proper sheave maintenance extends belt life by up to 300% while reducing unscheduled downtime incidents significantly. The investment in precision measurement tools pays dividends through reduced replacement costs and enhanced system reliability." - Industrial Power Transmission Analysis
Environmental Impact Considerations
Ambient temperature fluctuations affect belt material properties and dimensional stability. High-temperature environments accelerate polymer degradation while extreme cold conditions reduce flexibility and increase brittleness susceptibility. Humidity variations influence dimensional stability and promote corrosion of metallic drive components.
Contamination from airborne particulates, chemical vapors, or fluid exposure creates additional degradation mechanisms. Protective enclosures or specialized belt compounds may be necessary for harsh environmental conditions common in industrial generator installations.
Troubleshooting Common Drive System Issues
Systematic diagnostic approaches identify root causes rather than addressing symptomatic manifestations. Belt squealing typically indicates insufficient tension, misalignment, or glazed contact surfaces requiring specific corrective actions. Excessive vibration may result from belt joint separation, uneven tensioning across multiple belts, or sheave eccentricity issues.
Performance Monitoring Techniques
Infrared thermography reveals heat patterns indicating slip conditions, bearing problems, or misalignment issues before catastrophic failures occur. Temperature differentials between drive and driven sheaves provide quantitative slip assessment data. Vibration analysis identifies frequency signatures associated with belt defects or system imbalances.
| Symptom | Probable Cause | Corrective Action |
|---|---|---|
| Belt Squealing | Insufficient Tension | Adjust tension within specifications |
| Rapid Wear | Misalignment | Realign sheaves to manufacturer tolerances |
| Belt Turnover | Excessive Tension | Reduce tension and inspect for damage |
| Premature Cracking | Environmental Factors | Evaluate operating conditions and material compatibility |
Preventive Maintenance Scheduling and Documentation
Comprehensive maintenance scheduling incorporates runtime hours, calendar intervals, and condition-based triggers. Critical standby generators require more frequent inspections than prime power installations due to irregular operation patterns and potential extended idle periods. Documentation systems track belt installation dates, tension measurements, and environmental conditions.
Predictive maintenance technologies enable condition-based replacement scheduling rather than arbitrary time intervals. This approach optimizes component utilization while maintaining reliability standards essential for mission-critical applications.
Inventory Management Best Practices
Strategic spare parts inventory balances carrying costs against availability requirements. Critical applications warrant on-site spare belt inventory with appropriate storage conditions protecting against ozone exposure, temperature extremes, and mechanical damage. Rotation procedures ensure oldest stock utilization while maintaining fresh inventory reserves.
- Store belts in original packaging until installation
- Maintain temperature-controlled environment between 32°F and 100°F
- Avoid exposure to direct sunlight or fluorescent lighting
- Implement first-in-first-out rotation protocols
- Document storage dates for inventory management
Understanding these comprehensive maintenance principles ensures optimal generator performance while minimizing unscheduled downtime incidents. Professional implementation of these practices delivers measurable improvements in system reliability and operational cost efficiency across diverse industrial applications.
