V-Belt Tension Adjustment: Prevent Power Transmission Failures
Generator downtime caused by v-belt failures represents one of the most preventable yet costly maintenance oversights in power transmission systems. Proper v-belt tension adjustment stands as the cornerstone of reliable generator operation, directly influencing efficiency, component longevity, and operational continuity. For facility managers overseeing critical infrastructure—from data centers to healthcare institutions—understanding the nuances of belt tensioning transcends routine maintenance; it becomes a strategic imperative.
The mechanics of power transmission through v-belt systems demand precise calibration. Insufficient tension permits slippage, generating heat and accelerating wear. Conversely, excessive tension imposes undue stress on bearings, shafts, and the belt itself, precipitating premature failure. This delicate equilibrium requires methodical attention and technical acumen.
Understanding V-Belt Tension Fundamentals
V-belt tension adjustment for generators operates on principles of friction and force distribution. The trapezoidal cross-section of v-belts creates a wedging action within sheave grooves, amplifying frictional contact beyond what flat belts could achieve. This geometric advantage, however, demands exacting tension parameters to function optimally.
Belt deflection serves as the primary diagnostic metric for tension assessment. Industry standards typically specify deflection measurements between one-half to one inch per foot of span length when applying moderate thumb pressure at the belt's midpoint. This tangible measurement provides immediate feedback on tension adequacy without requiring specialized instrumentation, though precision tools yield superior accuracy.
Temperature fluctuations, operational vibrations, and natural material relaxation conspire to alter initial tension settings over time. New belts exhibit particularly pronounced stretch during the first operational hours, necessitating re-tensioning after approximately 24 hours of runtime. This break-in period represents a critical intervention window that many maintenance protocols unfortunately overlook.
Selecting Quality Replacement Components
The longevity and reliability of your tension adjustment efforts hinge fundamentally on component quality. Substandard belts manufactured with inferior elastomers or inconsistent cross-sections sabotage even meticulous tensioning procedures. OEM specifications should govern replacement part selection, ensuring dimensional compatibility and material integrity.
Kohl GM77161 V-Belt: A Precision Solution
When addressing v-belt tension adjustment needs for generator applications, the Kohl GM77161 V-Belt emerges as an exemplary OEM replacement component engineered for demanding power transmission environments. This belt demonstrates the manufacturing precision necessary for maintaining consistent tension characteristics throughout its service life.
The GM77161 features construction specifications that minimize elongation under operational loads, reducing the frequency of tension readjustments. Its elastomer formulation resists thermal degradation and maintains flexibility across temperature extremes—critical attributes for generators operating in variable environmental conditions. For electrical contractors and facility managers responsible for backup power systems, selecting components like the GM77161 eliminates a significant variable in the maintenance equation.
This particular belt suits multiple generator configurations, offering versatility for maintenance departments managing diverse equipment inventories. Its dimensional accuracy ensures proper seating within sheave grooves, maximizing the wedging effect essential for efficient power transmission at correctly adjusted tension levels.
Diagnostic Indicators of Improper Tension
Recognition of tension-related pathologies enables proactive intervention before catastrophic failure occurs. Visual inspection reveals telltale signatures: glazed belt sidewalls indicate slippage from insufficient tension, while cracking perpendicular to the belt length suggests over-tensioning and premature fatigue.
Auditory cues provide equally valuable diagnostic information. Squealing during startup or load transitions unmistakably signals inadequate tension allowing belt slip. Conversely, bearing rumble or whine may indicate excessive tension loading support structures beyond design parameters. These acoustic phenomena warrant immediate investigation.
A properly tensioned v-belt operates in near silence, transferring power efficiently without thermal buildup or component stress—the hallmark of maintenance excellence.
Thermal imaging elevates diagnostic capabilities substantially. Infrared cameras detect hotspots on pulleys, belts, and bearings that precede visible wear. Temperature differentials exceeding 20 degrees Fahrenheit between drive and driven pulleys often correlate with tension discrepancies affecting load distribution.
Step-by-Step Tension Adjustment Methodology
Systematic tension adjustment begins with complete system shutdown and lockout/tagout procedures—non-negotiable safety protocols for maintenance personnel. Once secured, visual inspection of belt condition, sheave alignment, and wear patterns informs subsequent adjustment strategy.

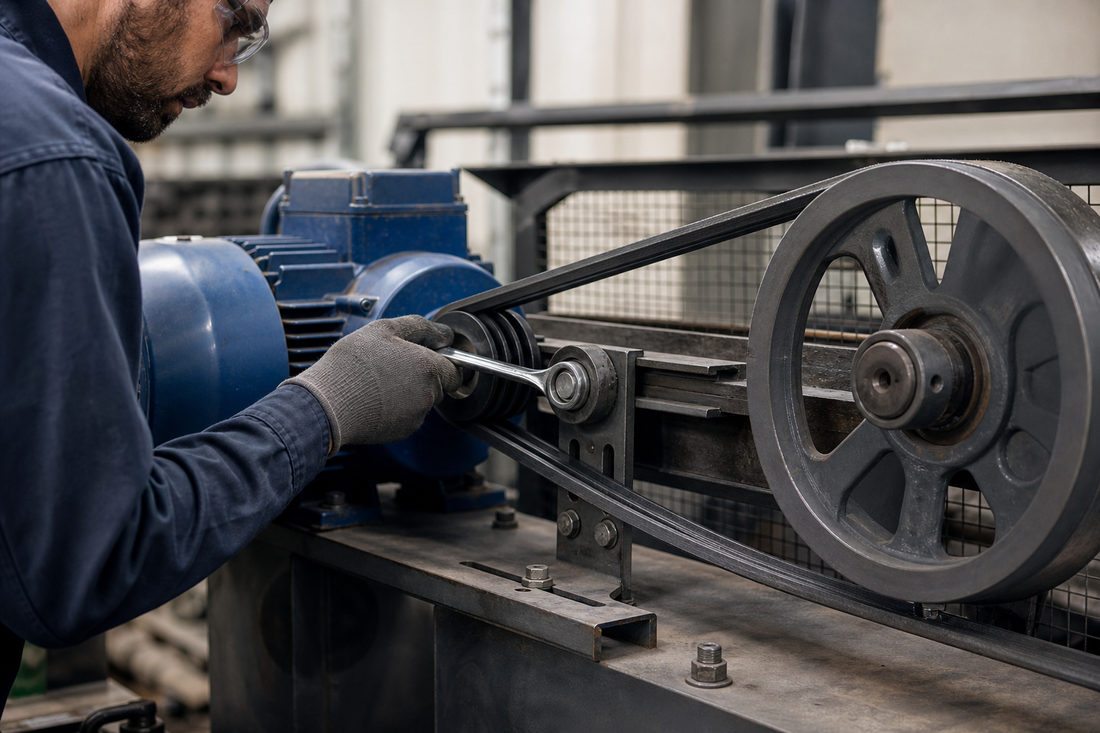

Loosen the motor mounting bolts sufficiently to permit lateral movement while maintaining positional stability. The adjustment mechanism varies by installation—sliding bases, pivoting mounts, or jackscrew assemblies each require specific techniques. Incremental movements prove superior to dramatic repositioning, allowing gradual tension increases with intermediate measurement.
Apply the deflection test at the belt span's center point between pulleys. Depress the belt with approximately 10 pounds of force—comparable to firm thumb pressure—and measure the resulting deflection. Compare this measurement against manufacturer specifications, typically ranging from 1/64 inch deflection per inch of span length. Iteratively adjust and remeasure until achieving target values.
Following adjustment, rotate the drive system manually through several complete revolutions, verifying smooth operation without binding or irregular resistance. This manual rotation often reveals misalignment issues invisible during static inspection. Retighten motor mounting hardware to specified torque values, ensuring positional stability under operational loads.
Common Mistakes That Accelerate Failures
Over-tensioning represents the most prevalent error in v-belt maintenance. The misconception that tighter always equates to better persists despite engineering evidence to the contrary. Excessive tension exponentially increases bearing loads—doubling tension can triple bearing stress—precipitating premature failure of these critical components.
Mixing belts of different ages or manufacturers within multi-belt drives creates load imbalances. Dimensional variations, even within tolerance ranges, cause uneven tension distribution. Matched belt sets should always replace failed members in multiple-belt applications, ensuring uniform load sharing.
Neglecting sheave condition undermines tension adjustment efficacy. Worn grooves with widened profiles or polished surfaces cannot properly grip belt sidewalls regardless of tension settings. Sheave inspection and replacement must accompany belt service to ensure system integrity.
Establishing Proactive Maintenance Intervals
Tension verification should occur on defined schedules commensurate with operational intensity. Critical standby generators warrant monthly inspection, while continuously operating systems benefit from bi-weekly assessment. Documentation of measurements creates trending data revealing abnormal relaxation rates that signal impending component failure.
| Application Type | Inspection Frequency | Re-tension Threshold |
|---|---|---|
| Emergency Standby Generators | Monthly | 10% deflection increase |
| Prime Power Generators | Bi-weekly | 7% deflection increase |
| Continuous Duty Systems | Weekly | 5% deflection increase |
Environmental factors necessitate schedule modifications. Installations subjected to extreme temperatures, corrosive atmospheres, or excessive vibration require abbreviated intervals. Data center environments with stringent uptime requirements justify more conservative inspection protocols despite seemingly benign conditions.
Advanced Tensioning Technologies
Sonic tension meters revolutionize belt tensioning by measuring natural frequency vibrations. These instruments detect resonant frequencies that correlate directly with tension levels, providing quantitative measurements superior to deflection methods. The technology eliminates subjective interpretation, particularly valuable for training less experienced technicians.
Automatic tensioning systems represent the apex of belt drive technology for critical applications. Spring-loaded or pneumatic tensioners maintain constant force regardless of belt stretch or thermal expansion. While representing higher initial investment, these systems dramatically reduce maintenance labor and virtually eliminate tension-related failures.
Predictive maintenance platforms incorporating vibration analysis, thermography, and operational data analytics enable condition-based servicing. These systems identify developing issues before traditional symptoms manifest, optimizing maintenance timing and resource allocation. For facility managers overseeing expansive generator fleets, such technologies deliver substantial operational advantages.
Frequently Asked Questions
How often should v-belt tension be checked on backup generators?
Monthly inspection represents the minimum standard for emergency standby units. Following any extended runtime or load testing, immediate post-operation checks verify that operational stresses haven't compromised tension settings. New belt installations require re-tensioning after the first 24 hours of accumulated runtime to compensate for initial stretch.
Can v-belts be re-tensioned indefinitely?
Belt geometry imposes finite adjustment limits. Once motor repositioning reaches the extreme end of adjustment range, belt replacement becomes necessary rather than forcing compromised positions. Additionally, belts exhibiting cracking, glazing, or fraying require immediate replacement regardless of remaining adjustment capacity—tension correction cannot remediate material degradation.
What tension measurement tools provide the best accuracy?
Sonic tension meters deliver superior precision compared to deflection gauges, particularly for spans exceeding 24 inches where deflection measurements become less reliable. These instruments measure belt natural frequency, providing quantitative tension values independent of operator technique. For facilities maintaining multiple generators, this investment yields consistency across maintenance teams.
Integrating Tension Management Into Comprehensive Maintenance
V-belt tension adjustment exists within a broader maintenance ecosystem. Sheave alignment, bearing condition, and drive component wear all interact with tension parameters. Holistic evaluation identifies cascading issues where misalignment accelerates belt wear, prompting repeated re-tensioning that masks underlying problems.
- Verify sheave alignment within 0.5 degrees and 1/8 inch offset tolerances
- Inspect bearing play and lubrication condition during tension service
- Document belt temperatures during operation to establish baseline data
- Maintain detailed service logs tracking tension measurements and adjustment dates
- Coordinate belt replacement with bearing and sheave renewal for comprehensive overhauls
For engineering consultants specifying generator systems and facility managers executing maintenance programs, understanding v-belt tension adjustment transcends mechanical aptitude. It represents a commitment to operational excellence, cost containment through preventive action, and reliability assurance for critical power infrastructure. The modest investment in proper tensioning procedures yields disproportionate returns in equipment longevity and uninterrupted service—outcomes that define maintenance success in mission-critical environments.
