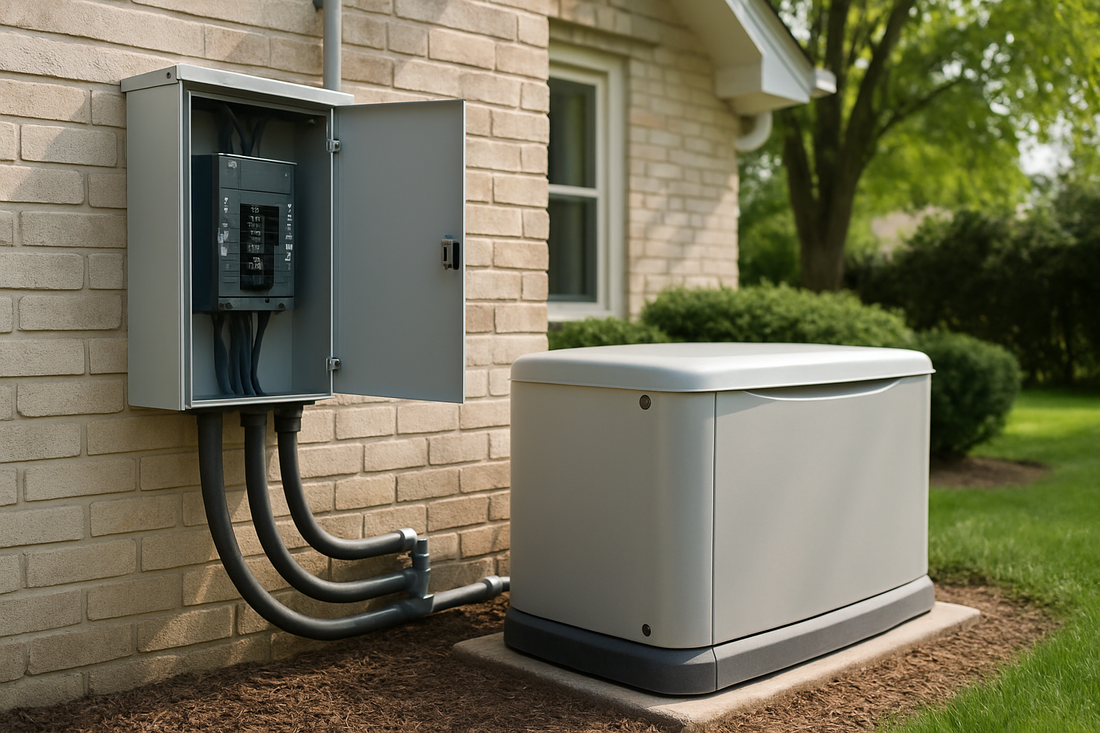

Why Your Backup Power Needs An Automatic Transfer Switch ATS
Understanding Automatic Transfer Switch Technology
An automatic transfer switch (ATS) represents the quintessential nexus between utility power and backup generation systems. This sophisticated electrical apparatus monitors incoming utility voltage continuously, detecting anomalies such as voltage sags, frequency deviations, or complete blackouts. When primary power falters, the ATS orchestrates a seamless transition to standby generation without manual intervention.
The intricate circuitry within an ATS encompasses voltage sensing relays, time delay mechanisms, and robust switching contacts designed to handle substantial electrical loads. Modern units incorporate microprocessor-based controls that provide granular monitoring capabilities and programmable parameters. These intelligent systems can differentiate between momentary utility disturbances and sustained outages, preventing unnecessary generator starts.
Core Components and Operational Mechanics
The heart of any ATS lies in its transfer mechanism, typically utilizing either mechanical contactors or solid-state switching technology. Mechanical contactors employ spring-loaded mechanisms with silver-tungsten contacts capable of interrupting fault currents safely. Solid-state variants leverage silicon-controlled rectifiers (SCRs) or insulated-gate bipolar transistors (IGBTs) for faster switching speeds and enhanced reliability.
Control logic boards serve as the cerebral cortex of the system, processing input signals from voltage monitors, frequency detectors, and phase sequence relays. These boards execute predetermined algorithms to evaluate power quality parameters against established thresholds. When utility power deviates beyond acceptable limits, the control sequence initiates generator starting protocols while simultaneously preparing transfer circuits.
Critical Applications Across Industries
Healthcare facilities demand unwavering power continuity for life-support equipment, surgical suites, and pharmaceutical storage systems. An ATS ensures instantaneous power restoration, preventing catastrophic consequences during medical procedures. The National Fire Protection Association (NFPA) 99 standard mandates specific transfer times for essential electrical systems in healthcare environments, making ATS deployment non-negotiable.
Data centers represent another mission-critical application where millisecond disruptions can cascade into substantial financial losses. Modern hyperscale facilities incorporate multiple ATS units in redundant configurations, creating fault-tolerant power architectures. These installations often feature static transfer switches that achieve transfer times measured in microseconds rather than seconds.
Cold storage facilities and food processing operations rely on ATS technology to maintain temperature-controlled environments. Power interruptions can compromise entire product inventories, making automatic transfer capability essential for operational continuity and regulatory compliance.
Industrial Manufacturing Requirements
Manufacturing environments, particularly 3D printing farms and precision machining operations, require consistent power quality to maintain production schedules. Voltage fluctuations can disrupt complex manufacturing processes, resulting in material waste and equipment damage. ATS units provide the necessary power conditioning and transfer capabilities to protect sensitive industrial equipment.
Educational institutions increasingly depend on digital infrastructure for remote learning capabilities and administrative functions. Campus-wide ATS installations ensure uninterrupted operation of HVAC systems, security networks, and telecommunications equipment during utility outages.
Technical Specifications and Selection Criteria
Amperage ratings constitute the primary specification when selecting ATS equipment. Common residential units range from 100 to 400 amperes, while commercial installations may require units rated for 1000 amperes or higher. Voltage configurations include single-phase 120/240V systems and three-phase 208V, 480V, or 600V installations depending on facility requirements.
Transfer time specifications vary significantly based on application requirements and switching technology. Standard mechanical ATS units typically achieve transfer times between 10-30 seconds, while delayed transition types may extend to several minutes to prevent generator paralleling with utility power. Critical applications often necessitate faster transfer times, driving adoption of static or hybrid switching technologies.
Environmental and Safety Considerations
| Parameter | Standard Rating | Critical Application |
|---|---|---|
| Operating Temperature | -20°C to +70°C | -40°C to +85°C |
| Humidity Rating | 0-95% Non-condensing | 0-100% with condensation |
| Altitude Derating | Up to 2000m | Up to 4000m |
| Seismic Rating | Zone 1 | Zone 4 with anchorage |
Enclosure ratings play a crucial role in outdoor installations or harsh industrial environments. NEMA 3R enclosures provide weather protection for exterior mounting, while NEMA 4X stainless steel variants offer superior corrosion resistance in chemical processing facilities.
Integration Challenges and Solutions
Coordinating ATS operation with existing electrical infrastructure requires careful analysis of short-circuit current ratings and selective coordination studies. Upstream and downstream protective devices must maintain proper coordination to ensure fault isolation without nuisance tripping. This becomes particularly complex in facilities with multiple ATS units and parallel generation sources.
Communication protocols enable remote monitoring and control capabilities essential for unmanned facilities. Modern ATS units incorporate Ethernet connectivity, Modbus RTU interfaces, and SNMP compatibility for integration with building management systems. These communication pathways facilitate predictive maintenance strategies and real-time performance monitoring.
Maintenance and Testing Protocols
Regular exercising of ATS equipment prevents contact oxidation and ensures reliable operation during actual outages. Monthly transfer tests verify proper switching sequences and timing parameters. Comprehensive annual inspections should include contact resistance measurements, insulation testing, and calibration verification of voltage and frequency sensing circuits.
- Visual inspection of control wiring and connections
- Verification of generator starting and stopping sequences
- Testing of emergency stop and manual override functions
- Calibration of time delay settings and voltage thresholds
- Documentation of transfer times under various load conditions
Frequently Asked Questions
What factors determine ATS sizing requirements?
ATS sizing depends on connected load calculations, starting current requirements for motors, and future expansion plans. Electrical contractors must consider both continuous current ratings and short-time withstand capabilities. Consulting load analysis should account for non-linear loads and harmonic content that may affect sizing decisions.
How do weather conditions affect ATS performance?
Extreme temperatures can impact switching contact performance and electronic component reliability. Cold weather may require auxiliary heating elements to maintain optimal operating temperatures. Humidity and condensation pose risks to control circuitry, necessitating proper enclosure selection and ventilation design.
Lightning strikes and electrical storms can induce transient voltages that damage sensitive ATS components. Surge protection devices integrated into ATS designs provide essential protection against these atmospheric disturbances, particularly important for outdoor installations.
